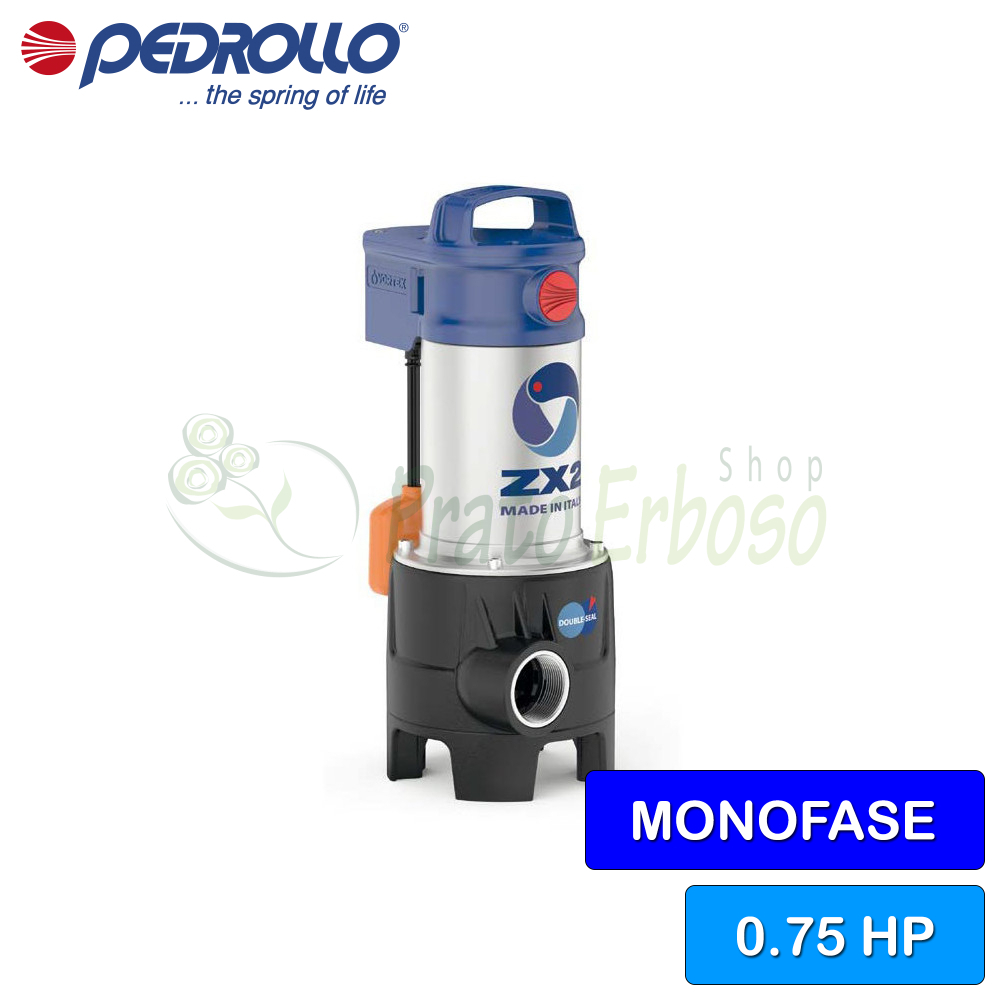

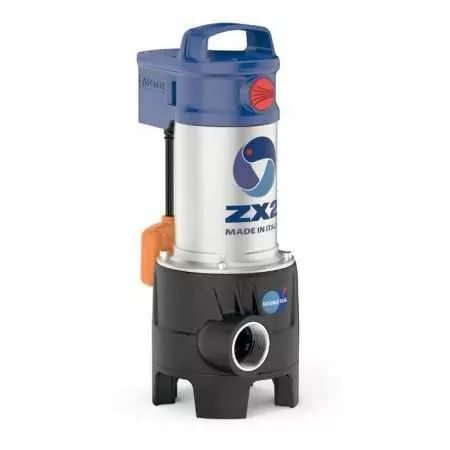

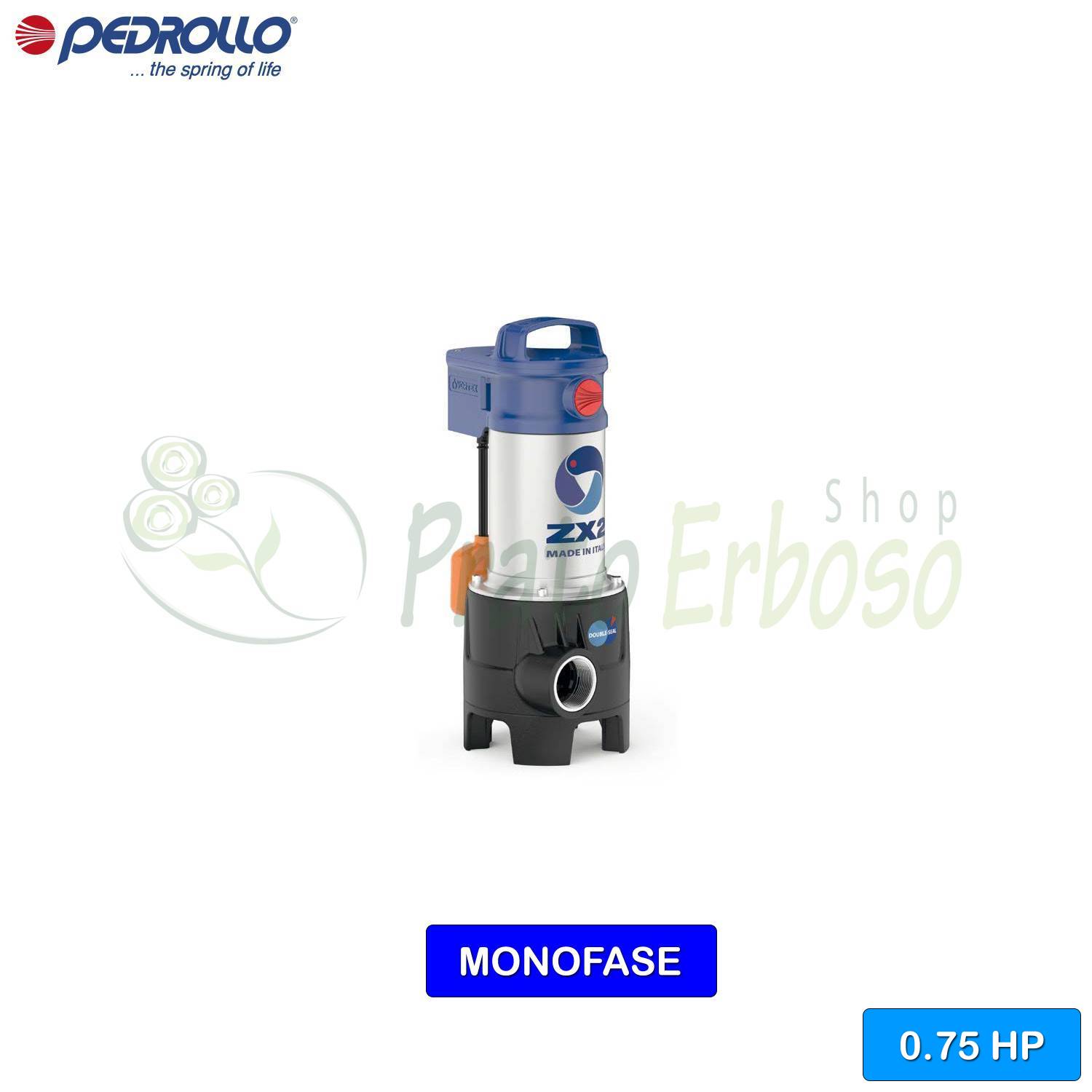

ZXm 2/30-GM (10m) - 0.75 HP VORTEX submersible electric pump for dirty water
Flow rate up to 320 l/min (19.2 m³/h). Head up to 13 m. 0.55 kW (0.75 HP) motor. 10-meter cable with Schuko plug.
WITH MAGNETIC FLOAT
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Friday 20 February - Monday 23 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Friday 20 February - Monday 23 February |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Friday 20 February - Monday 23 February |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 20 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Friday 20 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Friday 20 February - Monday 23 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 20 February - Monday 23 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Friday 20 February - Monday 23 February
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 20 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Friday 20 February
The ZXm 2/30-GM submersible electric pump from the ZXm 2-GM series by Pedrollo guarantees great performance, quality and durability.
Recommended for draining dirty water containing solids up to 30 millimetres in diameter.
Suitable for domestic and civil installations for the evacuation of waste water.
The ZXm 2/30-GM is equipped with a vortex impeller which, thanks to its particular geometry, guarantees safe operation against clogging.
Pedrollo created the product with materials such as technopolymer and AISI 304 and 431 stainless steel for a solid and robust result.
The magnetic float allows installation even in small spaces.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 4
- Capacitor
- 20 µF 450 VL
- Delivery mouth
- 1" 1/2
- Pump body
- Technopolymer
- Impeller
- Technopolymer
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 25
- Max. flow rate (l./min.)
- 320
- Min. head (m.)
- 2
- Max. head (m.)
- 13
- Cable length (m.)
- 10
- Jobs
- slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 41.2
- Width (cm)
- 17.1
- Weight (Kg)
- 10.8
- Warranty (years)
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Reinforced technopolymer |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
