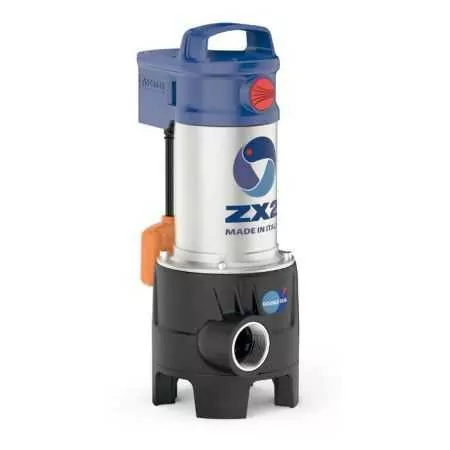

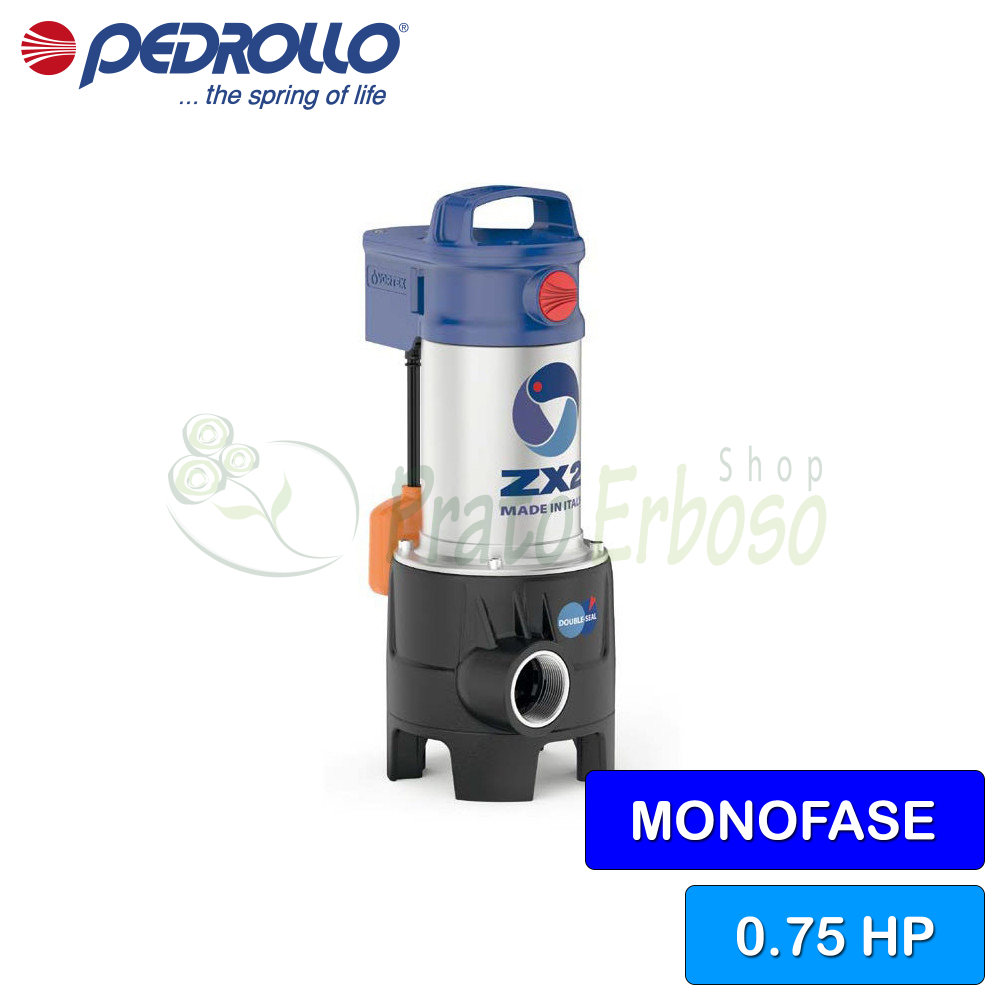

ZXm 2/40-GM (5m) - 0.75 HP VORTEX submersible electric pump for dirty water
Flow rate up to 400 l/min (24 m³/h). Head up to 11.5 m. 0.55 kW (0.75 HP) motor. 5 m cable with Schuko plug.
WITH MAGNETIC FLOAT
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Friday 20 February - Monday 23 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Friday 20 February - Monday 23 February |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Friday 20 February - Monday 23 February |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 20 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Friday 20 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Friday 20 February - Monday 23 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 20 February - Monday 23 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Friday 20 February - Monday 23 February
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 20 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Friday 20 February
The ZXm 2/40-GM submersible electric pump from the ZXm 2-GM series is useful for the evacuation of dirty water.
Recommended for draining wastewater containing solids up to 40 millimetres in diameter.
The vortex impeller, with which the ZXm 2/40-GM is equipped, guarantees safe operation against clogging thanks to its geometry.
It can be installed up to 5 meters below the water level. For continuous operation, the ZXm 2/40-GM requires a minimum immersion depth of 275 mm.
The electric pump is solid, robust, and built to last thanks to the use of cast iron and stainless steel.
The magnetic float allows installation even in small spaces.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 4
- Capacitor
- 20 µF 450 VL
- Delivery mouth
- 1" 1/2
- Pump body
- Technopolymer
- Impeller
- Technopolymer
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 25
- Max. flow rate (l./min.)
- 400
- Min. head (m.)
- 2
- Max. head (m.)
- 11.5
- Cable length (m.)
- 5
- Jobs
- slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 42.2
- Width (cm)
- 17.1
- Weight (Kg)
- 10.8
- Warranty (years)
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Reinforced technopolymer |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
Reviews (1) - Review moderation
Ne abbiamo installate 4 nel condominio, usate come impianto risalita acque piovane. Come portata sono fantastiche. Svuotano i pozzetti in un batter d'occhio portando 5-6m più in alto le acque nelle fognature comunali. Le abbiamo prese per un impianto comandato da quadro elettrico per il funzionamento in alternanza e con galleggianti ad hoc (bypassato il galleggiante di serie). Darei 5 stelle ma son costretto a toglierne una perché di tanto in tanto il galleggiante magnetico di serie non chiamava la pompa nonostante fosse in alto. I primi giorni infatti senza quadro lo notavamo su 4 pompe su 4. Nel nostro caso nessun problema ma se fosse stato per un "uso di serie" ahi ahi ahi...
Compare with Similar Products
 ZXm 2/40-GM (5m) - 0.75 HP VORTEX submersible electric pump for dirty waterThis product Flow rate up to 400 l/min (24 m³/h). Head up to 11.5 m. 0.55 kW (0.75 HP) motor. 5 m cable with Schuko plug. WITH MAGNETIC FLOAT |  ZXm 2/30-GM (5m) - 0.75 HP VORTEX submersible electric pump for dirty waterFlow rate up to 320 l/min (19.2 m³/h). Head up to 13 m. 0.55 kW (0.75 HP) motor. 5-meter cable with Schuko plug. WITH MAGNETIC FLOAT | |
|---|---|---|
| Price | Price €450.18 -42% €261.10 | Price €442.86 -42% €256.86 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 0.55 | Power (Kw) 0.55 |
| Power (HP) | Power (HP) 0.75 | Power (HP) 0.75 |
| Absorption at 230V (A) | Absorption at 230V (A) 4 | Absorption at 230V (A) 4 |
| Capacitor | Capacitor 20 µF 450 VL | Capacitor 20 µF 450 VL |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 |
| Pump body | Pump body Technopolymer | Pump body Technopolymer |
| Impeller | Impeller Technopolymer | Impeller Technopolymer |
| Number of impellers | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 25 | Minimum flow rate (l./min.) 25 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 400 | Max. flow rate (l./min.) 320 |
| Min. head (m.) | Min. head (m.) 2 | Min. head (m.) 2 |
| Max. head (m.) | Max. head (m.) 11.5 | Max. head (m.) 13 |
| Cable length (m.) | Cable length (m.) 5 | Cable length (m.) 5 |
| Jobs | Jobs slightly dirty waters | Jobs slightly dirty waters |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 42.2 | Height (cm) 41.2 |
| Width (cm) | Width (cm) 17.1 | Width (cm) 17.1 |
| Weight (Kg) | Weight (Kg) 10.8 | Weight (Kg) 10.8 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 |
