-42%

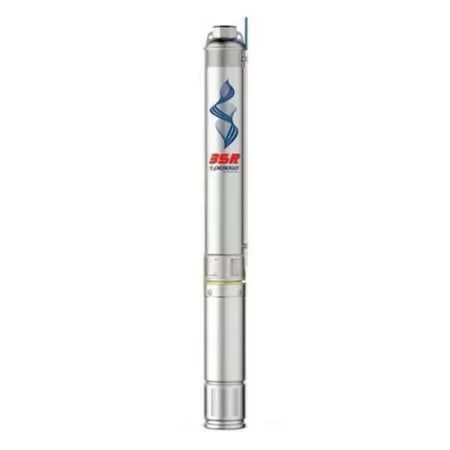

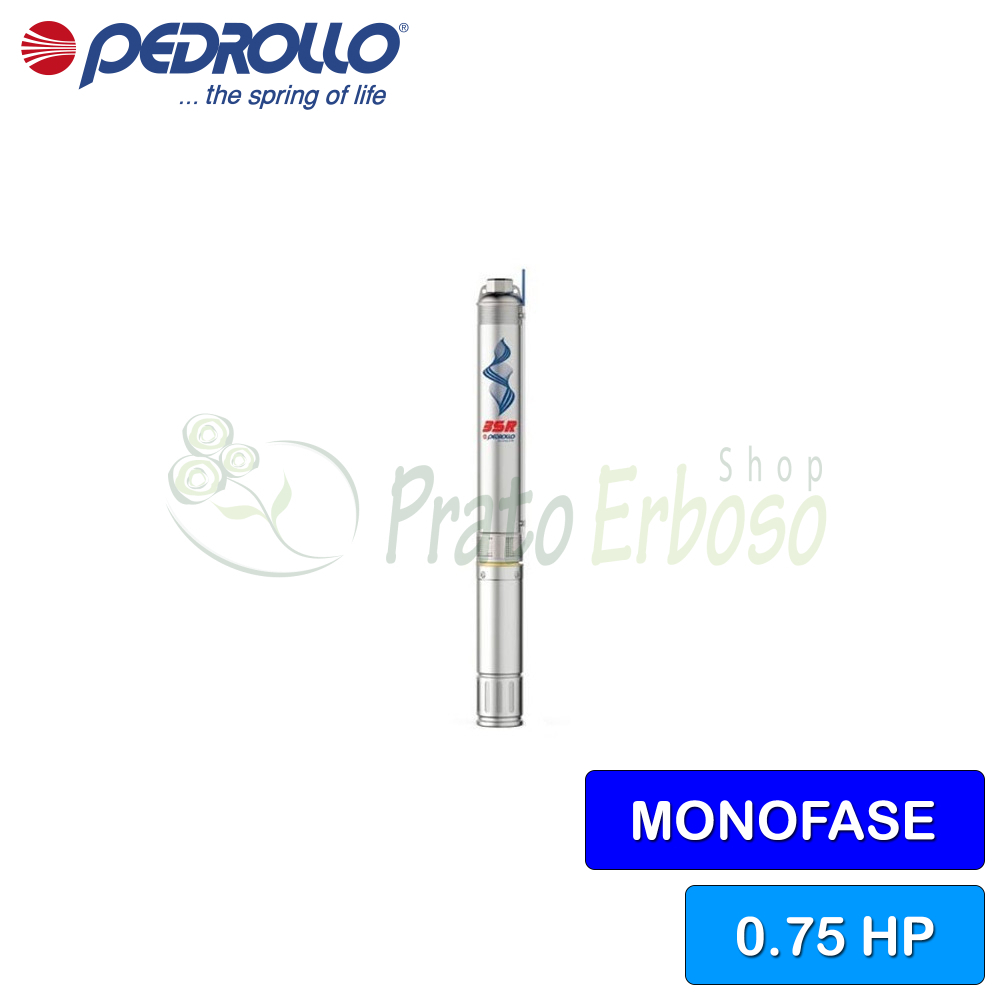

3SRm 2/21 - 0.75 HP single-phase submersible electric pump
Flow rate up to 50 l/min (2.7 m³/h). Head up to 84 meters. 0.55 kW (0.75 HP) motor.
Variants:
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Friday 10 July - Monday 13 July |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Friday 10 July - Monday 13 July |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Friday 10 July - Monday 13 July
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 10 July - Monday 13 July
×
There are no reviews yet
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The 3SRm 2/21 submersible electric pump from the 3SR series by Pedrollo is recommended for domestic and civil installations.
It can pump clean water with sand content up to 150 grams per cubic meter.
Collation can be carried out, using a special cable, up to 100 metres below the water level, exclusively vertically.
Compact and lightweight, the 3SRm 2/21 can be easily installed in wells 3 inches or larger.
The use of stainless steel makes the electric pump extremely solid and resistant.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 4.5
- Capacitor
- 16 µF 450 VL
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- Delrin
- Number of impellers
- 21
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 50
- Min. head (m.)
- 23
- Max. head (m.)
- 84
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 10.22
- External diameter (cm)
- 7.6
- Weight (Kg)
- 10.6
- Warranty (years)
- 2
3SRm 2 models and performance
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3SR construction data
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | POM acetal resin |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4404 (AISI 316L) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.3 - Diaphragm/Diffuser Cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
