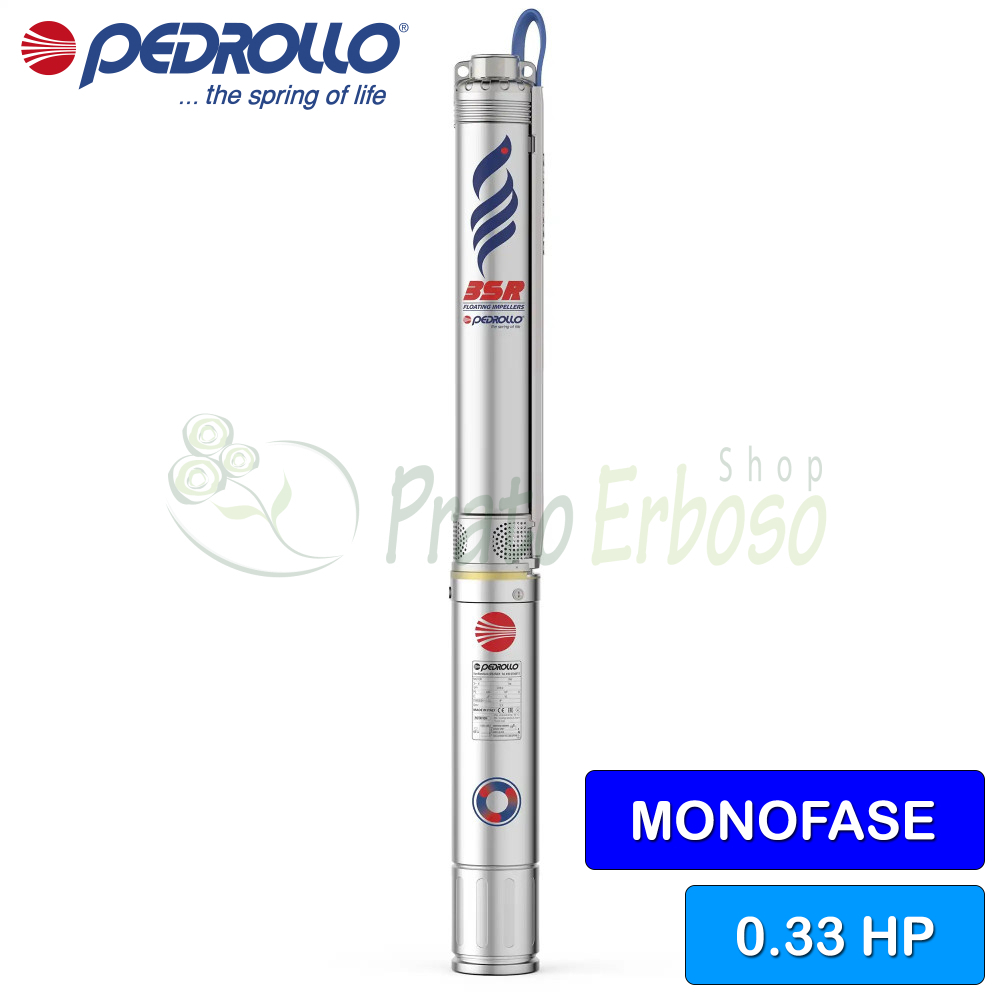

3SRm 5/6 - 0.33 HP single-phase submersible electric pump
Flow rate up to 120 l/min (7.2 m³/h). Head up to 18 m. 0.25 Kw (0.33 HP) motor.
The Pedrollo 3SRm 5/6 submersible electric pump is recommended for domestic and civil applications. It is primarily used for domestic water supply, irrigation, and water systems for small communities.
The hydraulic components, coupled with a high-efficiency electric motor, make this 3SR electric pump extremely efficient in the 3-inch category.
The 3SRm 5/6 allows you to save water thanks to its efficient performance and consequent reduced electricity consumption.
Its construction allows the pumping of water with a sand content of up to 150 grams per cubic meter.
Thanks to their compactness and lightness, this electric pump can be easily installed in wells of 3 inches or more.
The submersible motor is designed with a rewindable oil bath technique.
The 3SRm 5/6 can be installed up to 100 meters below water level, with an appropriately long power cable.
It has a flow rate that varies from 15 to 120 litres per minute with a head of 5 to 15 metres.
It must be powered by a single-phase voltage, has a horsepower of 0.33 HP and the temperature of the liquid to be pumped reaches up to +35 degrees centigrade.
The pump has an IP68 protection rating.
The 3SRm 5/6 has a pump body and shaft made of AISI 304 stainless steel and a noryl impeller which give the product good resistance and robustness.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.25
- Power (HP)
- 0.33
- Absorption at 230V (A)
- 3.2
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- Noryl
- Number of impellers
- 6
- Crankshaft
- AISI 304 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 15
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 5
- Max. head (m.)
- 15
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +35°C
- Motor voltage
- 230 V
- Height (cm)
- 76.7
- Weight (Kg)
- 9.2
- Diameter (cm)
- 7.6
- Warranty (years)
- 2
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | POM acetal resin |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4404 (AISI 316L) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.3 - Diaphragm/Diffuser Cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 3SRm 5/6 - 0.33 HP single-phase submersible electric pumpThis product Flow rate up to 120 l/min (7.2 m³/h). Head up to 18 m. 0.25 Kw (0.33 HP) motor. | |
|---|---|
| Price | Price €608.78 -42% €353.09 |
| Motor connection | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 0.25 |
| Power (HP) | Power (HP) 0.33 |
| Absorption at 230V (A) | Absorption at 230V (A) 3.2 |
| Delivery mouth | Delivery mouth 1" |
| Pump body | Pump body AISI 304 stainless steel |
| Impeller | Impeller Noryl |
| Number of impellers | Number of impellers 6 |
| Crankshaft | Crankshaft AISI 304 stainless steel |
| Check valve | Check valve No |
| Degree of protection | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 15 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 120 |
| Min. head (m.) | Min. head (m.) 5 |
| Max. head (m.) | Max. head (m.) 15 |
| Jobs | Jobs water supply, pressurization systems, irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +35°C |
| Motor voltage | Motor voltage 230 V |
| Height (cm) | Height (cm) 76.7 |
| Weight (Kg) | Weight (Kg) 9.2 |
| Diameter (cm) | Diameter (cm) 7.6 |
| Warranty (years) | Warranty (years) 2 |
