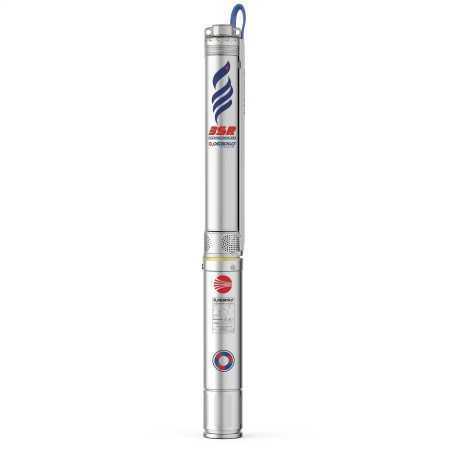

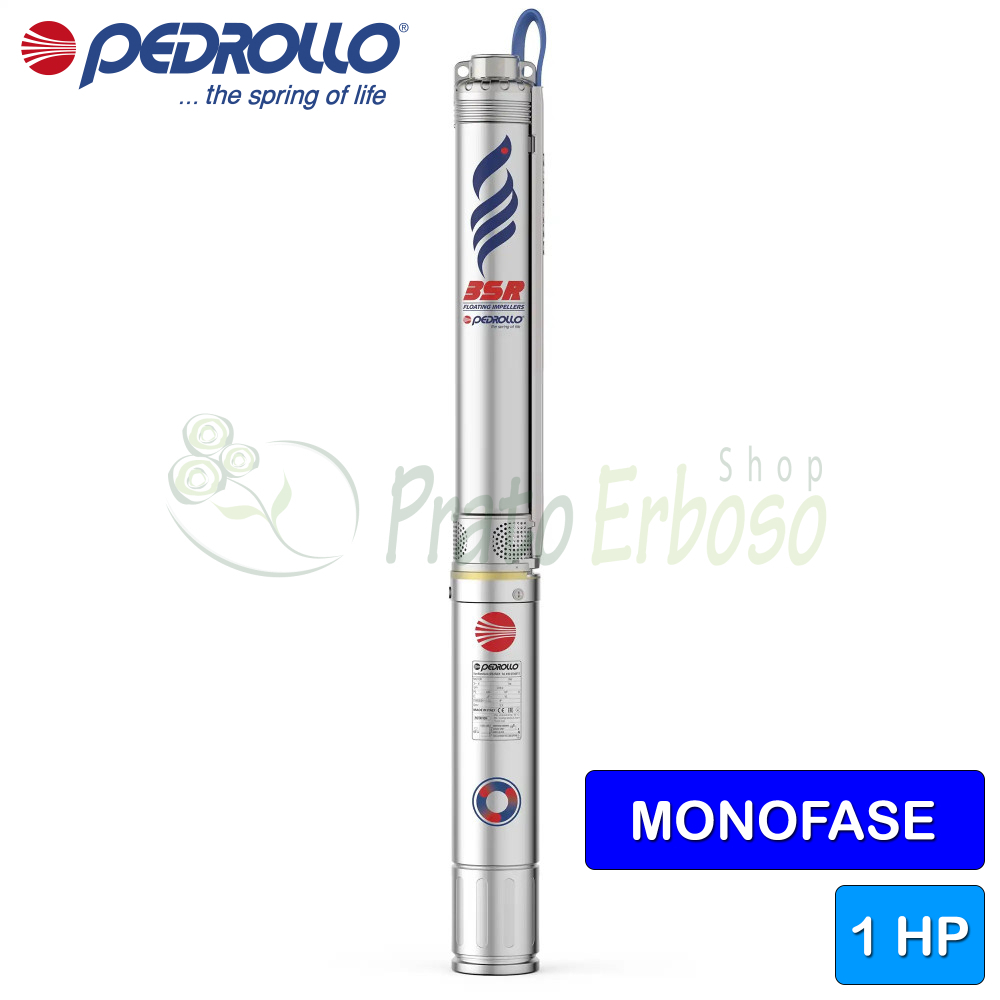

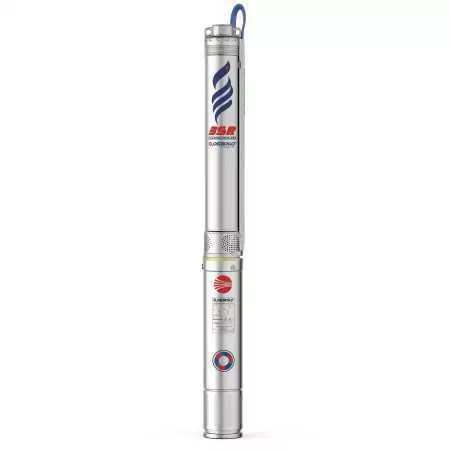

3SRm 5/15 - 1 HP single-phase submersible electric pump
Flow rate up to 120 l/min (7.2 m³/h). Head up to 45 m. 0.75 Kw (1 HP) motor.
The 3SRm 5/15 submersible electric pump by Pedrollo has a flow rate that can vary from 15 to 120 litres per minute with a head from 15 to 45 metres.
The key features of this pump are its efficient operation and its construction that allows for comfortable use.
The operation of the 3SRm 5/15 pump allows you to save water with consequent electricity savings. It allows you to pump water with sand content up to 150 grams per cubic meter.
The construction and light weight make installation convenient and simple. It can be installed in wells up to 100 meters deep with a suitable power cable. The degree of protection from water and dust is IP68.
Recommended for domestic and civil use. The 3SRm 5/15 is suitable for multiple applications such as domestic supply, irrigation, water systems for small communities.
The pump motor is made with rewindable oil bath technique.
It must be powered by a single-phase voltage, has a horsepower of 1 HP and the temperature of the liquid to be pumped reaches up to +35 degrees centigrade.
The 3SRm 5/15 benefits from a solid construction, it is made of AISI 304 stainless steel which makes it robust and resistant.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 6.0
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- Noryl
- Number of impellers
- 1
- Crankshaft
- AISI 304 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 15
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 15
- Max. head (m.)
- 45
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +35°C
- Motor voltage
- 230 V
- Height (cm)
- 130.9
- Weight (Kg)
- 13.1
- Diameter (cm)
- 7.6
- Warranty (years)
- 2
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | POM acetal resin |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4404 (AISI 316L) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.3 - Diaphragm/Diffuser Cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
