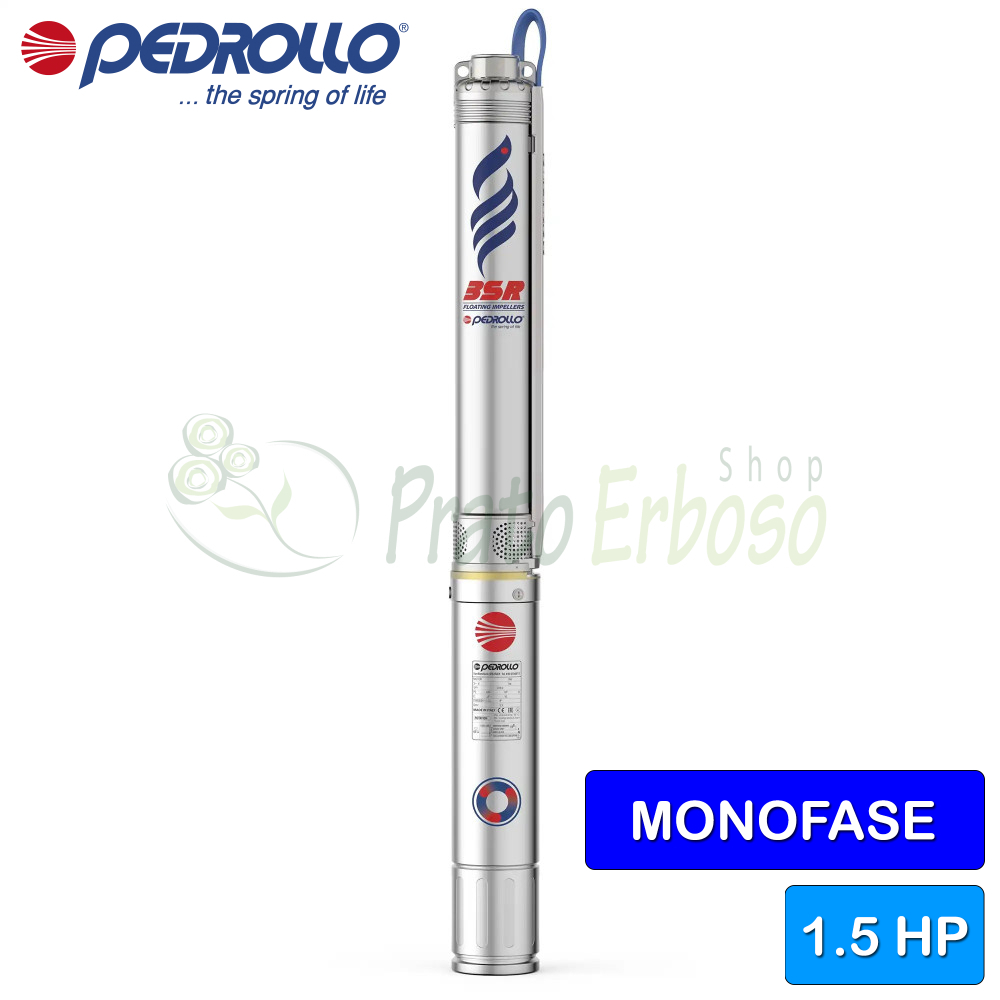

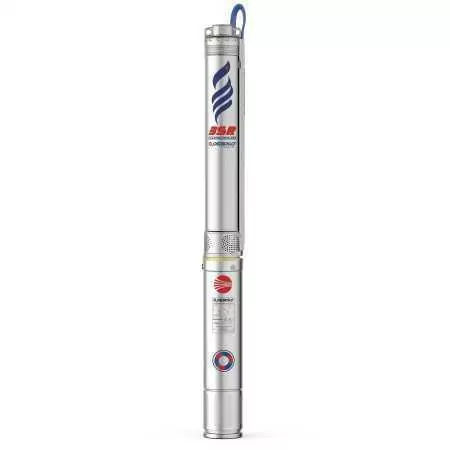

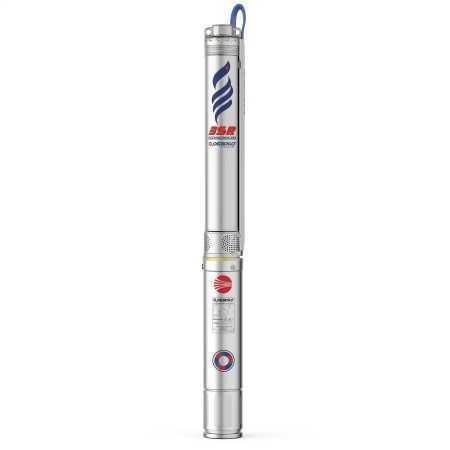

3SRm 5/23 - 1.5 HP single-phase submersible electric pump

The 3SRm 5/23 submersible electric pump by Pedrollo is recommended for use in the domestic and civil sector. It can mainly be used for domestic supply, irrigation and water systems for small communities.

The hydraulic components, coupled with a high-efficiency electric motor, make this 3SR electric pump extremely efficient in the 3” category.

The 3SRm 5/23 allows you to save water thanks to its efficient performance and reduced electricity consumption.

Its construction allows the pumping of water with sand content of up to 150 grams per cubic meter.

Thanks to their compactness and lightness, this electric pump can be easily installed in wells of 3” or more.

The submersible motor is designed with a rewindable oil bath technique.

The 3SRm 5/23 can be installed up to 100 metres below water level, with an appropriately long power cable.

It has a flow rate that varies from 15 to 120 litres per minute with a head from 23 to 69 metres.

It must be powered by a single-phase voltage, has a horsepower of 1.5 HP and the temperature of the liquid to be pumped reaches up to +35 degrees centigrade.

The protection classification of the pump is IP68.

The 3SRm 5/23 has a pump body and shaft made of AISI 304 stainless steel and the impeller is made of noryl which gives the product good resistance and robustness.
