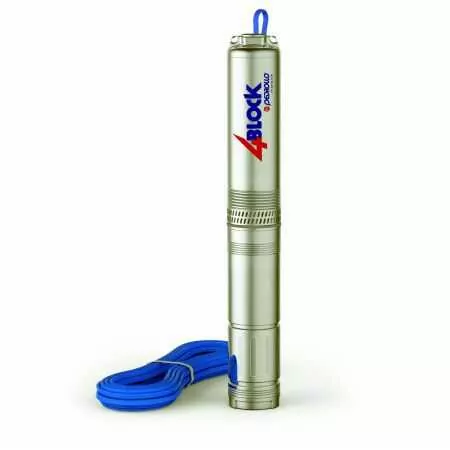

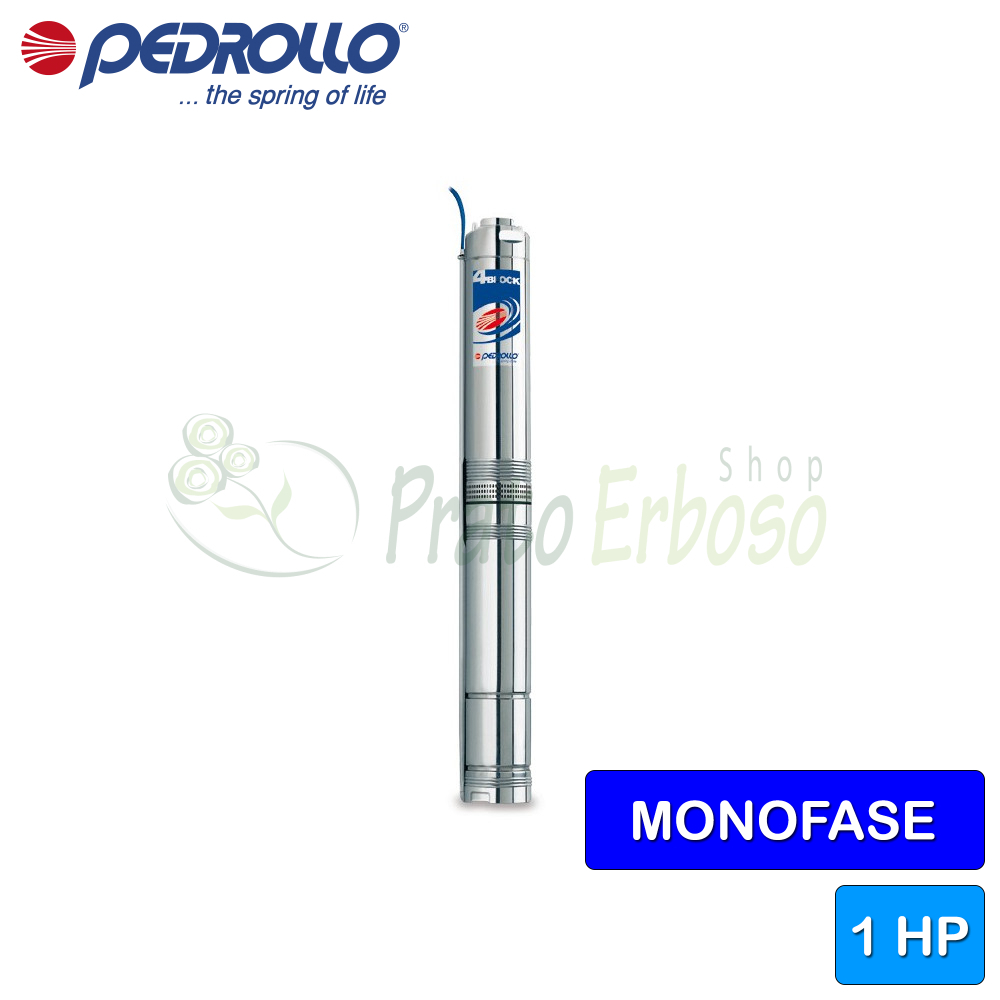

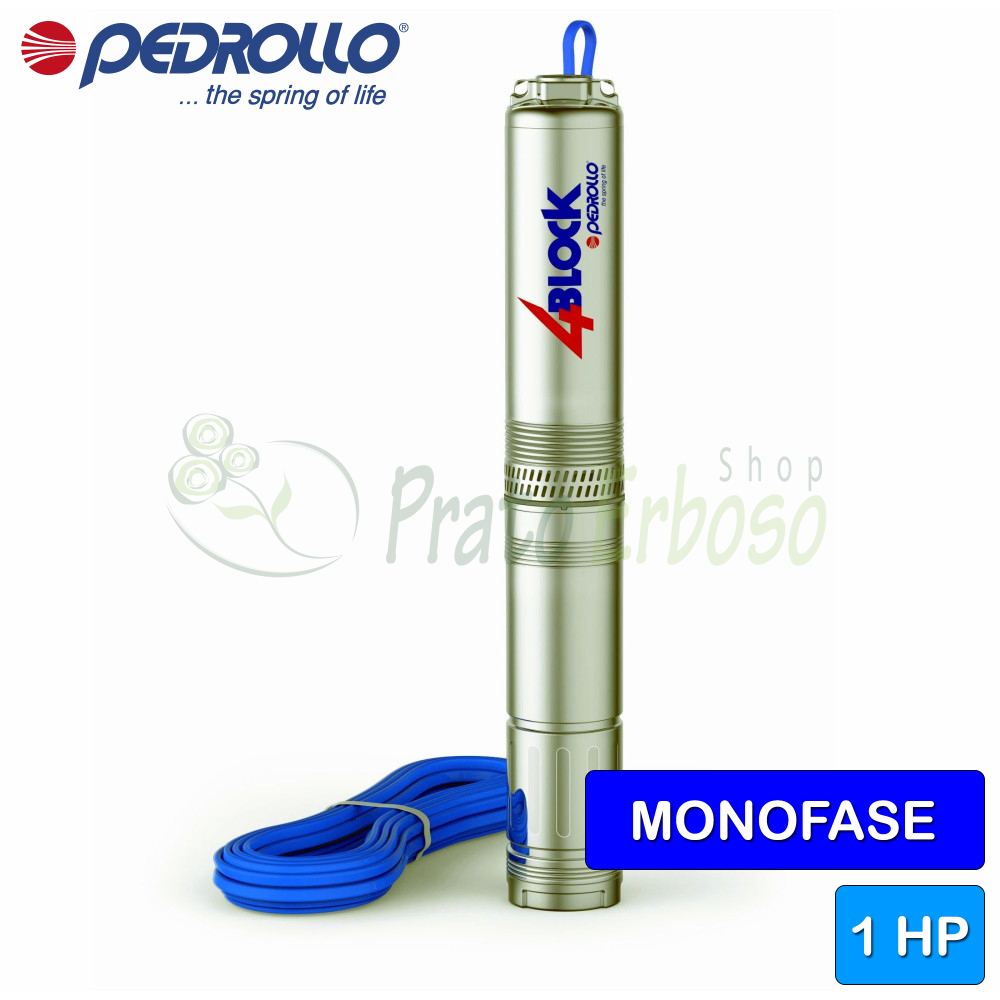

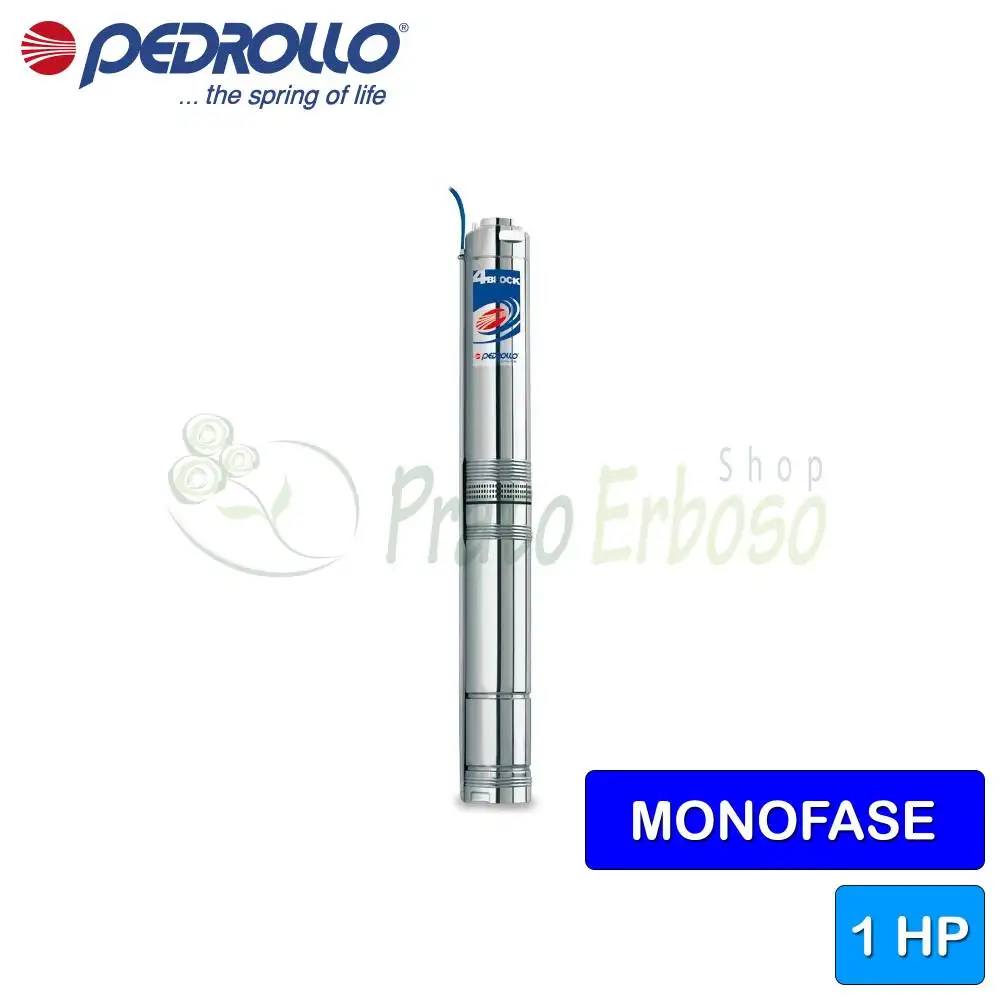

4BLOCKm 2/13 (20m) - 1 HP single-phase submersible electric pump

Name: 4BLOCKm 2/13 (20m) - 1 HP single-phase submersible electric pump
Brand: Pedrollo
SKU: 4BLOCKm 2/13 20m
Price: 367.95 EUR
Availability: InStock
Rating: 5 (1 reviews)

Flow rate up to 60 l/min (3.6 m³/h). Head up to 101 m. 0.75 Kw (1 HP) motor. 20 meters of cable.

Variants:

Make a purchase proposal

Reinforced packaging to reduce transport damage.

Telephone support for information before purchasing.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

Monobloc submersible electric pump in stainless steel ready to install. It is complete with: capacitor, built-in thermal motor protector and 20 meter power cable.

The PEDROLLO 4BLOCKm 2/12 has a flow rate that varies from 10 to 60 liters per minute with a head from 38.5 to 101 meters. The head that the pump can reach depends on the motor with which the pump is equipped and the number of impellers it has.

It is recommended for supplying clean water from wells even in the presence of sand up to 150 grams per cubic meter.

Due to its high performance and reliability, it is recommended for use in the domestic sector, for the automatic distribution of water in conjunction with pressure tanks, for irrigation, etc.

Data sheet

Motor connection: SINGLE PHASE
Power (Kw): 0.75
Power (HP): 1
Absorption at 230V (A): 6
Capacitor: 35 µF450 VL
Delivery mouth: 1 "1/4
Pump body: AISI 304 stainless steel
Impeller: Delrin
Number of impellers: 12
Pump shaft: AISI 304 stainless steel
Check valve: No
Degree of protection: IP 68
Min. flow rate (l./min.): 10
Max. flow rate (l./min.): 60
Min. head (m.): 38.5
Max. head (m.): 101
Cable length (m): 20
Jobs: water supply, pressurization systems, irrigation
Max. liquid temperature (°C): 35
Height (cm): 73.7
External diameter (cm): 10
Weight (Kg): 14.3
Warranty (years): 2

Attachments

4BLOCK data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo 4BLOCK series pumps.

Download (1.55MB)

4BLOCKm 2 models and performances

GUY

three-phase

4BLOCKm 2/6

4BLOCKm 2/9

4BLOCKm 2/12

4BLOCKm 2/18

POWER
KW	HP
0.37	0.50
0.55	0.75
0.75	1
1.1	1.5

IMPELLERS

number

PERFORMANCE
Q litres/min	H meters
10 ÷ 60	47 ÷ 18
10 ÷ 60	70 ÷ 26.5
10 ÷ 60	94 ÷ 35.5
10 ÷ 60	140 ÷ 53.5

MOUTH
DN
1 1/4"

Q	m³/hour	0	0.6	1.2	1.8	2.4	3.0	3.6
Q	l/min	0	10	20	30	40	50	60
H	meters	47	45	42	38	33	26.3	18
		70	67.5	63	57	49.5	39.5	26.5
		94	90	84	76	66	52.5	35.5
		140	135	126	114	99	79	53.5

Construction data of the 4BLOCK series

Bearings

Pump side motor bearing	6203
Opposite side engine bearing	6203

Tree holding

Type of seal	Single Mechanical Seal in oil chamber
Engine side model	ST1-16
LM diameter	16
LM fixed ring	Ceramic
LM rotating ring	Graphite
LM elastomer	NBR

Materials

1.3 - Delivery body	Stainless steel EN 1.4301 (AISI 304)
2.1 - Seal holder cover	Brass CW617N EN 12165
3.0 - Impeller	POM acetal resin
4.0 - Pump shaft	Stainless steel EN 1.4301 (AISI 304)
4.1 - Crankshaft	Stainless steel EN 1.4057 (AISI 431)
5.0 - Stadium box	Stainless steel EN 1.4301 (AISI 304)
5.1 - Diffuser	Reinforced technopolymer
6.2 - Engine sleeve	Stainless steel EN 1.4301 (AISI 304)
7.0 - Lantern	Reinforced technopolymer
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
7.3 - Cable cover	Stainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/Filter	Stainless steel EN 1.4301 (AISI 304)
