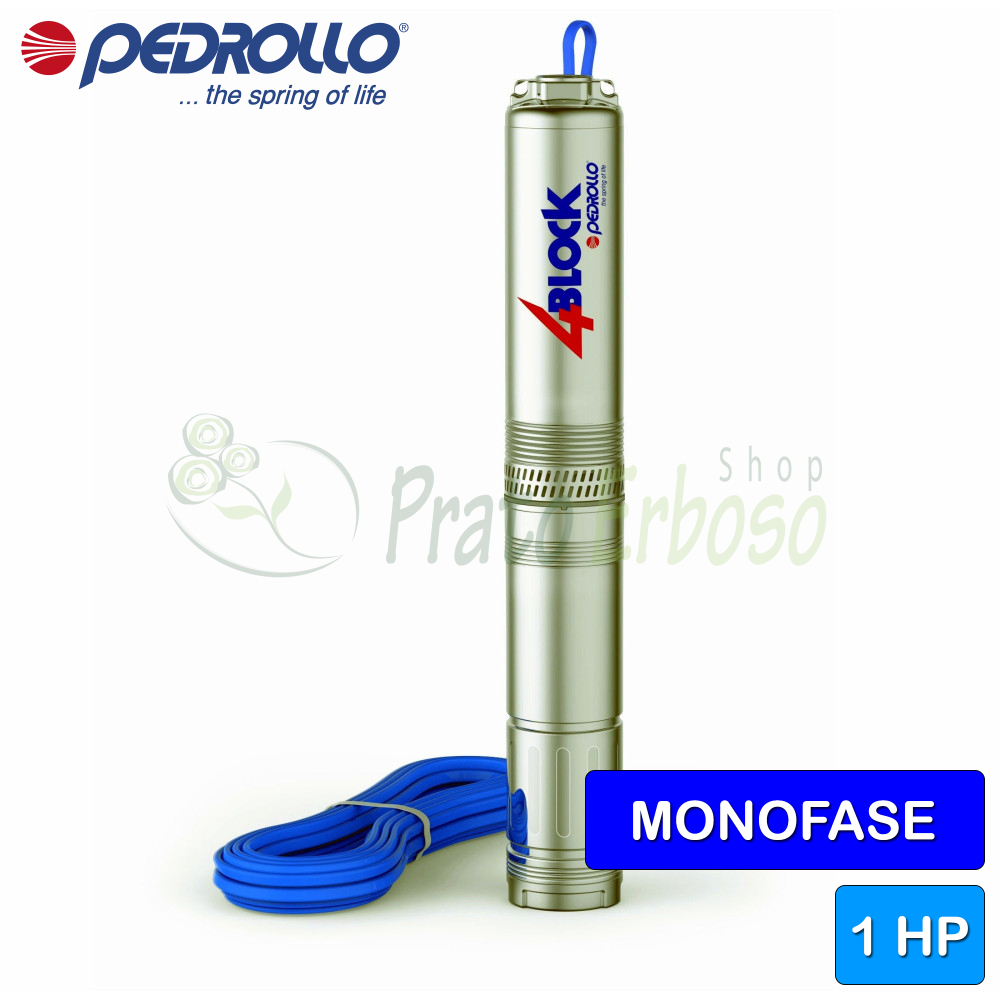

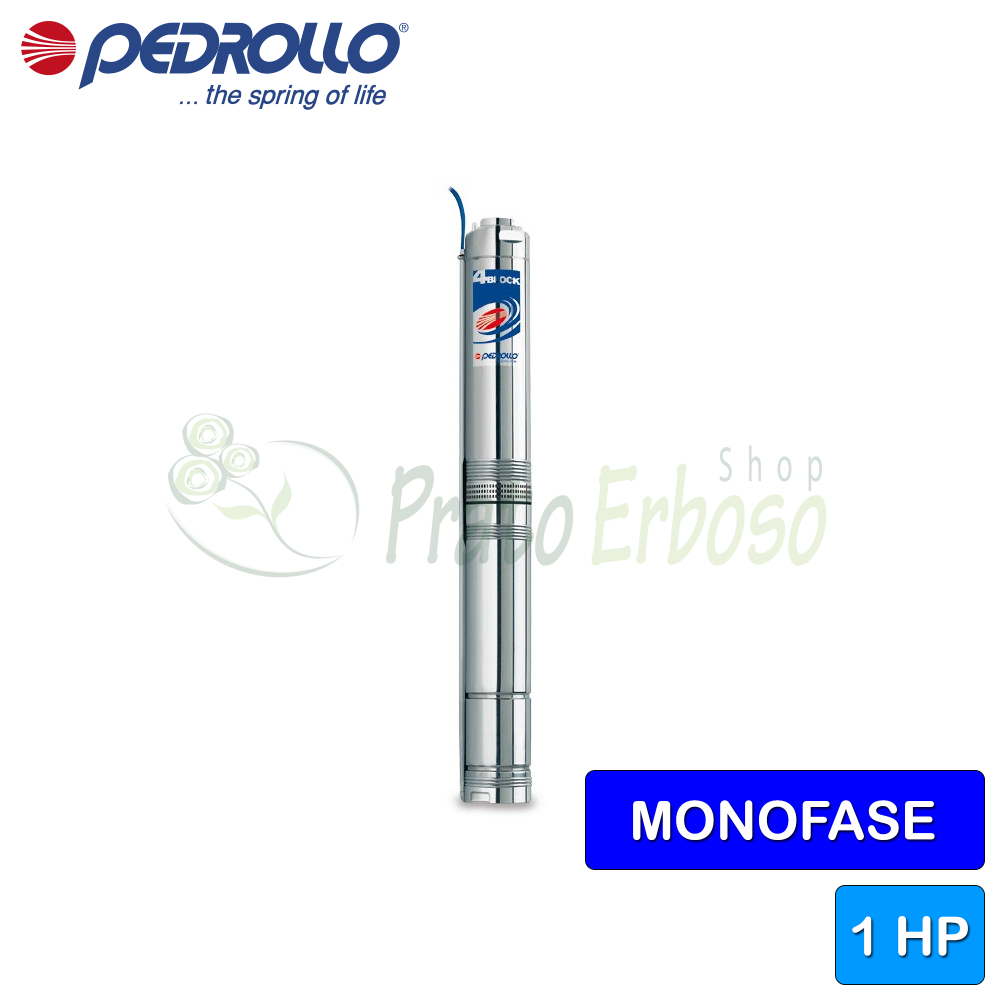

4BLOCKm 2/13 (30m) - 1 HP single-phase submersible electric pump
Flow rate up to 60 l/min (3.6 m³/h). Head up to 101 m. 0.75 kW (1 HP) motor. 30 m cable.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The 4-BLOCKm 2/13 submersible electric pump from the 4-BLOCK series by Pedrollo can pump water with a maximum sand content of 200 grams per cubic meter.
Equipped with completely independent and floating impellers that make the presence of sand irrelevant.
Recommended for domestic, agricultural and civil installations.
The 4-BLOCKm 2/13 is particularly suitable for automatic water distribution in conjunction with pressure tanks and for irrigation.
Ready for installation as it is already complete with capacitor and thermal overload cutout.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 6
- Capacitor
- 35 µF 450 VL
- Delivery mouth
- 1" 1/4
- Pump body
- AISI 304 stainless steel
- Impeller
- Delrin
- Number of impellers
- 12
- Pump shaft
- AISI 304 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 60
- Min. head (m.)
- 38.5
- Max. head (m.)
- 101
- Cable length (m.)
- 30
- Jobs
- irrigation
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 73.7
- External diameter (cm)
- 10
- Weight (Kg)
- 14.3
- Warranty (years)
- 2
4BLOCKm 2 models and performances
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 4BLOCK series
Bearings
| Pump side motor bearing | 6203 |
| Opposite side engine bearing | 6203 |
Tree holding
| Type of seal | Single Mechanical Seal in oil chamber |
| Engine side model | ST1-16 |
| LM diameter | 16 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | POM acetal resin |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.1 - Crankshaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 6.2 - Engine sleeve | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Reinforced technopolymer |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
