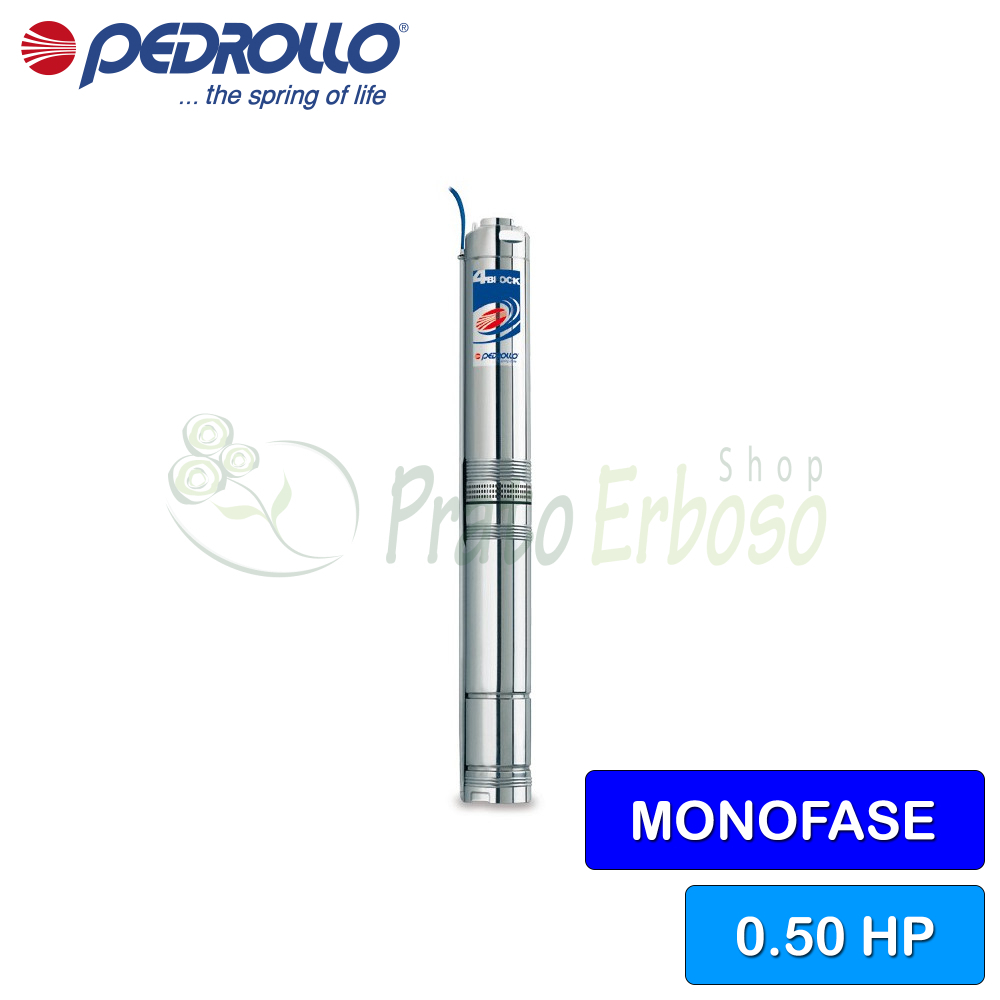

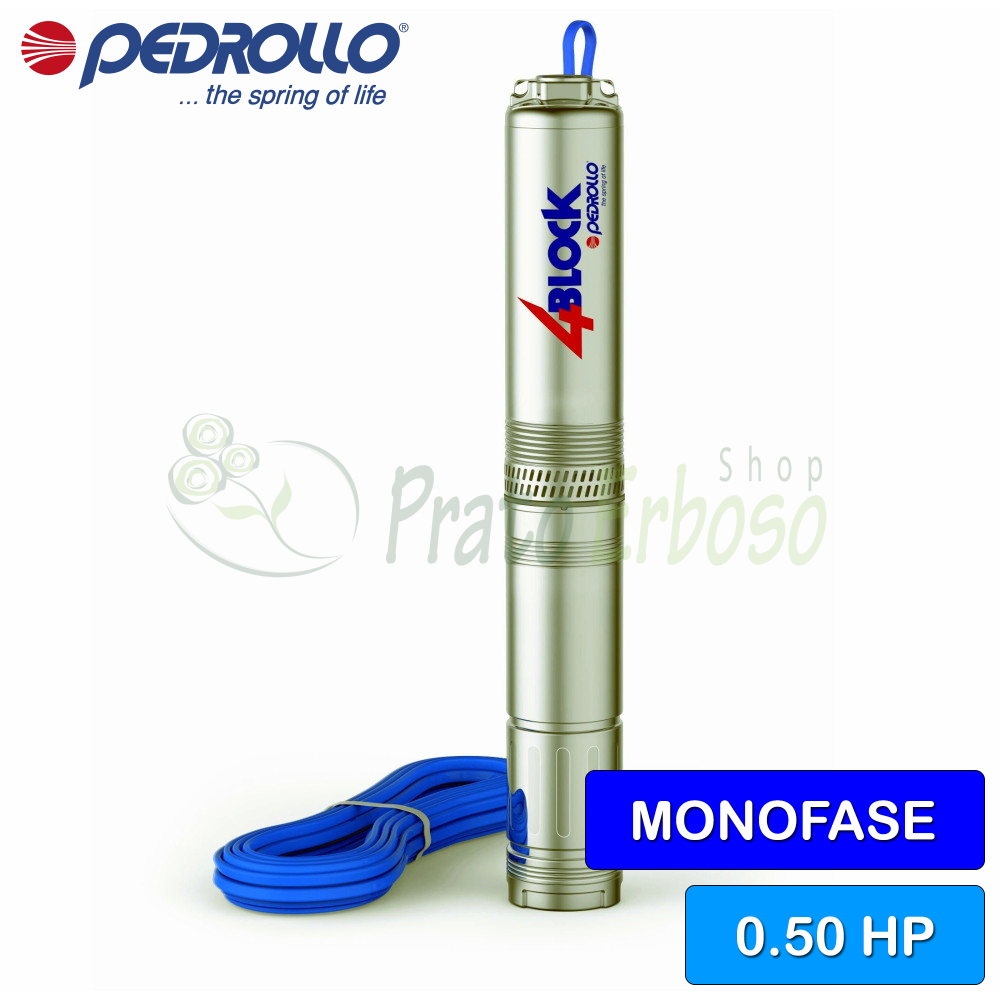

4BLOCKm 4/5 (30m) - 0.50 HP single-phase submersible electric pump
Flow rate up to 100 l/min (6 m³/h). Head up to 39.5 m. 0.37 Kw (0.50 HP) motor. 30 meters of cable.
Monobloc submersible electric pump in stainless steel ready to install. It is complete with: capacitor, built-in thermal motor protector and 30 meter power cable.
The PEDROLLO 4BLOCKm 4/4 has a flow rate that varies from 20 to 100 litres per minute with a head from 12.5 to 39.5 metres.
It is recommended for supplying clean water from wells even in the presence of sand up to 150 grams per cubic meter.
Due to its high performance and reliability, it is recommended for use in the domestic sector, for the automatic distribution of water in conjunction with pressure tanks, for irrigation, etc.
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 0.37
- Power (HP)
- 0.50
- Absorption at 230V (A)
- 5
- Capacitor
- 20 µF450 VL
- Delivery port
- 1 "1/4
- Body Pump
- AISI 304 stainless steel
- Impeller
- Delrin
- Number of impellers
- 4
- Pump shaft
- AISI 304 stainless steel
- Check valve
- no
- Degree of protection
- IP 68
- Flow rate min. (l./min.)
- 20
- Max flow (l./min.)
- 100
- Min head (m.)
- 10
- Max head (m.)
- 30
- Cable length (m)
- 30
- Employments
- water supply, pressurization systems, irrigation
- Liquid temperature max. (° C)
- 35
- Height (cm)
- 67.4
- Outside diameter (cm)
- 10.1
- Weight kg)
- 12.1
- Guarantee
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203 |
| Opposite side engine bearing | 6203 |
Tree holding
| Type of seal | Single Mechanical Seal in oil chamber |
| Engine side model | ST1-16 |
| LM diameter | 16 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | POM acetal resin |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.1 - Crankshaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 6.2 - Engine sleeve | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Reinforced technopolymer |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
