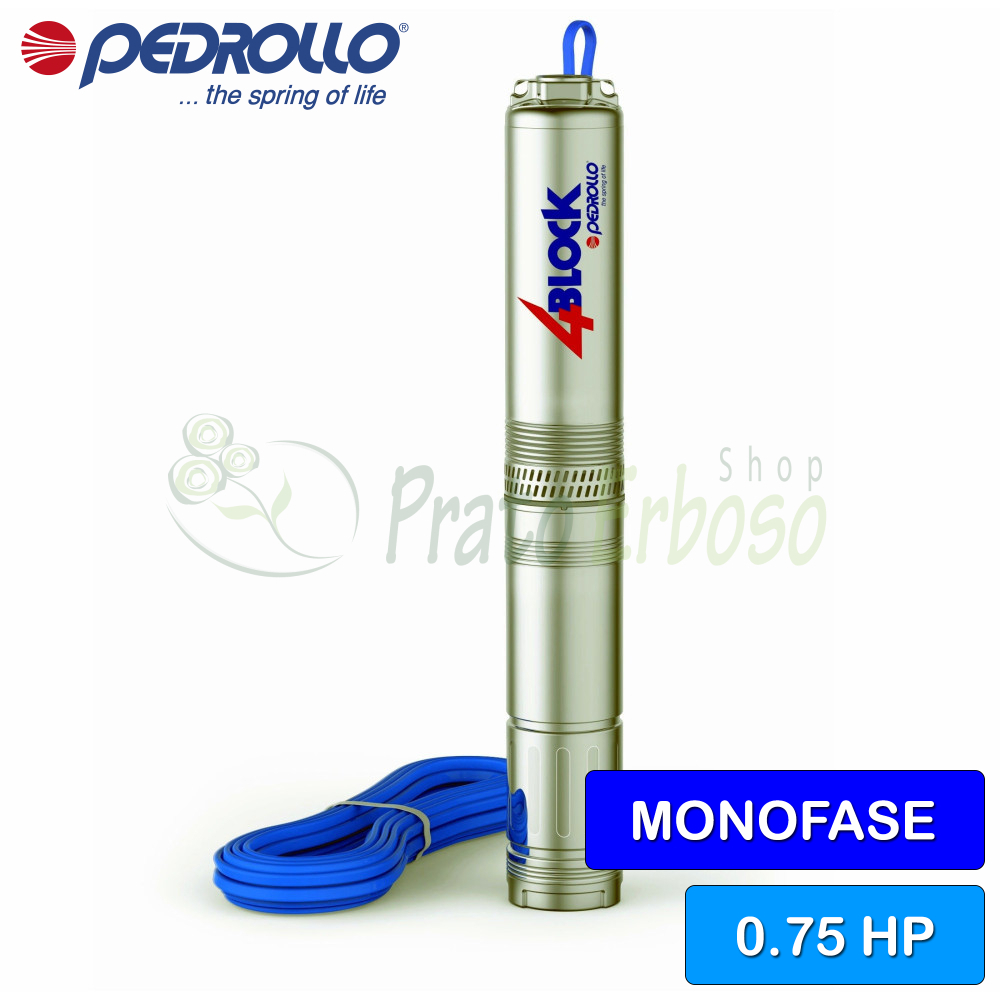

4BLOCKm 8/3 (20m) - 0.75 HP single-phase submersible electric pump

Name: 4BLOCKm 8/3 (20m) - 0.75 HP single-phase submersible electric pump
Brand: Pedrollo
SKU: 4BLOCKm 8/3 20m
Price: 357.34 EUR
Availability: InStock

Flow rate up to 200 l/min (12 m³/h). Head up to 21 m. 0.55 kW (0.75 HP) motor. 20 m cable.

Variants:

Order it before 23:59 on Thursday and receive it on Tuesday 17 February with Poste Italiane - 3 giorni punto di ritiro

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Wednesday 18 February - Thursday 19 February
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Wednesday 18 February - Thursday 19 February
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Wednesday 18 February - Thursday 19 February
Poste Italiane - 3 giorni punto di ritiro	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Tuesday 17 February
Ritiro in negozio	Choose where to collect your order within 24/48 hours.	Tuesday 17 February

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Wednesday 18 February - Thursday 19 February

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Wednesday 18 February - Thursday 19 February

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Wednesday 18 February - Thursday 19 February

Carrier: Poste Italiane - 3 giorni punto di ritiro

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Tuesday 17 February

Carrier: Ritiro in negozio

Description: Choose where to collect your order within 24/48 hours.

Estimated delivery:
Tuesday 17 February

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The 4-BLOCKm 8/3 submersible electric pump from the 4-BLOCK series by Pedrollo is complete with capacitor and thermal motor protector.

Due to its high performance, reliability and ease of installation, it is recommended for use in the domestic, civil and agricultural sectors.

Particularly for the automatic distribution of water in combination with pressure tanks and for irrigation.

The 4-BLOCKm 8/3 is complete with capacitor and thermal overload protector incorporated in the motor.

The construction is solid and robust thanks to Pedrollo 's use of stainless steel.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 0.55
Power (HP): 0.75
Absorption at 230V (A): 4
Capacitor: 20 µF 450 VL
Delivery mouth: 1" 1/4
Pump body: AISI 304 stainless steel
Impeller: Delrin
Number of impellers: 3
Pump shaft: AISI 304 stainless steel
Check valve: No
Degree of protection: IP 68
Minimum flow rate (l./min.): 40
Max. flow rate (l./min.): 200
Min. head (m.): 4
Max. head (m.): 21
Cable length (m.): 20
Jobs: water supply, pressurization systems, irrigation
Max. liquid temperature (°C): +35°C
Height (cm): 57.2
External diameter (cm): 10
Weight (Kg): 10.6
Warranty (years): 2

Attachments

4BLOCK technical sheet

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo 4BLOCK series pumps.

Download (1.55MB)

4BLOCKm 8 models and performances

TYPE

single phase

4BLOCKm 8/3

4BLOCKm 8/5

4BLOCKm 8/7

POWER
KW	HP
0.55	0.75
0.75	1
1.1	1.5

IMPELLERS

number

PERFORMANCES
Q liters/min	H meters
2.4 ÷ 12	21 ÷ 4
2.4 ÷ 12	35 ÷ 7
2.4 ÷ 12	56 ÷ 11.5

MOUTH
DN
1 1/4"

Q	m³/hour	0	2.4	3.6	4.5	6.0	7.5	9.0	10.5	12
Q	l/min	0	40	60	75	100	125	150	175	200
H	meters	21	20	19.4	18.7	17.1	14.9	12.1	8.6	4
		35	33.5	32.5	31	28.5	24.8	20.2	14.3	7
		56	53.5	51.5	50	45.5	39.5	32.5	22.9	11.5

Construction data of the 4BLOCK series

Bearings

Pump side motor bearing	6203
Opposite side engine bearing	6203

Tree holding

Type of seal	Single Mechanical Seal in oil chamber
Engine side model	ST1-16
LM diameter	16
LM fixed ring	Ceramic
LM rotating ring	Graphite
LM elastomer	NBR

Materials

1.3 - Delivery body	Stainless steel EN 1.4301 (AISI 304)
2.1 - Seal holder cover	Brass CW617N EN 12165
3.0 - Impeller	POM acetal resin
4.0 - Pump shaft	Stainless steel EN 1.4301 (AISI 304)
4.1 - Crankshaft	Stainless steel EN 1.4057 (AISI 431)
5.0 - Stadium box	Stainless steel EN 1.4301 (AISI 304)
5.1 - Diffuser	Reinforced technopolymer
6.2 - Engine sleeve	Stainless steel EN 1.4301 (AISI 304)
7.0 - Lantern	Reinforced technopolymer
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
7.3 - Cable cover	Stainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/Filter	Stainless steel EN 1.4301 (AISI 304)
