4BLOCKm 2/10 (30m) - 0.75 HP single-phase submersible electric pump
Flow rate up to 60 l/min (3.6 m³/h). Head up to 78 m. 0.55 Kw (0.75 HP) motor. 30 meters of cable.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Wednesday 12 November - Thursday 13 November |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Wednesday 12 November - Thursday 13 November |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Wednesday 12 November - Thursday 13 November |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 12 November |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Wednesday 12 November |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 12 November - Thursday 13 November
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 12 November - Thursday 13 November
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 12 November - Thursday 13 November
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 12 November
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Wednesday 12 November

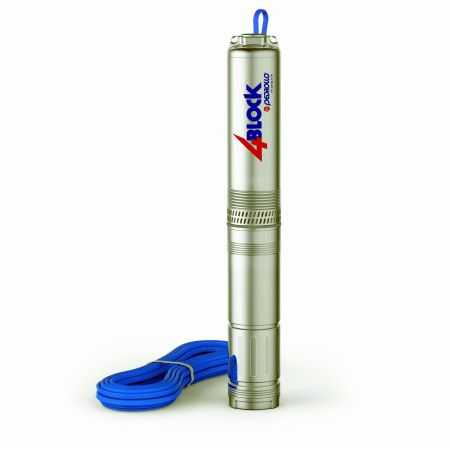

Monobloc submersible electric pump in stainless steel ready to install. It is complete with: capacitor, built-in thermal motor protector and 30 meter power cable.
The PEDROLLO 4BLOCKm 2/9 has a flow rate that varies from 10 to 60 litres per minute with a head from 29.5 to 78 metres.
It is recommended for supplying clean water from wells even in the presence of sand up to 150 grams per cubic meter.
Due to its high performance and reliability, it is recommended for use in the domestic sector, for the automatic distribution of water in conjunction with pressure tanks, for irrigation, etc.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 4
- Capacitor
- 20 µF 450 VL
- Delivery mouth
- 1" 1/4
- Pump body
- AISI 304 stainless steel
- Impeller
- Delrin
- Number of impellers
- 9
- Pump shaft
- AISI 304 stainless steel
- Check valve
- Yes
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 60
- Min. head (m.)
- 29.5
- Max. head (m.)
- 78
- Cable length (m.)
- 30
- Jobs
- irrigation
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 65.7
- External diameter (cm)
- 10
- Weight (Kg)
- 12.4
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203 |
| Opposite side engine bearing | 6203 |
Tree holding
| Type of seal | Single Mechanical Seal in oil chamber |
| Engine side model | ST1-16 |
| LM diameter | 16 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | POM acetal resin |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.1 - Crankshaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 6.2 - Engine sleeve | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Reinforced technopolymer |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
