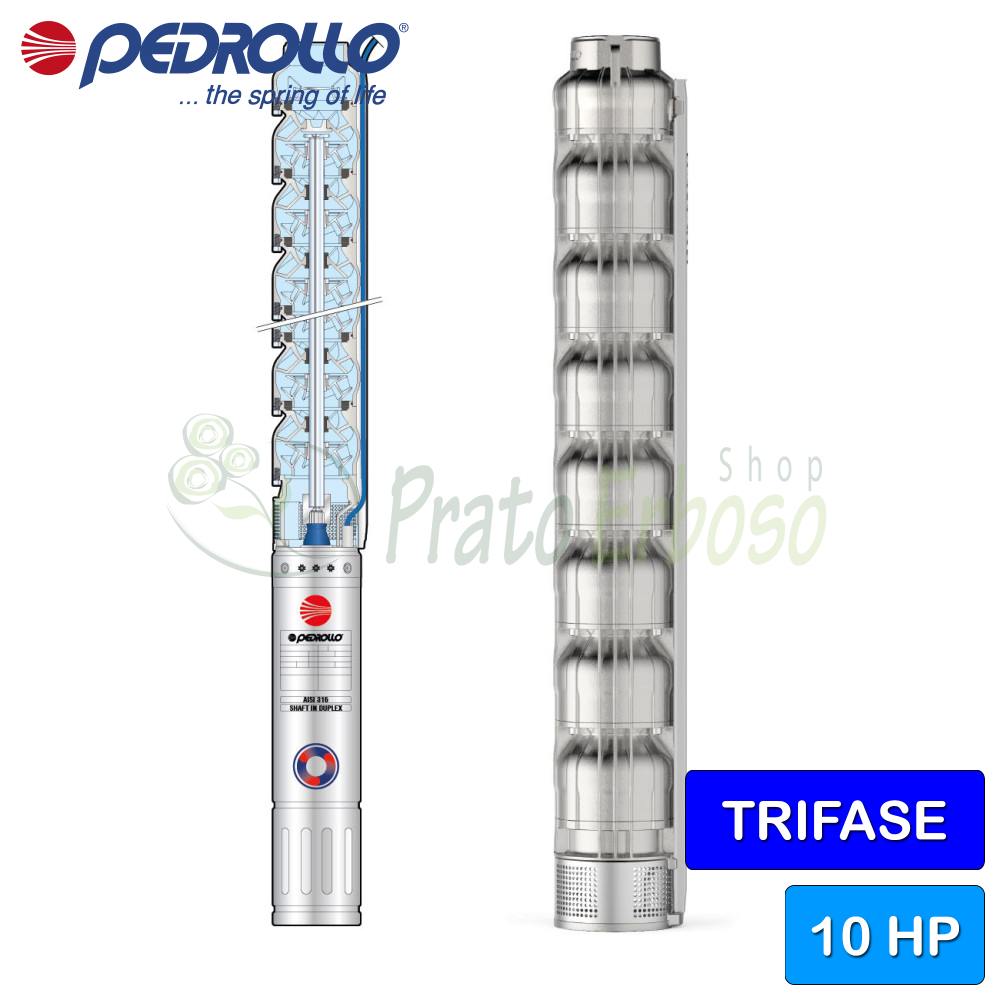

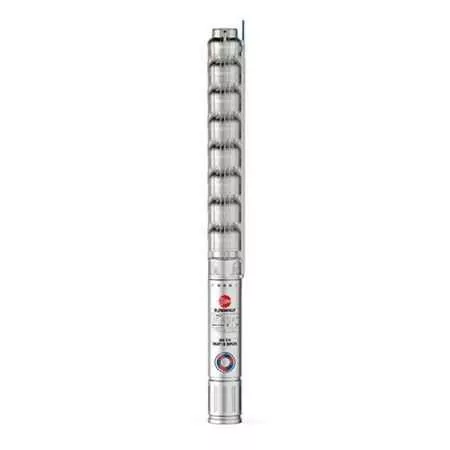

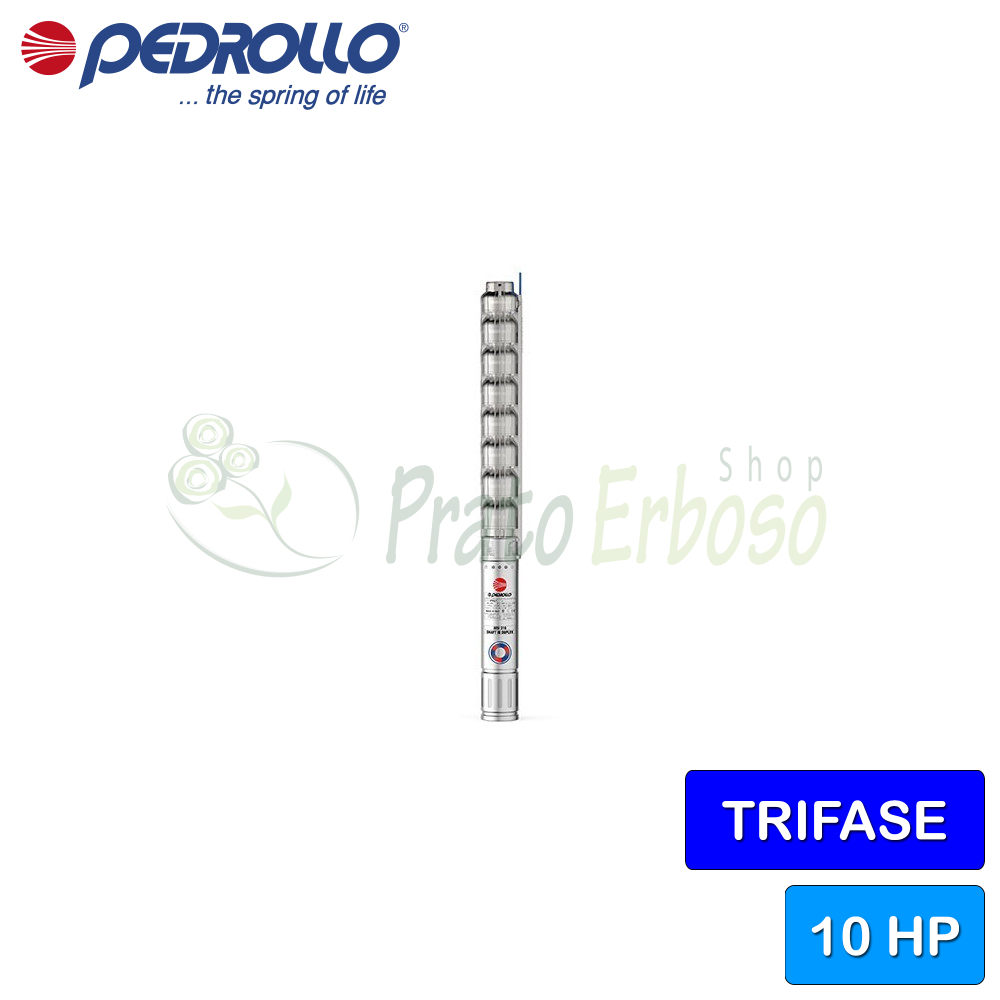

4HR 18/30 - PD - 10 HP three-phase submersible electric pump
Flow rate up to 420 l/min (25.2 m³/h). Head up to 176 meters. 7.5 Kw (10 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
Submersible electric pump with pump body in micro-cast AISI 304 stainless steel and rewindable PEDROLLO motor.
The PEDROLLO 4HRm 18/30 - PD is recommended for pumping clean water with a sand content not exceeding 100 grams per cubic metre.
It has a flow rate that varies from 50 to 420 litres per minute with a head from 36 to 176 metres.
Due to its high performance and reliability, it is suitable for domestic, civil and industrial use, for the distribution of water in combination with pressure tanks, for irrigation of vegetable gardens and gardens, for washing systems, for pressure raising or for fire-fighting systems.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 7.5
- Power (HP)
- 10
- Delivery port
- 2"
- Body Pump
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 30
- Pump shaft
- AISI 304 stainless steel
- Degree of protection
- IP 68
- Flow rate min. (l./min.)
- 50
- Max flow (l./min.)
- 420
- Min head (m.)
- 36
- Max head (m.)
- 176
- Cable length (m)
- 3.6
- Employments
- water supply, pressurization systems, irrigation, fire prevention systems
- Liquid temperature max. (° C)
- +35°C
- Height (cm)
- 31.36
- Outside diameter (cm)
- 10
- Weight kg)
- 70.8
- Guarantee
- 2
4HR 18 models and performance
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 4HR series
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Stainless steel EN 1.4301 (AISI 304) |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 5.2 - Wear ring | Special elastomer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
