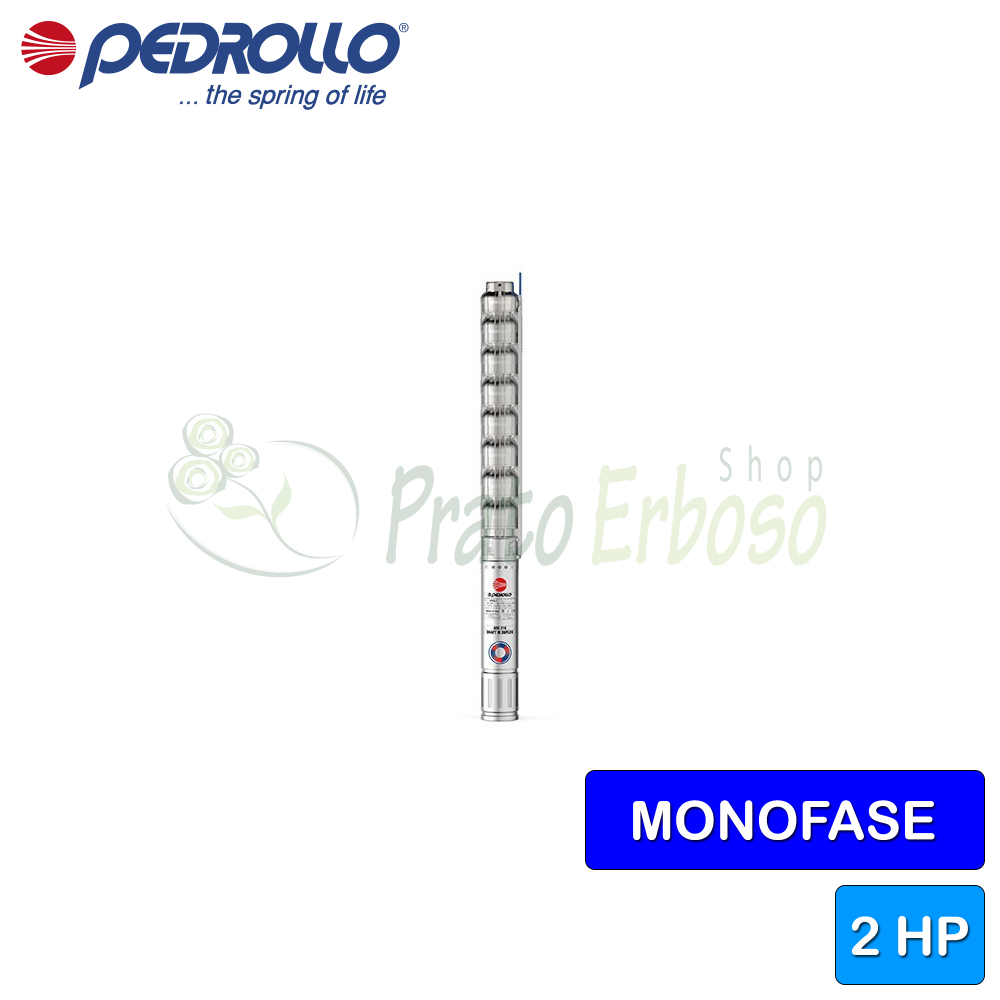

4HRm 10/10 - PS - 2 HP single-phase submersible electric pump

Flow rate up to 250 l/min (15 m³/h). Head up to 57.5 metres. 1.5 kW (2 HP) motor.

€1,371.52 Tax included

€1,124.20 Tax excluded

€2,493.68-45%

Variants:
4HRm 10/5 - PS - Elettropompa sommersa monofase da 1 HP
4HRm 10/7 - PS - Elettropompa sommersa monofase da 1.5 HP
4HRm 10/10 - PS - Elettropompa sommersa monofase da 2 HP
4HRm 10/15 - PS - Elettropompa sommersa monofase da 3 HP
There are no reviews yet
Close
Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

4HRm 10/10 - PS - 2 HP single-phase submersible electric pump
  • Use dot instead of comma

Loading

Telephone support for information before purchasing.
After-sales assistance for product installation.
Reinforced packaging to reduce transport damage.
We supply all spare parts on this product.
Description

The 4HRm 10/10 - PS submersible electric pump from the 4HR series by Pedrollo is characterised by high mechanical resistance.

Its resistance to sand and corrosion makes it ideal for installations in coastal areas and in the presence of brackish water.

It can pump clean water with sand content not exceeding 100 grams per cubic meter of sand.

Made entirely of micro-cast stainless steel of considerable thickness, the 4HRm 10/10 - PS is recommended when a high-quality product that guarantees a long operating life is required.

It can be installed up to 200 meters below water level both horizontally and vertically.

Data sheet
Pedrollo
4HRm 10/10 - PS
10 Items
494H1010WNA1
Motor connection
SINGLE-PHASE
Power (Kw)
1.5
Power (HP)
2
Delivery mouth
2"
Pump body
AISI 304 stainless steel
Impeller
AISI 304 stainless steel
Number of impellers
10
Crankshaft
AISI 304 stainless steel
Check valve
Yes
Degree of protection
IP 68
Minimum flow rate (l./min.)
50
Max. flow rate (l./min.)
250
Min. head (m.)
14
Max. head (m.)
57.5
Cable length (m.)
2
Jobs
water supply, pressurization systems, irrigation, fire prevention systems
Max. liquid temperature (°C)
+35°C
Height (cm)
117.3
External diameter (cm)
10
Weight (Kg)
28.8
Warranty (years)
2
Attachments

4HR Technical Data Sheet

Performance, construction features and operating curves of Pedrollo 4HR series pumps with PD rewindable and PS encapsulated motors.

file_download Download (1.34MB)

Buy it with

  • 4HRm 10/10 - PS - 2 HP single-phase submersible electric pump
  • +
  • E1 MONO - Electrical panel for single-phase 3 HP electric pump
  • +
  • FYG 22 - Adjustable single-phase pressure switch 7 bar
  • +
  • 8 VT - vertical Tank 8 litres
  • +
  • VR 2 - 2 "non-return valve
  • €1,697.96-10 %
    Total price: €1,528.16
Models and performance 4HRm 10
TYPE
Single phase
4HRm 10/5
4HRm 10/7
4HRm 10/10
4HRm 10/15
POWER
KWHP
0.751
1.11.5
1.52.2
2.23
Construction data of the 4HR series

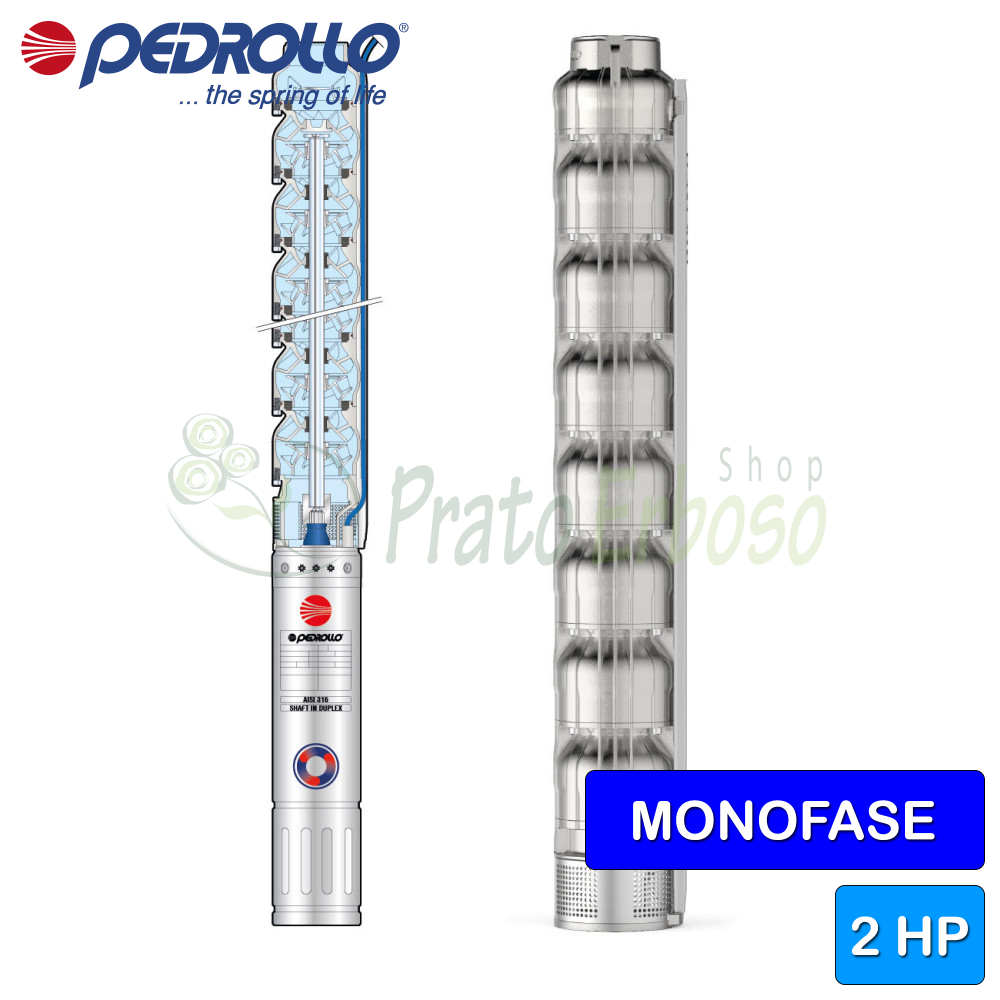

4HR pump cutaway
Bearings
Pump bearing - fixed partSpecial elastomer
Pump bearing - rotating partStainless steel EN 1.4301 (AISI 304)
Tree holding
Materials
1.3 - Delivery bodyStainless steel EN 1.4301 (AISI 304)
3.0 - ImpellerStainless steel EN 1.4301 (AISI 304)
4.0 - Pump shaftStainless steel EN 1.4301 (AISI 304)
4.2 - Towing jointStainless steel EN 1.4301 (AISI 304)
5.1 - DiffuserStainless steel EN 1.4301 (AISI 304)
5.2 - Wear ringSpecial elastomer
7.0 - LanternStainless steel EN 1.4301 (AISI 304)
7.1 - Check ValveStainless steel EN 1.4301 (AISI 304)
7.3 - Cable coverStainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/FilterStainless steel EN 1.4301 (AISI 304)
