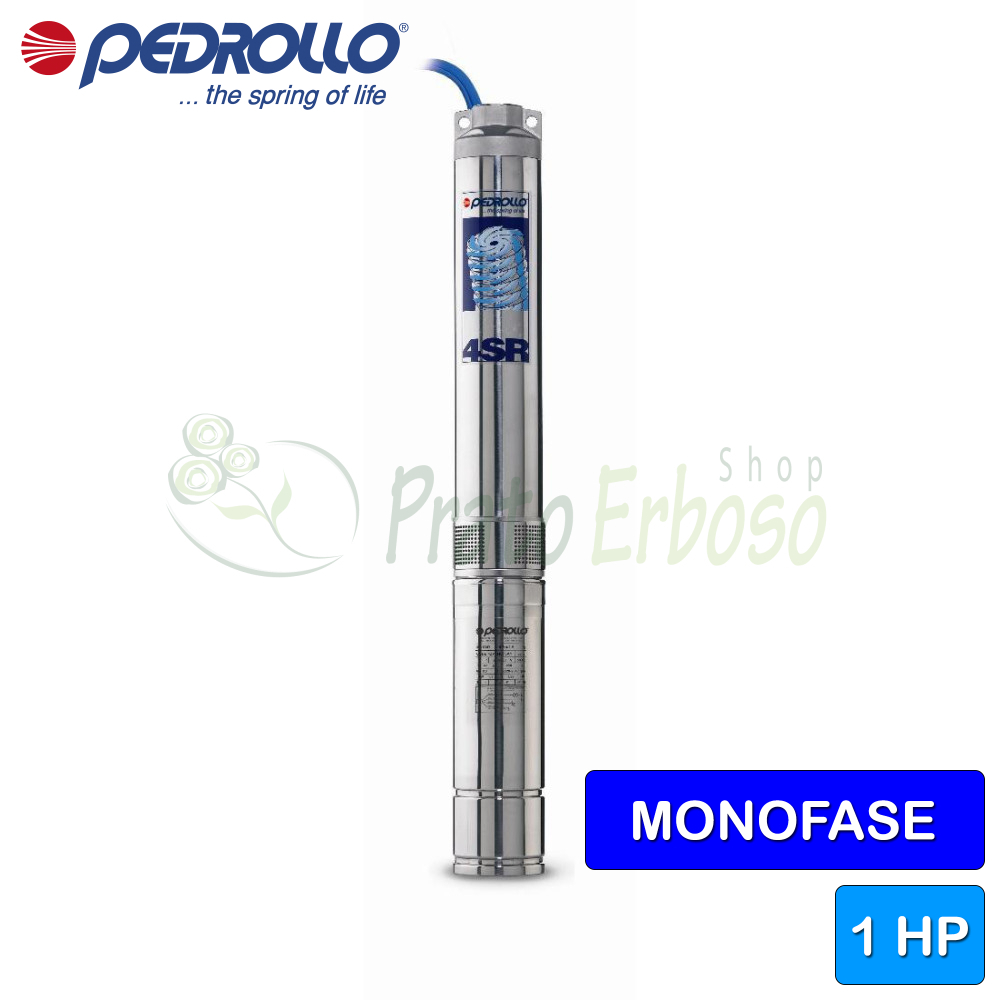

4SRm 12/5 N-PD - 1 HP single-phase submersible electric pump

Name: 4SRm 12/5 N-PD - 1 HP single-phase submersible electric pump
Brand: Pedrollo
SKU: 4SRm 12/5 N-PD
Price: 338.94 EUR
Availability: InStock

Flow rate up to 300 l/min (18 m³/h). Head up to 29 meters. 0.75 Kw (1 HP) motor.

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The PEDROLLO 4SRm 12/5 N-PD is recommended for pumping clean water with a sand content not exceeding 150 grams per cubic metre.

It has a flow rate that varies from 50 to 300 litres per minute with a head of 6 to 29 metres.

Due to its high performance and reliability, it is suitable for domestic, civil and industrial use, for the distribution of water in combination with pressure tanks, for irrigation of vegetable gardens and gardens, for washing systems, for pressure raising or for fire-fighting systems.

Submersible electric pump with rewindable PEDROLLO motor.

Data sheet

Motor connection: SINGLE PHASE
Power (Kw): 0.75
Power (HP): 1
Absorption at 230V (A): 5.9
Delivery port: 2"
Body Pump: AISI 304 stainless steel
Impeller: Noryl
Number of impellers: 5
Pump shaft: AISI 304 stainless steel
Check valve: Yes
Degree of protection: IP 68
Flow rate min. (l./min.): 50
Max flow (l./min.): 300
Min head (m.): 5
Max head (m.): 26
Cable length (m): 2
Employments: water supply, pressurization systems, irrigation
Liquid temperature max. (° C): 35
Height (cm): 89.9
Outside diameter (cm): 9.8
Weight kg): 14.1
Guarantee: 2

Attachments

Data sheet 4SR N

Performance, construction features and working curves of Pedrollo 4SR N series pumps with rewindable PD and encapsulated PS motor.

Download (2.89MB)

Models and performances 4SRm 12-N

GUY

three-phase

4SRm 12/5-N

4SRm 12/7-N

4SRm 12/9-N

4SRm 12/13-N

POWER
KW	HP
0.75	1
1.1	1.5
1.5	2
2.2	3

IMPELLERS

number

PERFORMANCE
Q litres/min	H meters
50 ÷ 300	29 ÷ 6
50 ÷ 300	40.5 ÷ 8.5
50 ÷ 300	52 ÷ 11
50 ÷ 300	75 ÷ 15.5

MOUTH
DN
2"

Q	m³/hour	0	3	6	9	12	15	18
Q	l/min	0	50	100	150	200	250	300
H	meters	29	26	23.2	19.8	15.9	11.3	6
		40.5	36.5	32.5	27.5	22.2	15.8	8.5
		52	47	42	35.5	28.5	20.3	11
		75	68	60.5	51.5	41	29.5	15.5
