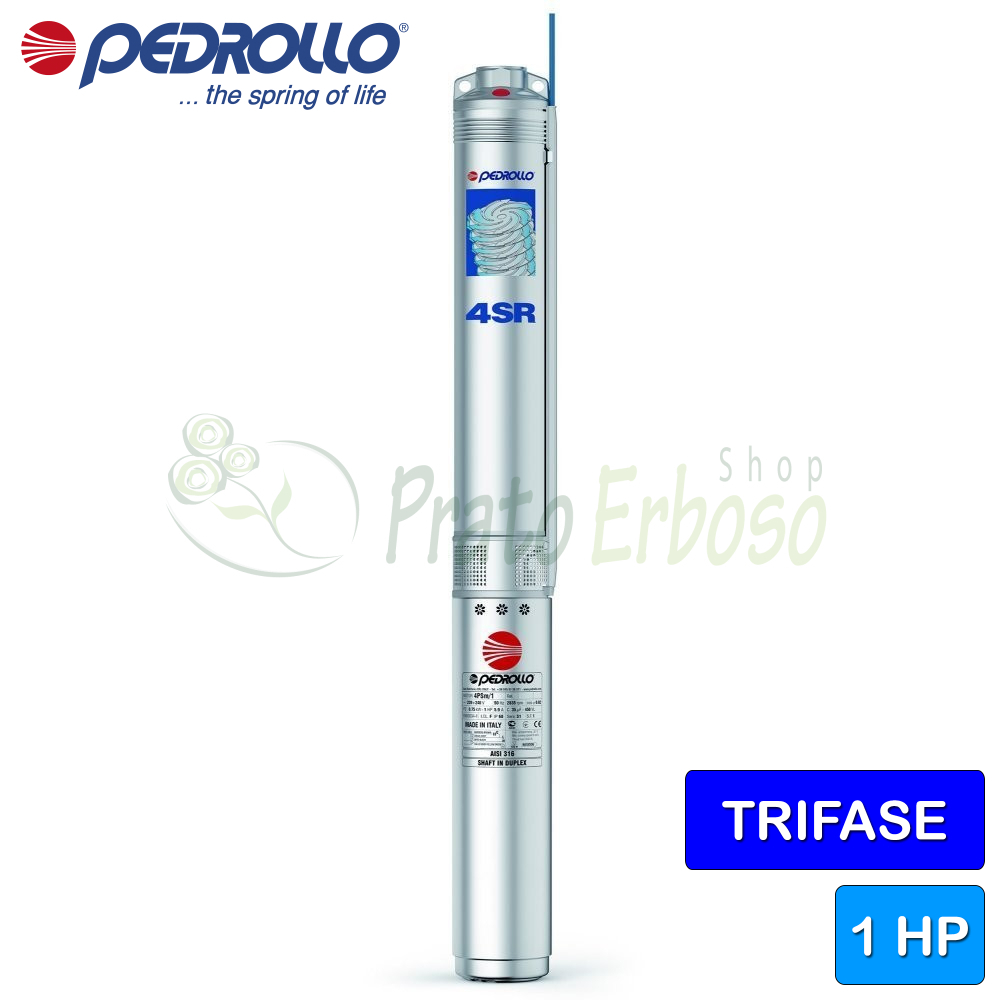

4SR 10/5 N-PS - 1 HP three-phase submersible electric pump

Flow rate up to 250 l/min (15 m³/h). Head up to 31.5 metres. 0.75 kW (1 HP) motor.

€450.91 Tax included

€369.60 Tax excluded

€819.84-45%

Variants:
4SR 10/5 N-PS - Elettropompa sommersa trifase da 1 HP
4SR 10/7 N-PS - Elettropompa sommersa trifase da 1.5 HP
4SR 10/9 N-PS - Elettropompa sommersa trifase da 2 HP
4SR 10/13 N-PS - Elettropompa sommersa trifase da 3 HP
4SR 10/18 N-PS - Elettropompa sommersa trifase da 4 HP
4SR 10/24 N-PS - Elettropompa sommersa trifase da 5.5 HP
4SR 10/32 N-PS - Elettropompa sommersa trifase da 7.5 HP
4SR 10/43 N-PS - Elettropompa sommersa trifase da 10 HP
Close
Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

4SR 10/5 N-PS - 1 HP three-phase submersible electric pump
  • Use dot instead of comma

Loading

Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description

The 4SR 10/5 N-PS submersible electric pump from the 4SR series by Pedrollo , thanks to its refined design, offers exceptional performance and efficiency.

Recommended for agricultural, civil and domestic installations.

Its high efficiency and reliability make it suitable for water distribution in conjunction with pressure tanks, for irrigation, for washing systems and for pressure boosting.

The 4SR 10/5 N-PS, thanks also to its resistance to wear and corrosion, is among the best in the 4-inch submersible pump category.

It can pump clean water with a maximum sand content of 150 grams per cubic meter.

Data sheet
Pedrollo
4SR 10/5 N-PS
12 Items
49481005WNA
Motor connection
THREE-PHASE
Power (Kw)
0.75
Power (HP)
1
Current consumption at 400V (A)
2.5
Delivery mouth
2"
Pump body
AISI 304 stainless steel
Impeller
Noryl
Number of impellers
5
Pump shaft
AISI 304 stainless steel
Check valve
Yes
Degree of protection
IP 68
Minimum flow rate (l./min.)
50
Max. flow rate (l./min.)
250
Min. head (m.)
6
Max. head (m.)
31.5
Cable length (m.)
2
Jobs
water supply, pressurization systems, irrigation
Max. liquid temperature (°C)
+35°C
Height (cm)
68.7
External diameter (cm)
9.8
Weight (Kg)
12
Attachments

4SR N Technical Data Sheet

Performance, construction characteristics and operating curves of Pedrollo 4SR N series pumps with PD rewindable and PS encapsulated motors.

file_download Download (2.91MB)

Buy it with

  • 4SR 10/5 N-PS - 1 HP three-phase submersible electric pump
  • +
  • E1 TRI/1 - Electrical panel for three-phase electric pump 7.5 HP
  • +
  • FYG 22 - Adjustable single-phase pressure switch 7 bar
  • +
  • 8 VT - vertical Tank 8 litres
  • +
  • VR 2 - 2 "non-return valve
  • €856.61-10 %
    Total price: €770.95
Models and performances 4SR 10-N
GUY
three-phase
4SR 10/5-N
4SR 10/7-N
4SR 10/9-N
4SR 10/13-N
4SR 10/18-N
4SR 10/24-N
4SR 10/32-N
4SR 10/43-N
POWER
KWHP
0.751
1.11.5
1.52
2.23
34
45.5
5.57.5
7.510
Construction data of the 4SR-N series
Cutaway of 4SR-N pumps
Bearings
Pump bearing - fixed partAnti-friction polymer
Pump bearing - rotating partSintered AISI 316 steel with ceramic coating
Tree holding
Materials
1.3 - Delivery bodyStainless steel EN 1.4301 (AISI 304)
3.0 - ImpellerReinforced technopolymer
4.0 - Pump shaftStainless steel EN 1.4301 (AISI 304)
4.2 - Towing jointStainless steel EN 1.4404 (AISI 316L)
5.0 - Stadium boxStainless steel EN 1.4301 (AISI 304)
5.1 - DiffuserReinforced technopolymer
7.0 - LanternStainless steel EN 1.4301 (AISI 304)
7.1 - Check ValveStainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirtStainless steel EN 1.4301 (AISI 304)
7.3 - Cable coverStainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/FilterStainless steel EN 1.4301 (AISI 304)
