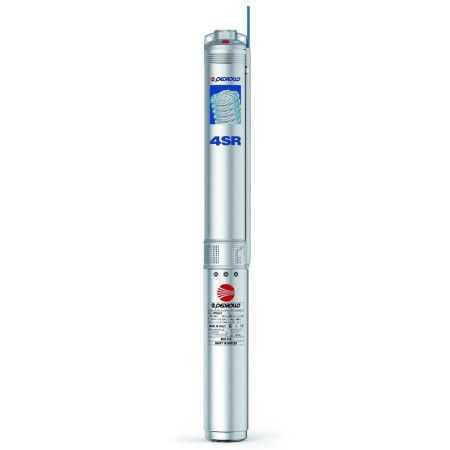

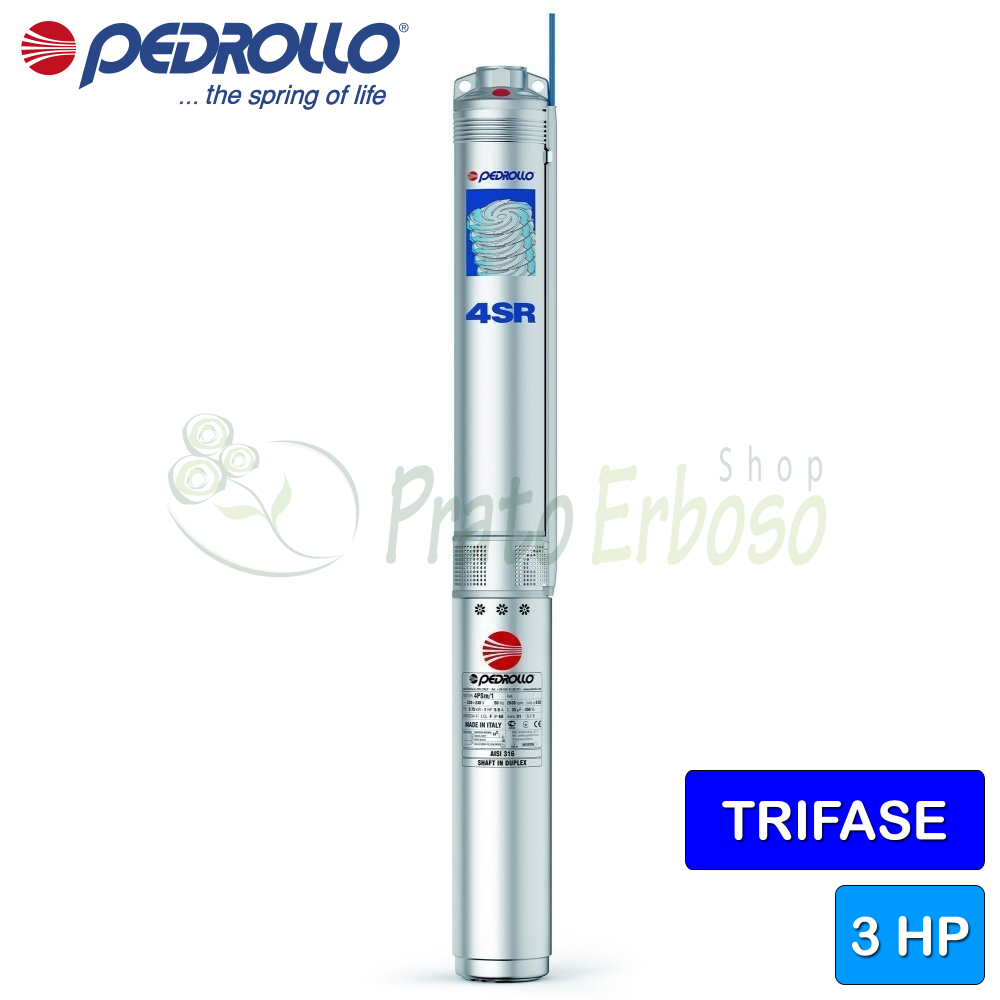

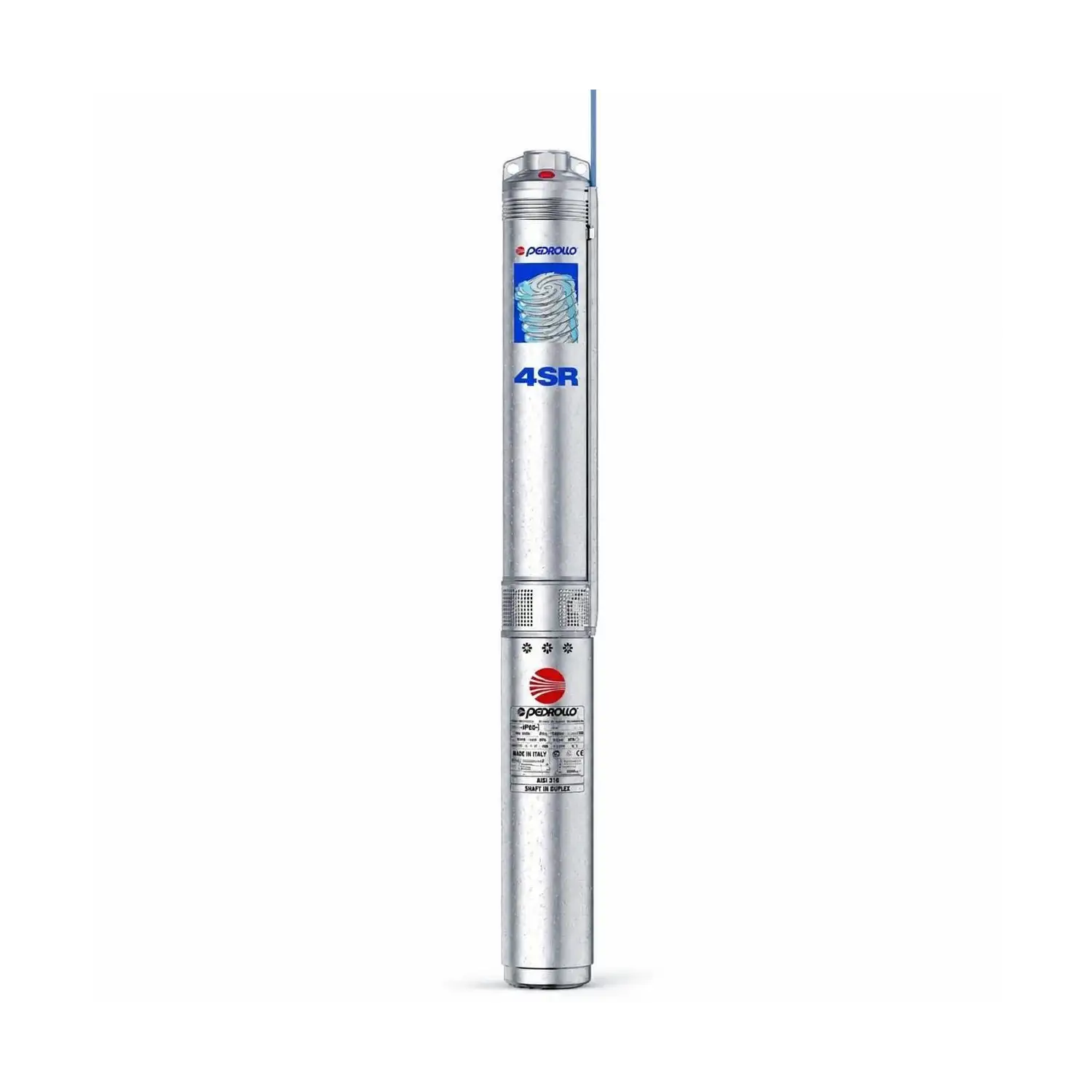

4SR 18/9 N-PS - 3 HP three-phase submersible electric pump

Flow rate up to 450 l/min (27 m³/h). Head up to 53.5 metres. 2.2 kW (3 HP) motor.

€675.03 Tax included

€553.30 Tax excluded

€1,227.32-45%

Variants:
4SR 18/4 N-PS - Elettropompa sommersa trifase da 1.5 HP
4SR 18/6 N-PS - Elettropompa sommersa trifase da 2 HP
4SR 18/9 N-PS - Elettropompa sommersa trifase da 3 HP
4SR 18/12 N-PS - Elettropompa sommersa trifase da 4 HP
4SR 18/16 N-PS - Elettropompa sommersa trifase da 5.5 HP
4SR 18/22 N-PS - Elettropompa sommersa trifase da 7.5 HP
4SR 18/30 N-PS - Elettropompa sommersa trifase da 10 HP
There are no reviews yet
Close
Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

4SR 18/9 N-PS - 3 HP three-phase submersible electric pump
  • Use dot instead of comma

Loading

Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description

The 4SR 18/9 N-PS submersible electric pump from the 4SR series by Pedrollo guarantees exceptional performance and efficiency.

The refined hydraulic design ensures exceptional performance and remarkable wear resistance.

Among the best in the 4-inch submersible category.

The 4SR 18/9 N-PS is equipped with a patented inductor which guarantees a high priming capacity.

It can be installed both horizontally and vertically up to 300 meters below water level.

Data sheet
Pedrollo
4SR 18/9 N-PS
50 Items
49481809WNA
Motor connection
THREE-PHASE
Power (Kw)
2.2
Power (HP)
3
Current consumption at 400V (A)
6.0
Delivery mouth
2"
Pump body
AISI 304 stainless steel
Impeller
Noryl
Number of impellers
9
Minimum flow rate (l./min.)
50
Max. flow rate (l./min.)
450
Min. head (m.)
15
Max. head (m.)
53.5
Cable length (m.)
2
Max. liquid temperature (°C)
+35°C
Height (cm)
115.6
External diameter (cm)
9.8
Weight (Kg)
19.7
Attachments

4SR N Technical Data Sheet

Performance, construction characteristics and operating curves of Pedrollo 4SR N series pumps with PD rewindable and PS encapsulated motors.

file_download Download (2.91MB)

Buy it with

  • 4SR 18/9 N-PS - 3 HP three-phase submersible electric pump
  • +
  • E1 TRI/1 - Electrical panel for three-phase electric pump 7.5 HP
  • +
  • FYG 22 - Adjustable single-phase pressure switch 7 bar
  • +
  • 8 VT - vertical Tank 8 litres
  • +
  • VR 2 - 2 "non-return valve
  • €1,080.73-10 %
    Total price: €972.66
Construction data of the 4SR-N series
Cutaway of 4SR-N pumps
Bearings
Pump bearing - fixed partAnti-friction polymer
Pump bearing - rotating partSintered AISI 316 steel with ceramic coating
Tree holding
Materials
1.3 - Delivery bodyStainless steel EN 1.4301 (AISI 304)
3.0 - ImpellerReinforced technopolymer
4.0 - Pump shaftStainless steel EN 1.4301 (AISI 304)
4.2 - Towing jointStainless steel EN 1.4404 (AISI 316L)
5.0 - Stadium boxStainless steel EN 1.4301 (AISI 304)
5.1 - DiffuserReinforced technopolymer
7.0 - LanternStainless steel EN 1.4301 (AISI 304)
7.1 - Check ValveStainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirtStainless steel EN 1.4301 (AISI 304)
7.3 - Cable coverStainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/FilterStainless steel EN 1.4301 (AISI 304)
Models and performance 4SR 18-N
TYPE
three-phase
4SR 15/4-N
4SR 15/6-N
4SR 15/9-N
4SR 15/12-N
4SR 15/16-N
4SR 15/22-N
4SR 15/30-N
POWER
KWHP
1.11.5
1.52
2.23
34
45.5
5.57.5
7.510
