-45%

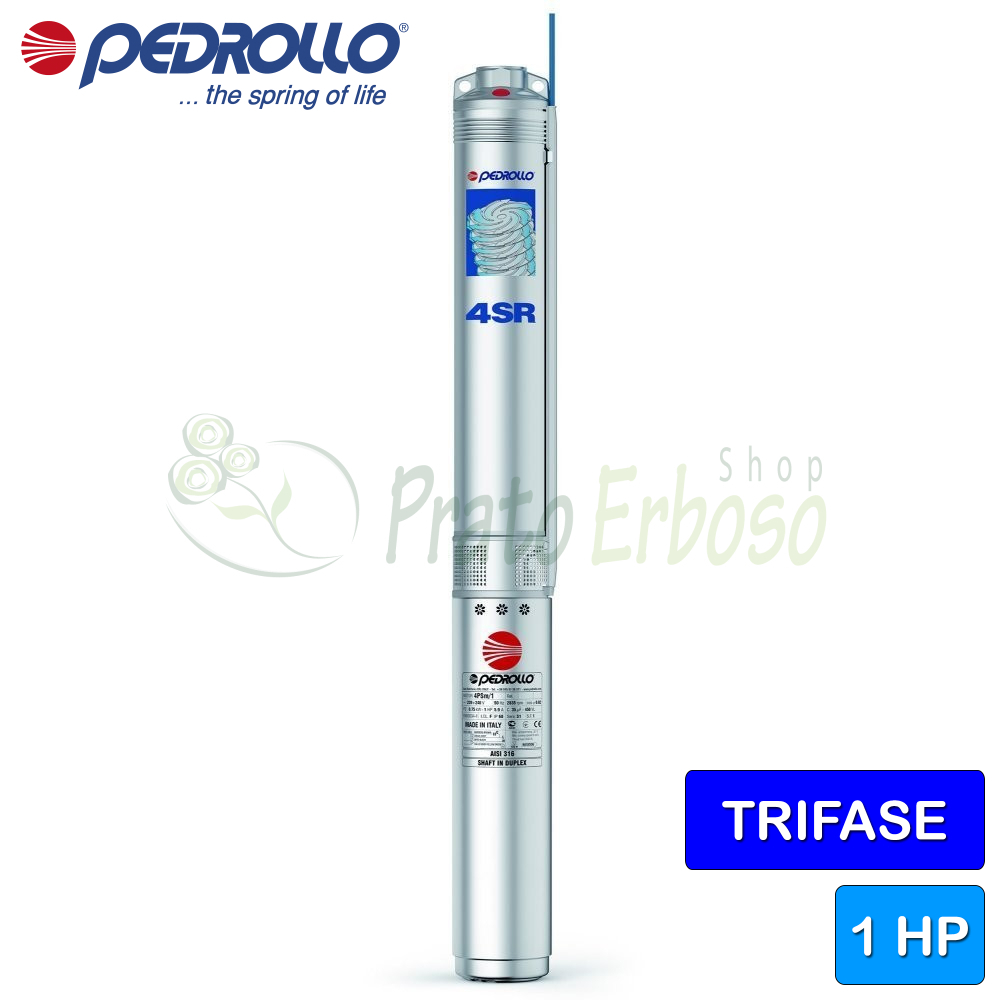

4SR 1.5/15 S-PS - 1 HP three-phase submersible electric pump

Name: 4SR 1.5/15 S-PS - 1 HP three-phase submersible electric pump
Brand: Pedrollo
SKU: 4SR 1.5/15 S-PS
Price: 487.82 EUR
Availability: InStock

Flow rate up to 45 l/min (2.7 m³/h). Head up to 109 metres. 0.75 kW (1 HP) motor.

Variants:

Order it before 12:00 and receive it between Wednesday 8 July and Thursday 9 July with Mail Boxes - 2 giorni

Delivery Options

Carrier		Description	Estimated Delivery
	Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Wednesday 8 July - Thursday 9 July
	Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Wednesday 8 July - Thursday 9 July

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Wednesday 8 July - Thursday 9 July

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Wednesday 8 July - Thursday 9 July

There are no reviews yet

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The 4SR 1.5/15 S-PS submersible electric pump from the 4SR series by Pedrollo is recommended for domestic, civil and agricultural installations.

Equipped with an innovative inductor that guarantees a high priming capacity for operation in wells with the presence of gas or air mixed in the water.

It can pump clean water with a maximum sand content of 200 grams per cubic meter.

The 4SR 1.5/15 S-PS delivers exceptional performance and efficiency combined with premium construction.

It also offers excellent resistance to wear, caused by the presence of sand, and to corrosion.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 0.75
Power (HP): 1
Delivery mouth: 1" 1/4
Degree of protection: IP 68
Minimum flow rate (l./min.): 5
Max. flow rate (l./min.): 45
Min. head (m.): 36
Max. head (m.): 109
Cable length (m.): 2
Weight (Kg): 15
Warranty (years): 2

Attachments

4SR S Technical Data Sheet

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo 4SR-S series pumps.

Download (2.91MB)

Models and performance 4SR 1.5-S

GUY

three-phase

4SR 1.5/7-S

4SR 1.5/11-S

4SR 1.5/15-S

4SR 1.5/22-S

4SR 1.5/30-S

4SR 1.5/44-S

POWER
KW	HP
0.37	0.50
0.55	0.75
0.75	1
1.1	1.5
1.5	2
2.2	3

IMPELLERS
number
7
11
15
22
30
44

PERFORMANCE
Q litres/min	H meters
5 ÷ 45	51.5 ÷ 17
5 ÷ 45	81 ÷ 26.5
5 ÷ 45	109 ÷ 36
5 ÷ 45	158 ÷ 52.5
5 ÷ 45	213 ÷ 70
5 ÷ 45	304 ÷ 100

MOUTH
DN
1 1/4"

Q	m³/hour	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7
Q	l/min	0	5	10	15	20	25	30	35	40	45
H	meters	51.5	50	48.5	46	43.5	40	36	30.5	24.5	17
		81	78	75	72	67.5	62.5	55.5	48	38	26.5
		109	106	102	97	Ninety two	84	76	64.5	51.5	36
		158	154	148	141	133	122	109	94	75	52.5
		213	206	199	190	178	164	147	126	100	70
		304	295	284	271	255	235	210	180	144	100

Construction data of the 4SR-S series

Bearings

Pump bearing - fixed part	Anti-friction polymer
Pump bearing - rotating part	Sintered AISI 316 steel with ceramic coating

Tree holding

Materials

1.3 - Delivery body	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4301 (AISI 304)
4.2 - Towing joint	Stainless steel EN 1.4404 (AISI 316L)
5.0 - Stadium box	Stainless steel EN 1.4301 (AISI 304)
5.1 - Diffuser	Reinforced technopolymer
7.0 - Lantern	Stainless steel EN 1.4301 (AISI 304)
7.1 - Check Valve	Stainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
7.3 - Cable cover	Stainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/Filter	Stainless steel EN 1.4301 (AISI 304)
