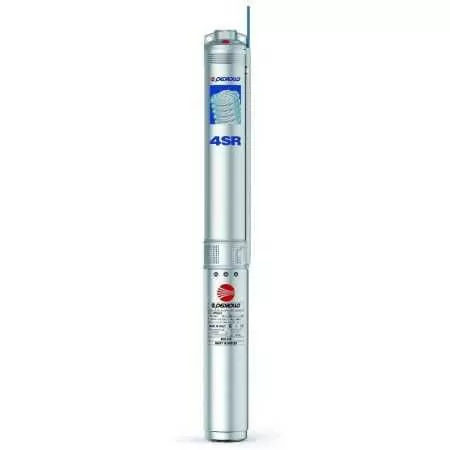

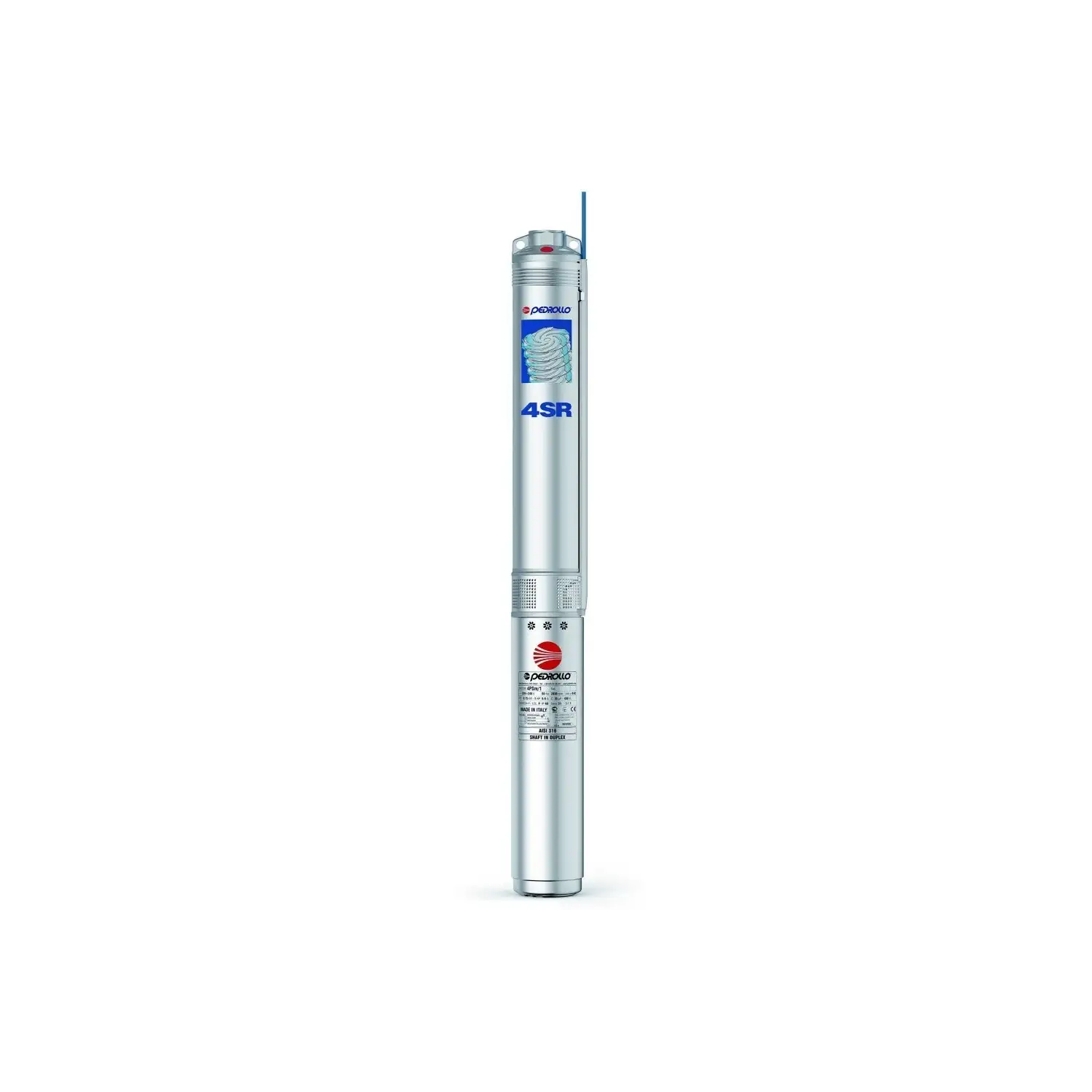

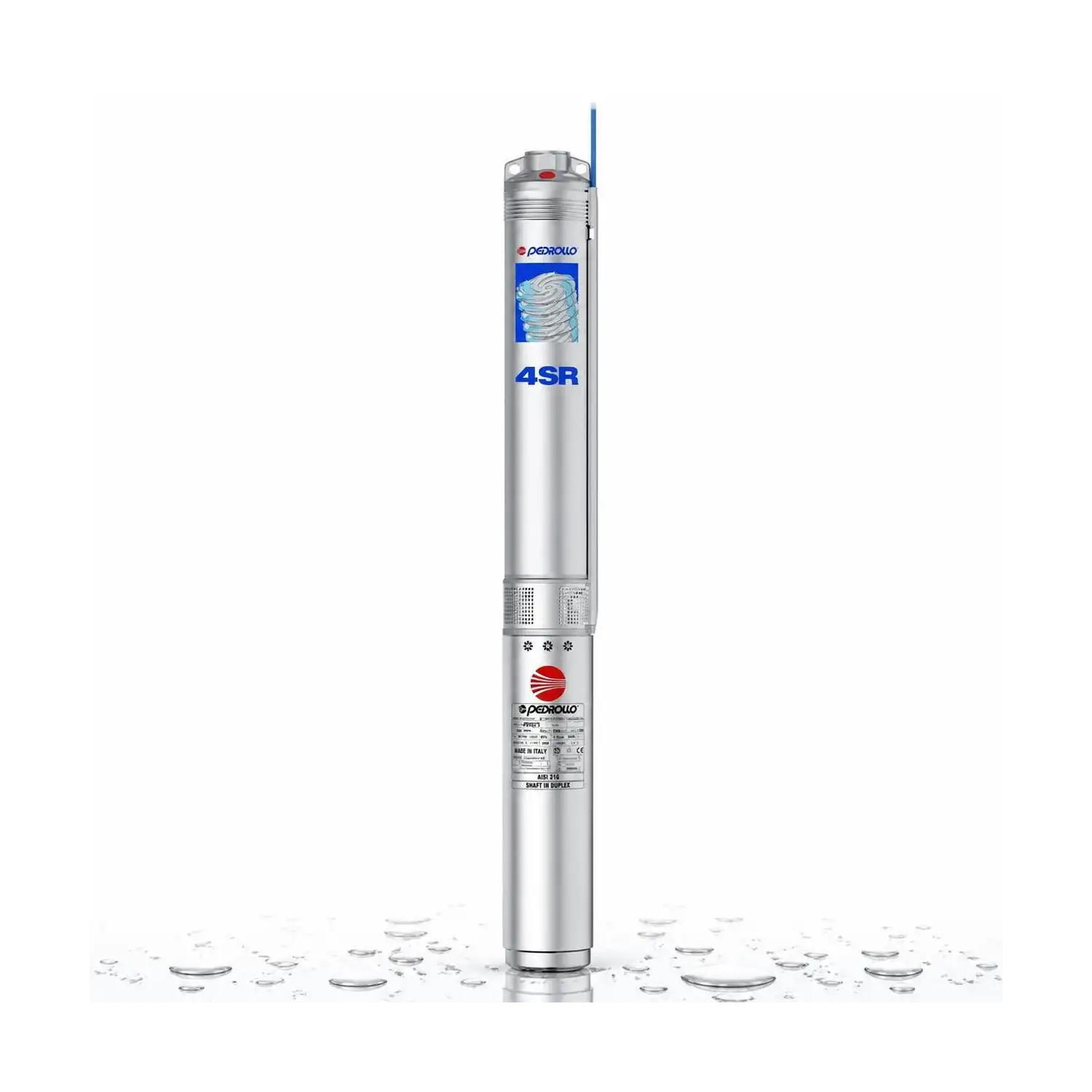

4SR 2/17 S-PS - 1.5 HP single-phase submersible electric pump

Name: 4SR 2/17 S-PS - 1.5 HP single-phase submersible electric pump
Brand: Pedrollo
SKU: 4SR 2/17 S-PS
Price: 497.21 EUR
Availability: InStock

Flow rate up to 65 l/min (3.9 m³/h). Head up to 133 meters. 1.1 kW (1.5 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The 4SR 2/17 S-PS submersible electric pump from the 4SR series by Pedrollo guarantees exceptional performance and efficiency.

The refined hydraulic design ensures exceptional performance and remarkable wear resistance.

Among the best in the 4-inch submersible category.

The 4SR 2/17 S-PS is equipped with a patented inductor which guarantees a high priming capacity.

It can be installed both horizontally and vertically up to 200 meters below water level.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 1.1
Power (HP): 1.5
Delivery mouth: 1" 1/4
Degree of protection: IP 68
Minimum flow rate (l./min.): 10
Max. flow rate (l./min.): 65
Min. head (m.): 36.5
Max. head (m.): 133
Cable length (m.): 2
Weight (Kg): 18
Warranty (years): 2

Attachments

4SR S Technical Data Sheet

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo 4SR-S series pumps.

Download (2.91MB)

4SR 2-S Models and Performance

GUY

three-phase

4SR 2/6-S

4SR 2/9-S

4SR 2/12-S

4SR 2/17-S

4SR 2/23-S

4SR 2/33-S

4SR 2/44-S

POWER
KW	HP
0.37	0.50
0.55	0.75
0.75	1
1.1	1.5
1.5	2
2.2	3
3	4

IMPELLERS
number
6
9
12
17
23
33
44

PERFORMANCE
Q litres/min	H meters
10 ÷ 65	47 ÷ 13
10 ÷ 65	70 ÷ 19.5
10 ÷ 65	94 ÷ 25.5
10 ÷ 65	133 ÷ 36.5
10 ÷ 65	179 ÷ 49
10 ÷ 65	257 ÷ 71
10 ÷ 65	343 ÷ 94

MOUTH
DN
1 1/4"

Q	m³/hour	0	0.6	1.2	1.8	2.4	3.0	3.6	3.9
Q	l/min	0	10	20	30	40	50	60	65
H	meters	47	45	42	38	33	26.4	17.9	13
		70	67	63	57.5	49.5	39.5	26.8	19.5
		94	90	84	76	66	53	36	25.5
		133	127	119	108	94	75	50.5	36.5
		179	172	161	146	127	101	68.5	49
		257	246	231	210	182	145	98	71
		343	328	308	280	243	194	131	94
