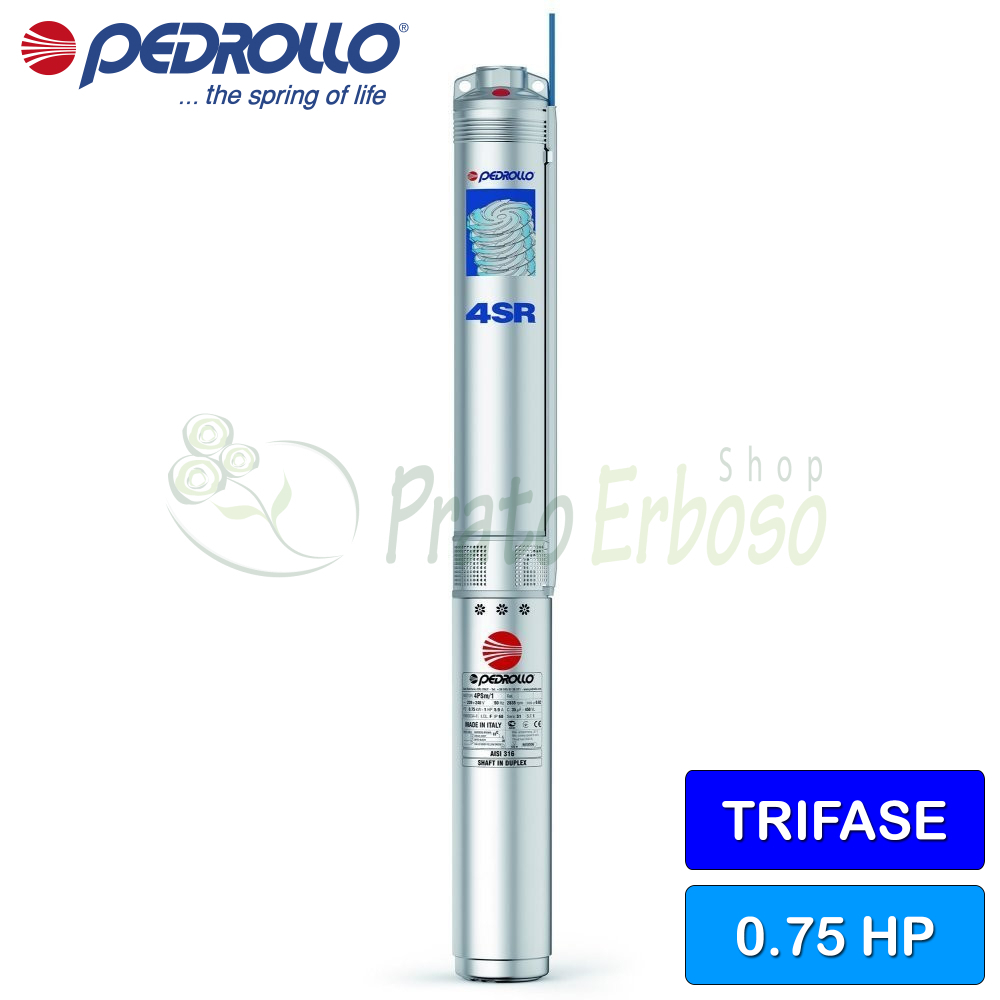

4SR 2/9 S-PS - 0.75 HP three-phase submersible electric pump
Flow rate up to 65 l/min (3.9 m³/h). Head up to 70 meters. 0.55 kW (0.75 HP) motor.
The 4SR 2/9 S-PS submersible electric pump from the 4SR series by Pedrollo allows for considerable energy savings.
The stainless steel used by Pedrollo gives it solidity, robustness and allows it to last over time.
Considered among the best in the inch submersible category.
The 4SR 2/9 S-PS is recommended for installations in the agricultural, civil and domestic sectors, in particular for the distribution of water in conjunction with pressure tanks, for irrigation, for washing systems and for pressure boosting.
It can be installed both horizontally and vertically up to 300 meters below water level.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Delivery mouth
- 1" 1/4
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 65
- Min. head (m.)
- 19.5
- Max. head (m.)
- 70
- Cable length (m.)
- 2
- Weight (Kg)
- 12
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4404 (AISI 316L) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
-
