4SR 6/43 S-PS - 7.5 HP three-phase submersible electric pump Pedrollo - 1
zoom_out_map
chevron_left chevron_right
-45%

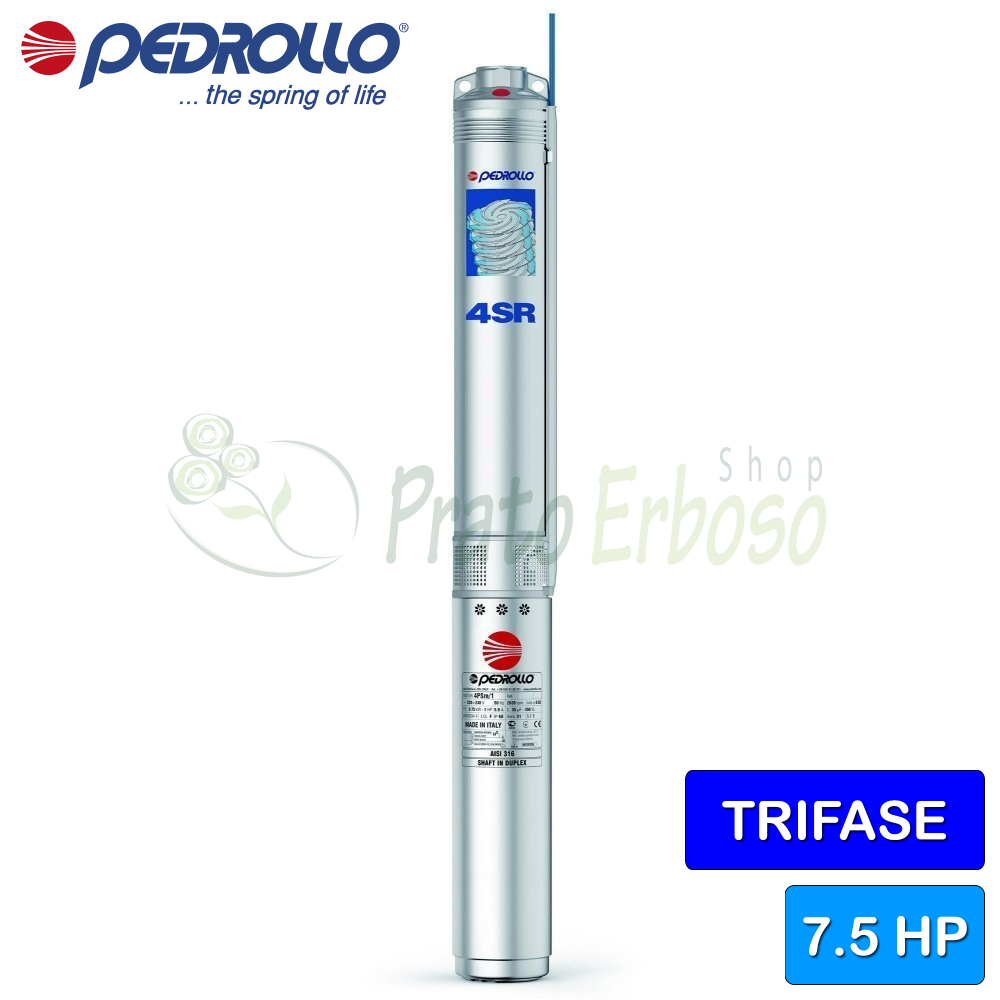

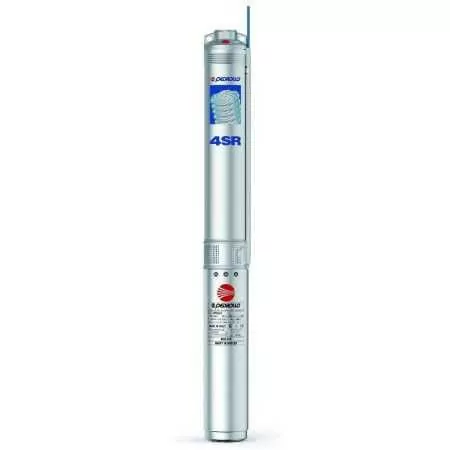

4SR 6/43 S-PS - 7.5 HP three-phase submersible electric pump

Flow rate up to 150 l/min (9 m³/h). Head up to 284 meters. 5.5 kW (7.5 HP) motor.

€1,253.43 Tax included

€1,027.40 Tax excluded

€2,278.96-45%

Variants:
4SR 6/4 S-PS - Elettropompa sommersa trifase da 0.75 HP
4SR 6/6 S-PS - Elettropompa sommersa trifase da 1 HP
4SR 6/9 S-PS - Elettropompa sommersa trifase da 1.5 HP
4SR 6/13 S-PS - Elettropompa sommersa trifase da 2 HP
4SR 6/17 S-PS - Elettropompa sommersa trifase da 3 HP
4SR 6/24 S-PS - Elettropompa sommersa trifase da 4 HP
4SR 6/32 S-PS - Elettropompa sommersa trifase da 5.5 HP
4SR 6/43 S-PS - Elettropompa sommersa trifase da 7.5 HP
4SR 6/58 S-PS - Elettropompa sommersa trifase da 10 HP
There are no reviews yet
Close
Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

4SR 6/43 S-PS - 7.5 HP three-phase submersible electric pump
  • Use dot instead of comma

Loading

Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description

The 4SR 6/43 S-PS submersible electric pump from the 4SR series by Pedrollo guarantees exceptional performance and efficiency.

The refined hydraulic design ensures exceptional performance and remarkable wear resistance.

Among the best in the 4-inch submersible category.

The 4SR 6/43 S-PS is equipped with a patented inductor which guarantees a high priming capacity.

It can be installed both horizontally and vertically up to 200 meters below water level.

Data sheet
Pedrollo
4SR 6/43 S-PS
10 Items
49480643WNA
Motor connection
THREE-PHASE
Power (Kw)
5.5
Power (HP)
7.5
Delivery mouth
2"
Degree of protection
IP 68
Minimum flow rate (l./min.)
25
Max. flow rate (l./min.)
150
Min. head (m.)
104
Max. head (m.)
284
Cable length (m.)
2
Weight (Kg)
40
Warranty (years)
2
Attachments

4SR S Technical Data Sheet

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo 4SR-S series pumps.

file_download Download (2.91MB)

Buy it with

  • 4SR 6/43 S-PS - 7.5 HP three-phase submersible electric pump
  • +
  • E1 TRI/1 - Electrical panel for three-phase electric pump 7.5 HP
  • +
  • FYG 22 - Adjustable single-phase pressure switch 7 bar
  • +
  • 8 VT - vertical Tank 8 litres
  • +
  • VR 2 - 2 "non-return valve
  • €1,659.13-10 %
    Total price: €1,493.22
Models and performances 4SR 6-S
GUY
three-phase
4SR 6/4-S
4SR 6/6-S
4SR 6/9-S
4SR 6/13-S
4SR 6/17-S
4SR 6/24-S
4SR 6/32-S
4SR 6/43-S
4SR 6/58-S
POWER
KWHP
0.550.75
0.751
1.11.5
1.52
2.23
34
45.5
5.57.5
7.510
Construction data of the 4SR-S series
4SR 1 pump cutaway
Bearings
Pump bearing - fixed partAnti-friction polymer
Pump bearing - rotating partSintered AISI 316 steel with ceramic coating
Tree holding
Materials
1.3 - Delivery bodyStainless steel EN 1.4301 (AISI 304)
3.0 - ImpellerReinforced technopolymer
4.0 - Pump shaftStainless steel EN 1.4301 (AISI 304)
4.2 - Towing jointStainless steel EN 1.4404 (AISI 316L)
5.0 - Stadium boxStainless steel EN 1.4301 (AISI 304)
5.1 - DiffuserReinforced technopolymer
7.0 - LanternStainless steel EN 1.4301 (AISI 304)
7.1 - Check ValveStainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirtStainless steel EN 1.4301 (AISI 304)
7.3 - Cable coverStainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/FilterStainless steel EN 1.4301 (AISI 304)
Construction data of the 4SR 6/24 series
4SR pump cutaway
Bearings
Pump bearing - fixed partAnti-friction polymer
Pump bearing - rotating partSintered AISI 316 steel with ceramic coating
Tree holding
Materials
1.3 - Delivery bodyStainless steel EN 1.4301 (AISI 304)
3.0 - ImpellerReinforced technopolymer
4.0 - Pump shaftStainless steel EN 1.4301 (AISI 304)
4.2 - Towing jointStainless steel EN 1.4301 (AISI 304)
5.0 - Stadium boxStainless steel EN 1.4301 (AISI 304)
5.1 - DiffuserReinforced technopolymer
7.0 - LanternStainless steel EN 1.4301 (AISI 304)
7.1 - Check ValveStainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirtStainless steel EN 1.4301 (AISI 304)
7.3 - Cable coverStainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/FilterStainless steel EN 1.4301 (AISI 304)
