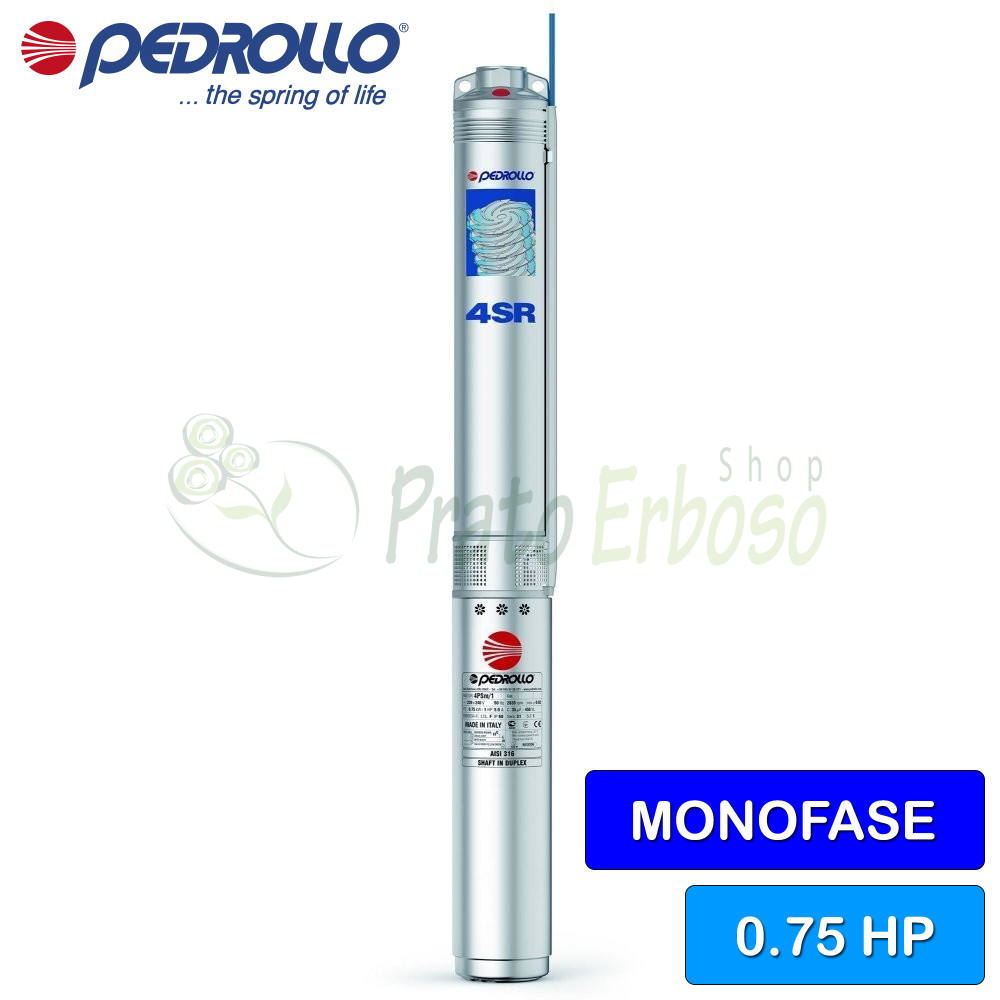

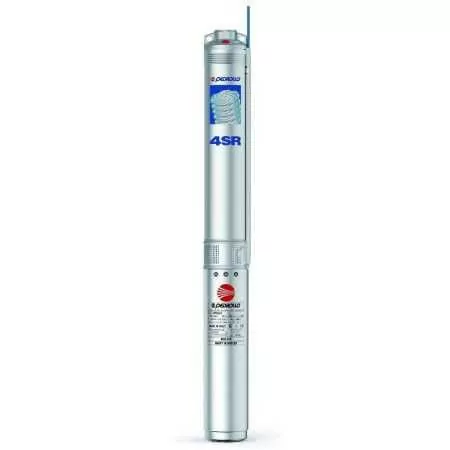

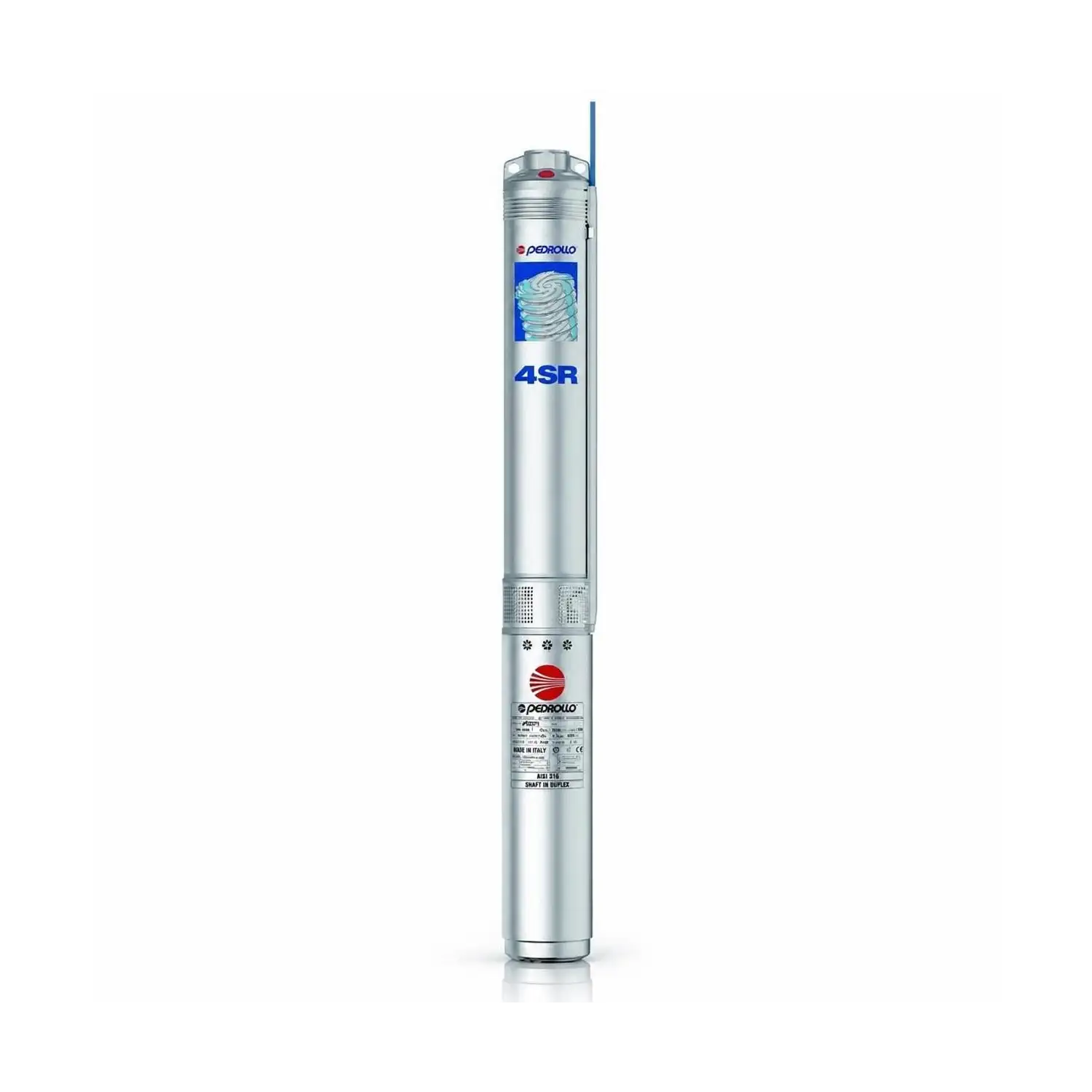

4SRm 1/15 S-PS - 0.75 HP single-phase submersible electric pump
Flow rate up to 30 l/min (1.8 m³/h). Head up to 105 meters. 0.55 kW (0.75 HP) motor.
The 4SRm 1/15 S-PS submersible electric pump from the 4SR series by Pedrollo , thanks to its refined design, offers exceptional performance and efficiency.
Recommended for agricultural, civil and domestic installations.
Its high efficiency and reliability make it suitable for water distribution in conjunction with pressure tanks, for irrigation, for washing systems and for pressure boosting.
The 4SRm 1/15 S-PS, thanks also to its resistance to wear and corrosion, is among the best in the 4-inch submersible category.
It can pump clean water with a maximum of 200 grams of sand per cubic meter.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Delivery mouth
- 1" 1/4
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 30
- Min. head (m.)
- 46.5
- Max. head (m.)
- 105
- Cable length (m.)
- 2
- Weight (Kg)
- 13
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4404 (AISI 316L) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
-
