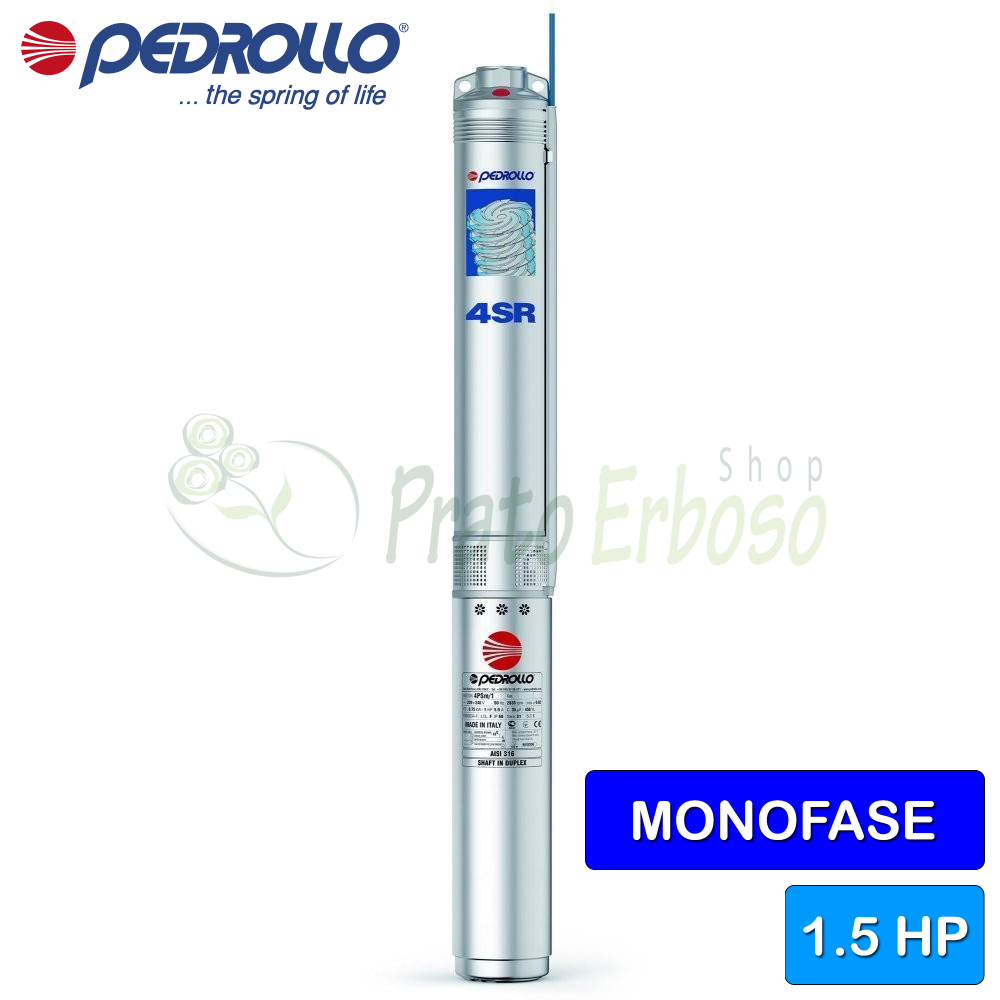

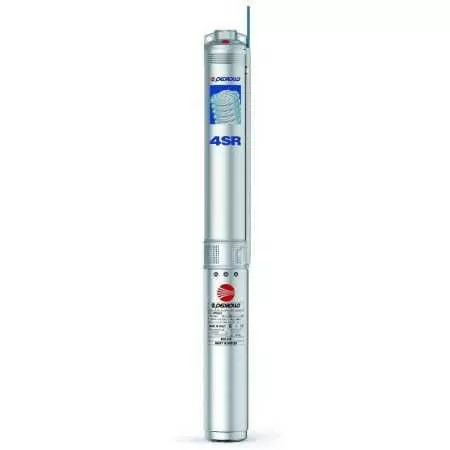

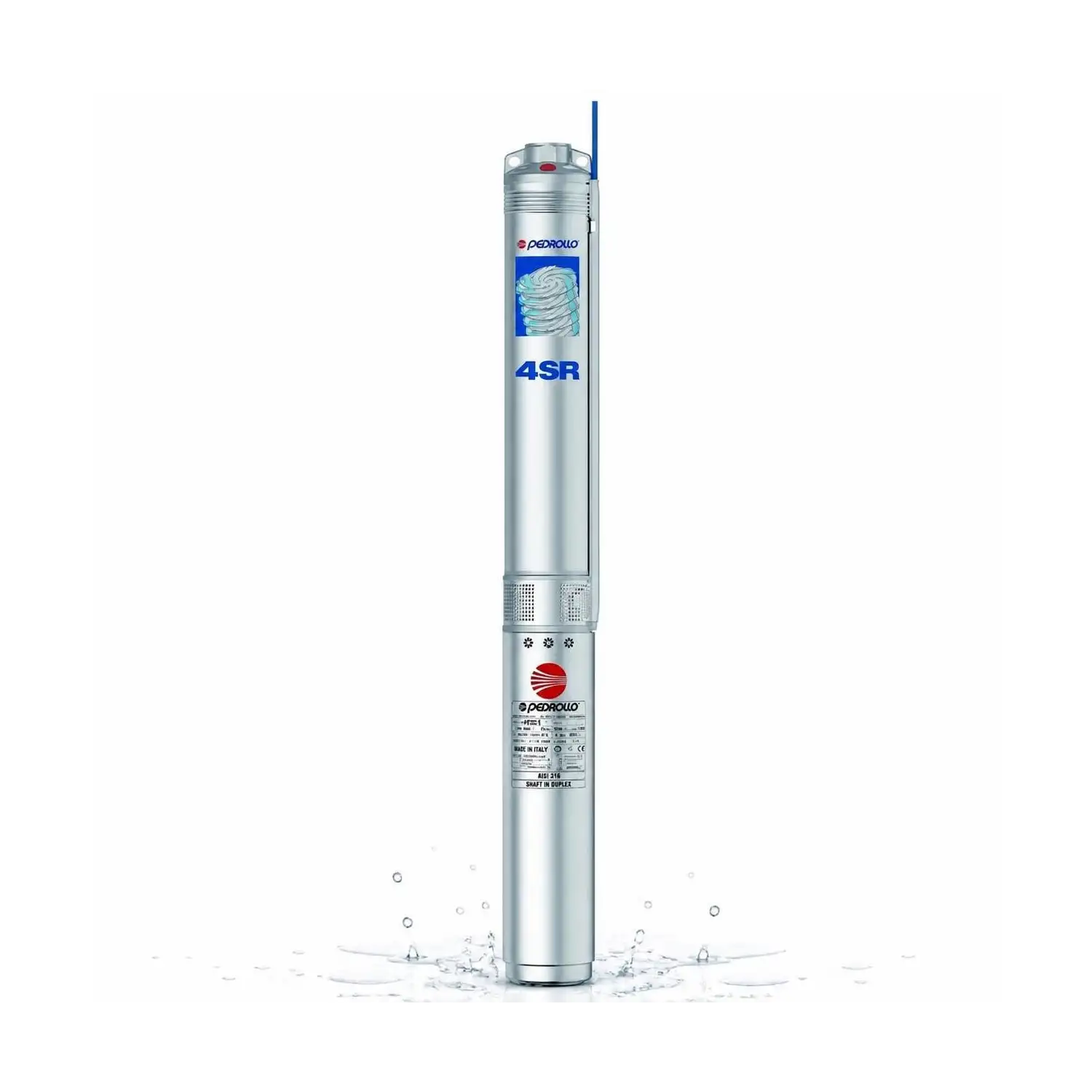

4SRm 1/29 S-PS - 1.5 HP single-phase submersible electric pump
Flow rate up to 30 l/min (1.8 m³/h). Head up to 203 meters. 1.1 Kw (1.5 HP) motor.
The PEDROLLO 4SRm 1/29 S-PS is recommended for pumping clean water with a sand content not exceeding 150 grams per cubic metre.
It has a flow rate that varies from 5 to 30 litres per minute with a head of 90 to 203 metres.
Due to its high performance and reliability, it is suitable for domestic, civil and industrial use, for the distribution of water in combination with pressure tanks, for irrigation of vegetable gardens and gardens, for washing systems, for pressure raising or for fire-fighting systems.
Submersible electric pump with encapsulated PEDROLLO motor.
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Delivery port
- 1 "1/4
- Degree of protection
- IP 68
- Flow rate min. (l./min.)
- 5
- Max flow (l./min.)
- 30
- Min head (m.)
- 94
- Max head (m.)
- 201
- Cable length (m)
- 2
- Weight kg)
- 18
- Guarantee
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4404 (AISI 316L) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 4SRm 1/29 S-PS - 1.5 HP single-phase submersible electric pumpThis product Flow rate up to 30 l/min (1.8 m³/h). Head up to 203 meters. 1.1 Kw (1.5 HP) motor. |  4SRm 1/15 S-PS - 0.75 HP single-phase submersible electric pumpFlow rate up to 30 l/min (1.8 m³/h). Head up to 105 meters. 0.55 Kw (0.75 HP) motor. |  4SRm 1/20 S-PS - 1 HP single-phase submersible electric pumpFlow rate up to 30 l/min (1.8 m³/h). Head up to 140 meters. 0.75 Kw (1 HP) motor. |  4SRm 1/39 S-PS - 2 HP single-phase submersible electric pumpFlow rate up to 30 l/min (1.8 m³/h). Head up to 273 meters. 1.5 Kw (2 HP) motor. | |
|---|---|---|---|---|
| Motor connection | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE |
| Power (Kw) | Power (Kw) 1.1 | Power (Kw) 0.55 | Power (Kw) 0.75 | Power (Kw) 1.5 |
| Power (HP) | Power (HP) 1.5 | Power (HP) 0.75 | Power (HP) 1 | Power (HP) 2 |
| Delivery port | Delivery port 1 "1/4 | Delivery port 1 "1/4 | Delivery port 1 "1/4 | Delivery port 1 "1/4 |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Flow rate min. (l./min.) | Flow rate min. (l./min.) 5 | Flow rate min. (l./min.) 5 | Flow rate min. (l./min.) 5 | Flow rate min. (l./min.) 5 |
| Max flow (l./min.) | Max flow (l./min.) 30 | Max flow (l./min.) 30 | Max flow (l./min.) 30 | Max flow (l./min.) 30 |
| Min head (m.) | Min head (m.) 94 | Min head (m.) 48.5 | Min head (m.) 65 | Min head (m.) 127 |
| Max head (m.) | Max head (m.) 201 | Max head (m.) 104 | Max head (m.) 139 | Max head (m.) 271 |
| Cable length (m) | Cable length (m) 2 | Cable length (m) 2 | Cable length (m) 2 | Cable length (m) 2 |
| Weight kg) | Weight kg) 18 | Weight kg) 13 | Weight kg) 16 | Weight kg) 23 |
| Guarantee | Guarantee 2 | Guarantee 2 | Guarantee 2 | Guarantee 2 |
