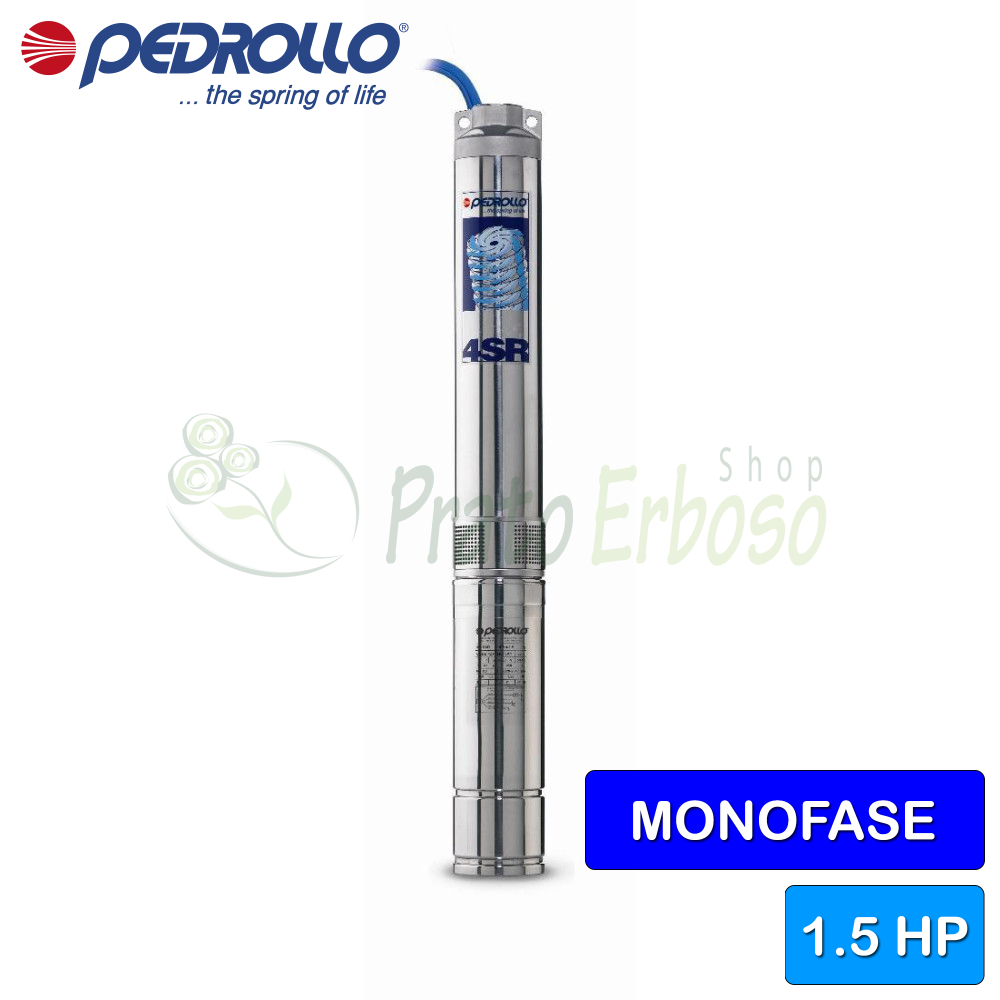

4SRm 1/29 S-PD - 1.5 HP single-phase submersible electric pump

Name: 4SRm 1/29 S-PD - 1.5 HP single-phase submersible electric pump
Brand: Pedrollo
SKU: 4SRm 1/29 S-PD
Price: 506.61 EUR
Availability: InStock

Flow rate up to 30 l/min (1.8 m³/h). Head up to 203 meters. 1.1 kW (1.5 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The 4SRm 1/29 S-PD submersible electric pump from the 4SR series by Pedrollo is recommended for domestic, civil and agricultural installations.

Equipped with an innovative inductor that guarantees a high priming capacity for operation in wells with the presence of gas or air mixed in the water.

It can pump clean water with a maximum sand content of 200 grams per cubic meter.

The 4SRm 1/29 S-PD delivers exceptional performance and efficiency combined with premium construction.

It also offers excellent resistance to wear, caused by the presence of sand, and to corrosion.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 1.1
Power (HP): 1.5
Delivery mouth: 1" 1/4
Degree of protection: IP 68
Minimum flow rate (l./min.): 5
Max. flow rate (l./min.): 30
Min. head (m.): 90
Max. head (m.): 203
Cable length (m.): 2
Jobs: irrigation
Weight (Kg): 19
Warranty (years): 2

Attachments

4SR S Technical Data Sheet

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo 4SR-S series pumps.

Download (2.91MB)

Models and performance 4SRm 1-S

TYPE

three phase

4SRm 1/10-S

4SRm 1/15-S

4SRm 1/20-S

4SRm 1/29-S

4SRm 1/39-S

4SRm 1/50-S

POWER
KW	HP
0.37	0.50
0.55	0.75
0.75	1
1.1	1.5
1.5	2
2.2	3

IMPELLERS
number
10
15
20
29
39
50

PERFORMANCES
Q liters/min	H meters
5 ÷ 30	72 ÷ 32.5
5 ÷ 30	108 ÷ 48.5
5 ÷ 30	144 ÷ 65
5 ÷ 30	208 ÷ 94
5 ÷ 30	280 ÷ 127
5 ÷ 30	350 ÷ 155

MOUTH
DN
1 1/4"

Q	m³/hour	0	0.3	0.6	0.9	1.2	1.5	1.8
Q	l/min	0	5	10	15	20	25	30
H	meters	72	69.5	65.5	60.5	53.5	44	32.5
		108	104	99	91	80	66	48.5
		144	139	131	121	107	88	65
		208	201	190	175	154	128	94
		280	271	256	236	208	172	127
		350	338	320	294	258	213	155

Construction data of the 4SR-S series

Bearings

Pump bearing - fixed part	Anti-friction polymer
Pump bearing - rotating part	Sintered AISI 316 steel with ceramic coating

Tree holding

Materials

1.3 - Delivery body	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4301 (AISI 304)
4.2 - Towing joint	Stainless steel EN 1.4404 (AISI 316L)
5.0 - Stadium box	Stainless steel EN 1.4301 (AISI 304)
5.1 - Diffuser	Reinforced technopolymer
7.0 - Lantern	Stainless steel EN 1.4301 (AISI 304)
7.1 - Check Valve	Stainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
7.3 - Cable cover	Stainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/Filter	Stainless steel EN 1.4301 (AISI 304)
