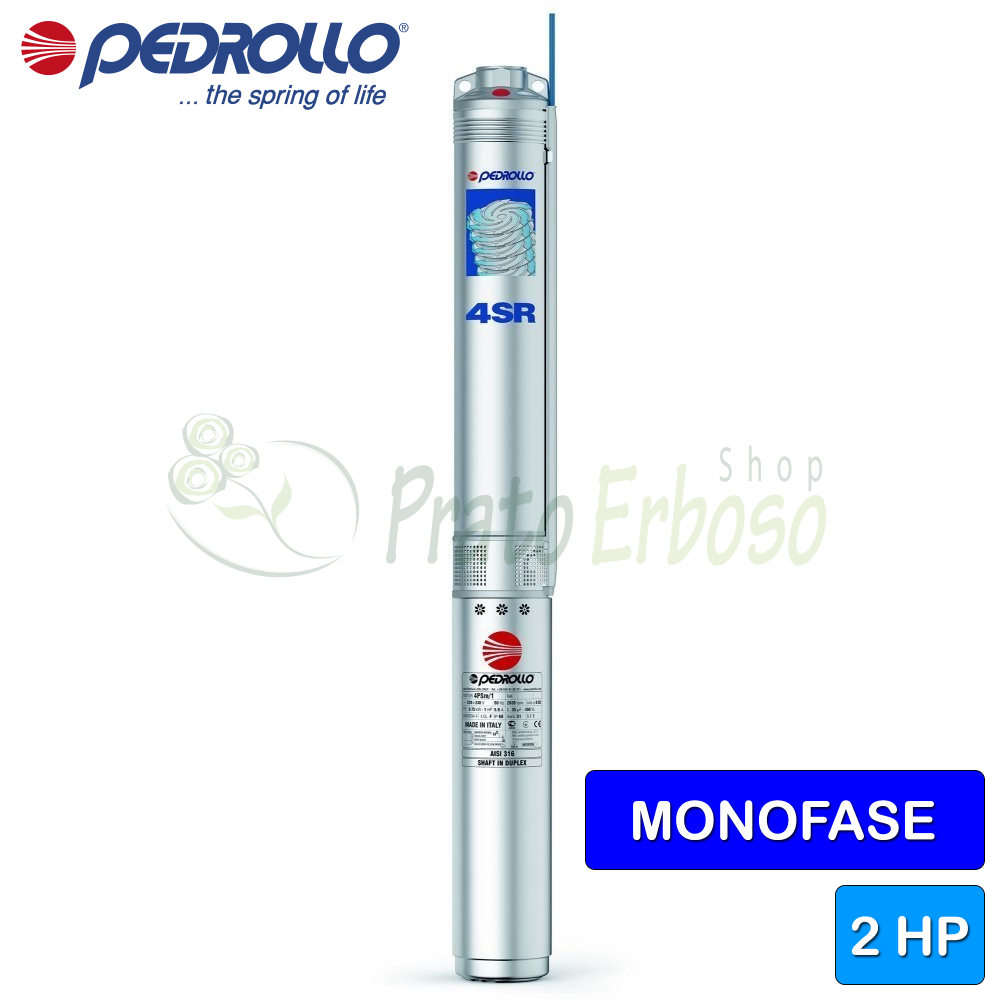

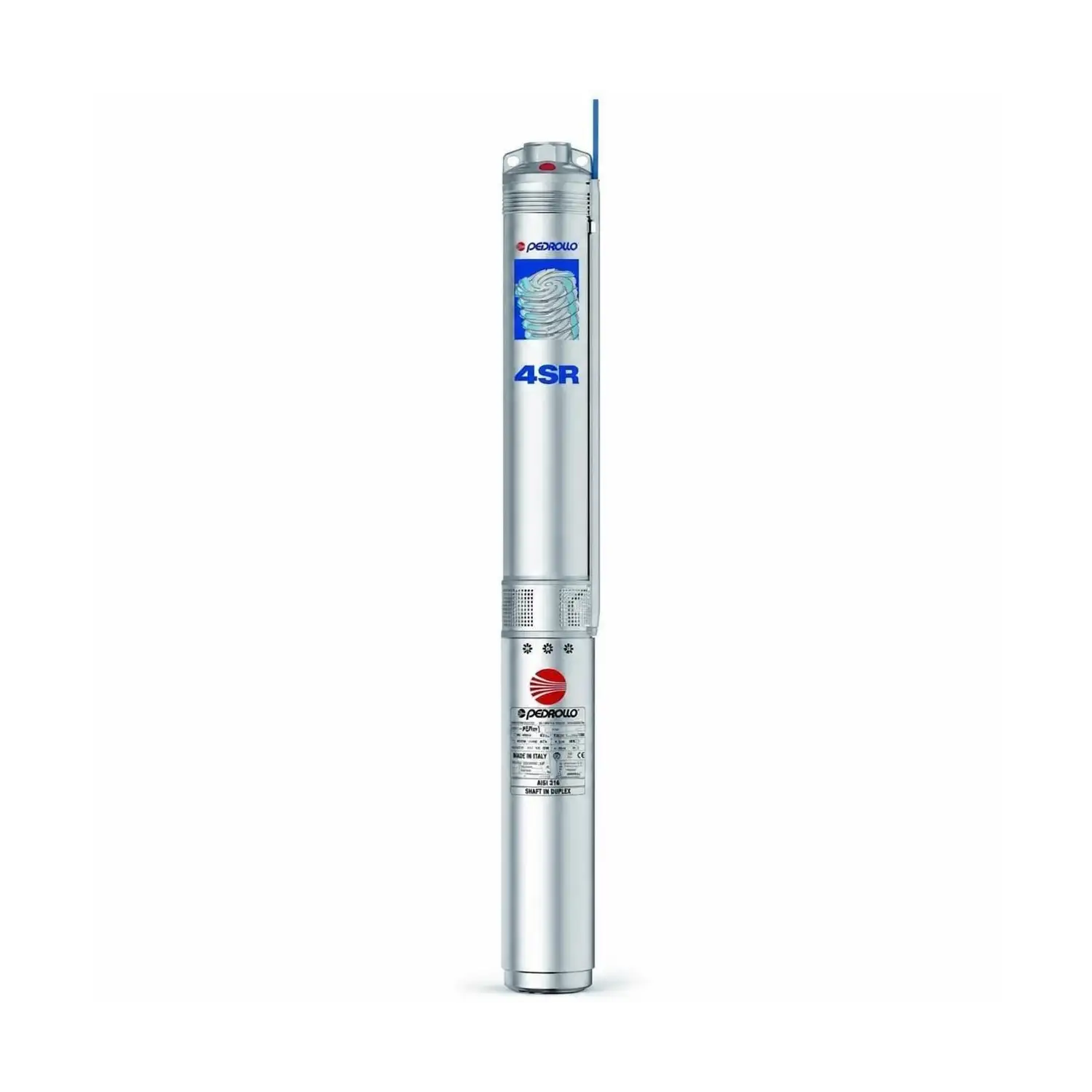

4SRm 1/39 S-PS - 2 HP single-phase submersible electric pump

Name: 4SRm 1/39 S-PS - 2 HP single-phase submersible electric pump
Brand: Pedrollo
SKU: 4SRm 1/39 S-PS
Price: 758.23 EUR
Availability: InStock

Flow rate up to 30 l/min (1.8 m³/h). Head up to 273 meters. 1.5 Kw (2 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The PEDROLLO 4SRm 1/39 S-PS is recommended for pumping clean water with a sand content not exceeding 150 grams per cubic metre.

It has a flow rate that varies from 5 to 30 litres per minute with a head of 121 to 273 metres.

Due to its high performance and reliability, it is suitable for domestic, civil and industrial use, for the distribution of water in combination with pressure tanks, for irrigation of vegetable gardens and gardens, for washing systems, for pressure raising or for fire-fighting systems.

Submersible electric pump with encapsulated PEDROLLO motor.

Data sheet

Motor connection: SINGLE PHASE
Power (Kw): 1.5
Power (HP): 2
Delivery port: 1 "1/4
Degree of protection: IP 68
Flow rate min. (l./min.): 5
Max flow (l./min.): 30
Min head (m.): 127
Max head (m.): 271
Cable length (m): 2
Weight kg): 23
Guarantee: 2

Attachments

Scheda tecnica 4SR S

Download (2.89MB)

Models and performance 4SRm 1-S

TYPE

three phase

4SRm 1/10-S

4SRm 1/15-S

4SRm 1/20-S

4SRm 1/29-S

4SRm 1/39-S

4SRm 1/50-S

POWER
KW	HP
0.37	0.50
0.55	0.75
0.75	1
1.1	1.5
1.5	2
2.2	3

IMPELLERS
number
10
15
20
29
39
50

PERFORMANCES
Q liters/min	H meters
5 ÷ 30	72 ÷ 32.5
5 ÷ 30	108 ÷ 48.5
5 ÷ 30	144 ÷ 65
5 ÷ 30	208 ÷ 94
5 ÷ 30	280 ÷ 127
5 ÷ 30	350 ÷ 155

MOUTH
DN
1 1/4"

Q	m³/hour	0	0.3	0.6	0.9	1.2	1.5	1.8
Q	l/min	0	5	10	15	20	25	30
H	meters	72	69.5	65.5	60.5	53.5	44	32.5
		108	104	99	91	80	66	48.5
		144	139	131	121	107	88	65
		208	201	190	175	154	128	94
		280	271	256	236	208	172	127
		350	338	320	294	258	213	155

Construction data of the 4SR-S series

Bearings

Pump bearing - fixed part	Anti-friction polymer
Pump bearing - rotating part	Sintered AISI 316 steel with ceramic coating

Tree holding

Materials

1.3 - Delivery body	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4301 (AISI 304)
4.2 - Towing joint	Stainless steel EN 1.4404 (AISI 316L)
5.0 - Stadium box	Stainless steel EN 1.4301 (AISI 304)
5.1 - Diffuser	Reinforced technopolymer
7.0 - Lantern	Stainless steel EN 1.4301 (AISI 304)
7.1 - Check Valve	Stainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
7.3 - Cable cover	Stainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/Filter	Stainless steel EN 1.4301 (AISI 304)
