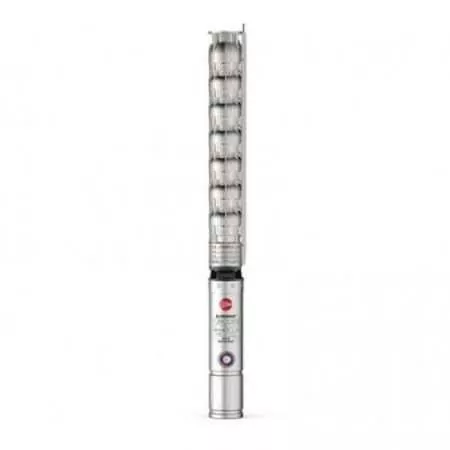

6HR 34/7 - PD - 15 HP three-phase submersible electric pump
Flow rate up to 800 l/min (48 m³/h). Head up to 97 metres. 11 kW (15 HP) motor.
Telephone support for information before purchasing.
After-sales assistance for product installation.
Reinforced packaging to reduce transport damage.
We supply all spare parts on this product.
Description
The 6HR 34/7 - PD submersible electric pump from the 6HR series by Pedrollo is recommended when a high-quality product is required.
Suitable for industrial, municipal and agricultural water applications.
Suitable for water distribution in conjunction with pressure tanks, for irrigation, for pressure boosting and for fire-fighting systems.
The 6HR 34/7 - PD boasts high mechanical resistance against wear due to sand or corrosion.
Among the best in the 6-inch submersible category.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 11
- Power (HP)
- 15
- Delivery mouth
- 3"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 45
- Max. head (m.)
- 97
- Jobs
- washing systems, tank transfer, water treatment plants, fire prevention systems, irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 175
- External diameter (cm)
- 15
- Weight (Kg)
- 83.2
- Warranty (years)
- 2
Models and performances 6HR 34
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 6HR series
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Stainless steel EN 1.4301 (AISI 304) |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 5.2 - Wear ring | Special elastomer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
