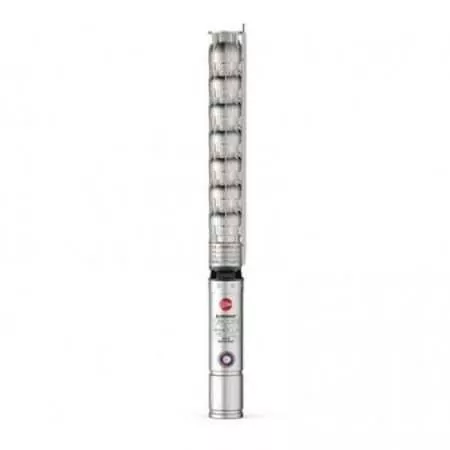

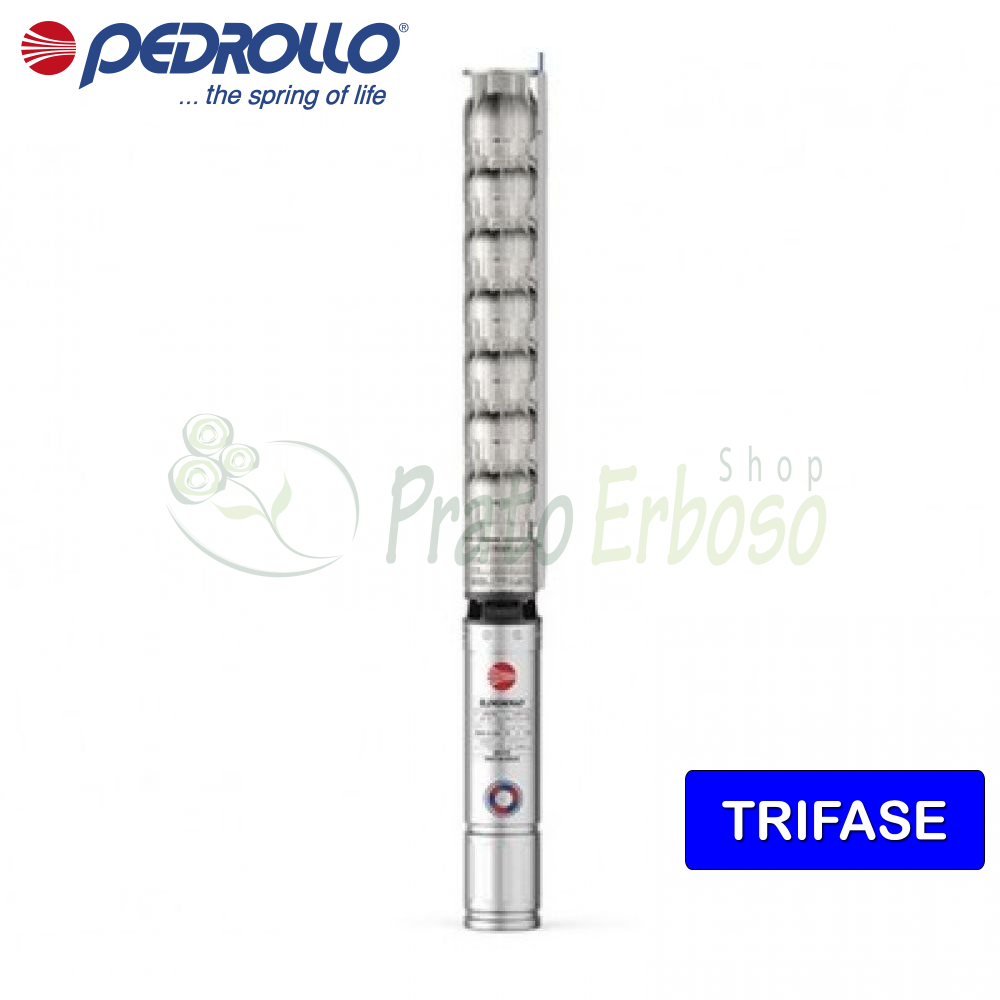

6HR 34/19 - PSR - 35 HP three-phase submersible electric pump
Flow rate up to 800 l/min (48 m³/h). Head up to 264 meters. 26 kW (35 HP) motor.
Telephone support for information before purchasing.
After-sales assistance for product installation.
Reinforced packaging to reduce transport damage.
We supply all spare parts on this product.
Description
The 6HR 34/19 - PSR submersible electric pump from the 6HR series by Pedrollo can be installed up to 150 metres below water level.
It can pump clean or brackish water with a sand content not exceeding 100 grams per cubic meter.
Recommended when you require a high-quality, reliable product that guarantees high performance.
Installation can be done both horizontally and vertically.
The 6HR 34/19 - PSR is made of micro-cast stainless steel of considerable thickness which guarantees solidity and resistance.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 26
- Power (HP)
- 35
- Delivery mouth
- 3"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 122
- Max. head (m.)
- 264
- Jobs
- washing systems, tank transfer, water treatment plants, fire prevention systems, irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 329.5
- External diameter (cm)
- 15
- Weight (Kg)
- 166.6
- Warranty (years)
- 2
Models and performances 6HR 34
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 6HR series
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Stainless steel EN 1.4301 (AISI 304) |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 5.2 - Wear ring | Special elastomer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
