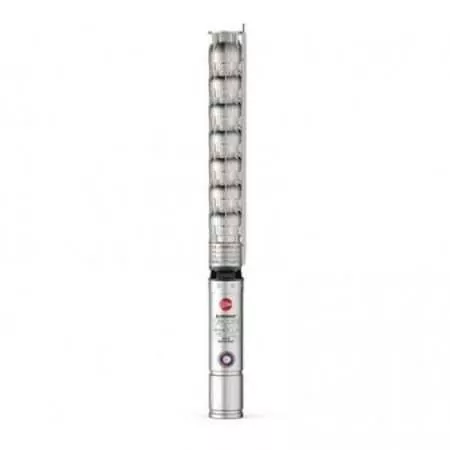

6HR 34/5 - PSR - 10 HP three-phase submersible electric pump
Flow rate up to 800 l/min (48 m³/h). Head up to 69.5 metres. 7.5 kW (10 HP) motor.
Telephone support for information before purchasing.
After-sales assistance for product installation.
Reinforced packaging to reduce transport damage.
We supply all spare parts on this product.
Description
The 6HR 34/5 - PSR submersible electric pump from the 6HR series by Pedrollo is recommended for industrial, municipal and agricultural installations.
Particularly for water distribution in conjunction with pressure tanks, for irrigation, for pressure boosting and for fire-fighting systems.
It can pump clean or brackish water with a sand content not exceeding 100 grams per cubic meter.
The 6HR 34/5 - PSR stands out for its reliability, performance and premium build quality which make it among the best in the 6-inch submersible pump category.
It can be installed both horizontally and vertically up to 150 meters below water level.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 7.5
- Power (HP)
- 10
- Delivery mouth
- 3"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 32
- Max. head (m.)
- 69.5
- Jobs
- washing systems, tank transfer, water treatment plants, fire prevention systems, irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 144.3
- External diameter (cm)
- 15
- Weight (Kg)
- 67.5
- Warranty (years)
- 2
Models and performances 6HR 34
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 6HR series
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Stainless steel EN 1.4301 (AISI 304) |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 5.2 - Wear ring | Special elastomer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
