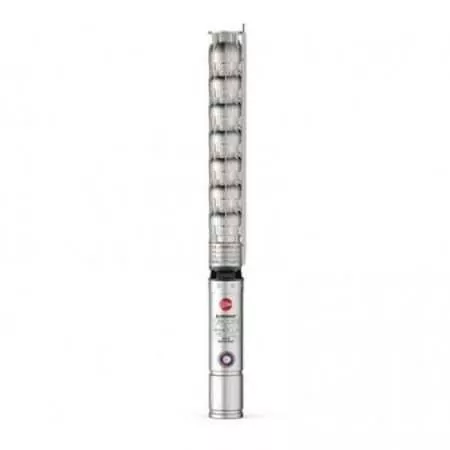

6HR 44/12 - PSR - 25 HP three-phase submersible electric pump
Flow rate up to 1000 l/min (60 m³/h). Head up to 164 metres. 18.5 kW (25 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The 6HR 44/12 - PSR submersible electric pump from the 6HR series by Pedrollo guarantees high performance and reliability.
Recommended for agricultural, civil, industrial and municipal installations.
Particularly suitable for water distribution in conjunction with pressure tanks, for irrigation, for pressure boosting and for fire-fighting systems.
It can be installed both vertically and horizontally up to 150 meters below water level.
The 6HR 44/12 - PSR is among the best in the 6-inch wetsuit category.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 18.5
- Power (HP)
- 25
- Delivery mouth
- 3"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Minimum flow rate (l./min.)
- 200
- Max. flow rate (l./min.)
- 1000
- Min. head (m.)
- 70
- Max. head (m.)
- 164
- Jobs
- washing systems, tank transfer, water treatment plants, fire prevention systems, irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 237.3
- External diameter (cm)
- 15
- Weight (Kg)
- 119
- Warranty (years)
- 2
6HR 44 models and performance
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 6HR series
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Stainless steel EN 1.4301 (AISI 304) |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 5.2 - Wear ring | Special elastomer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
