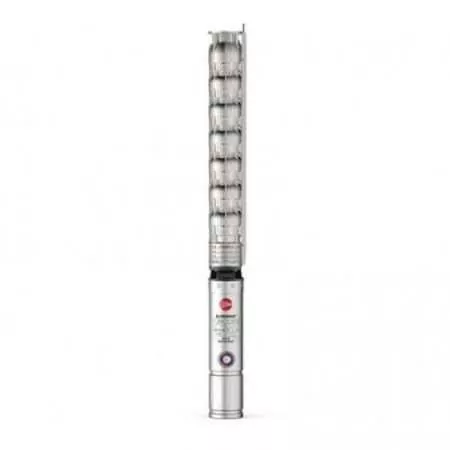

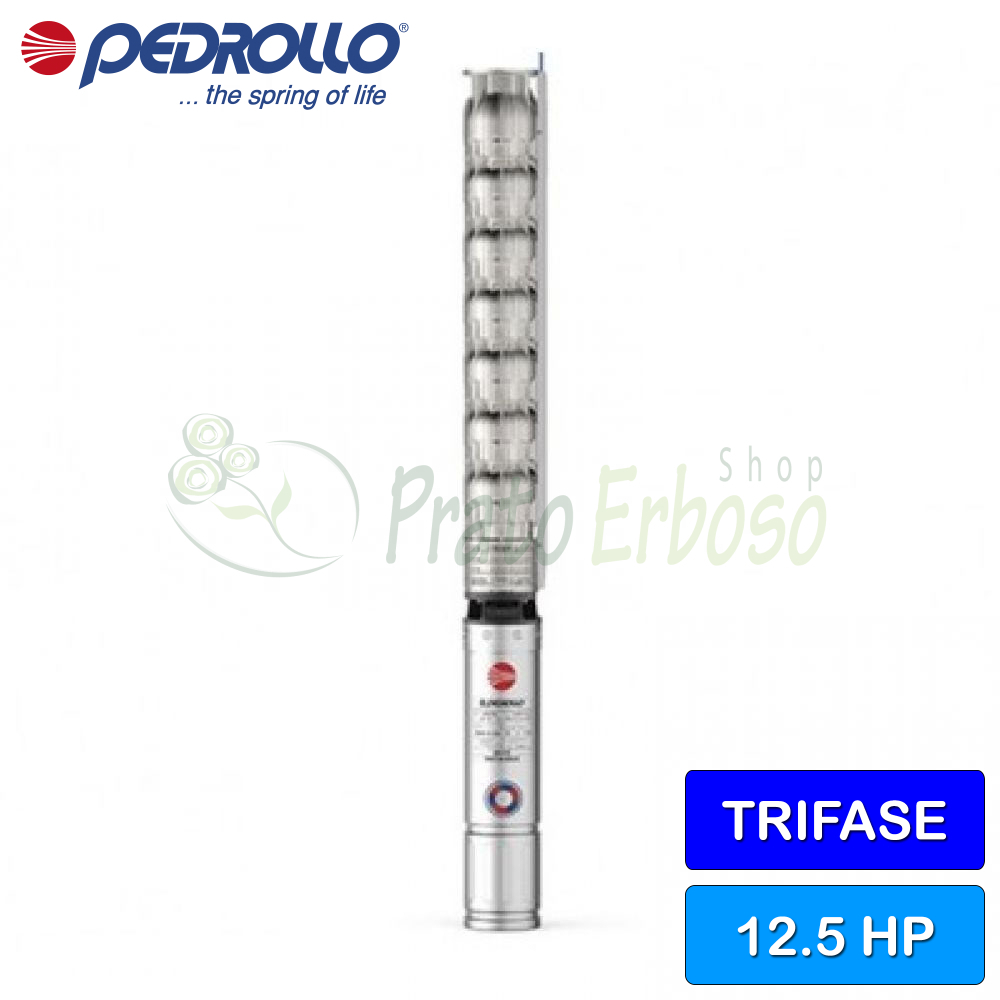

6HR 54/5 - PSR - 12.5 HP three-phase submersible electric pump
Flow rate up to 1200 l/min (72 m³/h). Head up to 64.5 meters. 9.2 kW (12.5 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Wednesday 25 February - Thursday 26 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Wednesday 25 February - Thursday 26 February |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Wednesday 25 February - Thursday 26 February |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 27 February - Monday 2 March |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 25 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Wednesday 25 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 25 February - Thursday 26 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 25 February - Thursday 26 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 25 February - Thursday 26 February
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 27 February - Monday 2 March
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 25 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Wednesday 25 February
The 6HR 54/5 - PSR submersible electric pump from the 6HR series by Pedrollo boasts high mechanical resistance to wear and sand.
It can pump clean or brackish water with a sand content not exceeding 100 grams per cubic meter.
The 6HR 54/5 - PSR is reliable and guarantees a long operating life.
Pedrollo has created the electric pump in micro-cast stainless steel which ensures solidity and robustness.
It can be installed both vertically and horizontally up to 200 meters below water level.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 9.2
- Power (HP)
- 12.5
- Delivery mouth
- 3"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Minimum flow rate (l./min.)
- 300
- Max. flow rate (l./min.)
- 1200
- Min. head (m.)
- 26.5
- Max. head (m.)
- 64.5
- Jobs
- washing systems, tank transfer, water treatment plants, fire prevention systems, irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 151.3
- External diameter (cm)
- 15
- Weight (Kg)
- 69.7
- Warranty (years)
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Stainless steel EN 1.4301 (AISI 304) |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 5.2 - Wear ring | Special elastomer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 6HR 54/5 - PSR - 12.5 HP three-phase submersible electric pumpThis product Flow rate up to 1200 l/min (72 m³/h). Head up to 64.5 meters. 9.2 kW (12.5 HP) motor. |  6HR 54/4 - PSR - 10 HP three-phase submersible electric pumpFlow rate up to 1200 l/min (72 m³/h). Head up to 51.5 metres. 7.5 kW (10 HP) motor. |  6HR 54/6 - PSR - 15 HP three-phase submersible electric pumpFlow rate up to 1200 l/min (72 m³/h). Head up to 77.5 meters. 11 kW (15 HP) motor. |  6HR 54/8 - PSR - 17.5 HP three-phase submersible electric pumpFlow rate up to 1200 l/min (72 m³/h). Head up to 103 meters. 13 kW (17.5 HP) motor. | |
|---|---|---|---|---|
| Price | Price €4,587.20 -45% €2,522.96 | Price €4,146.78 -45% €2,280.73 | Price €5,102.04 -45% €2,806.12 | Price €5,818.18 -45% €3,200.00 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 9.2 | Power (Kw) 7.5 | Power (Kw) 11 | Power (Kw) 13 |
| Power (HP) | Power (HP) 12.5 | Power (HP) 10 | Power (HP) 15 | Power (HP) 17.5 |
| Delivery mouth | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth -- |
| Pump body | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 300 | Minimum flow rate (l./min.) 300 | Minimum flow rate (l./min.) 300 | Minimum flow rate (l./min.) 300 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 1200 | Max. flow rate (l./min.) 1200 | Max. flow rate (l./min.) 1200 | Max. flow rate (l./min.) 1200 |
| Min. head (m.) | Min. head (m.) 26.5 | Min. head (m.) 21 | Min. head (m.) 31.5 | Min. head (m.) 42 |
| Max. head (m.) | Max. head (m.) 64.5 | Max. head (m.) 51.5 | Max. head (m.) 77.5 | Max. head (m.) 103 |
| Jobs | Jobs washing systems, tank transfer, water treatment plants, fire prevention systems, irrigation, pressurization systems, water supply | Jobs washing systems, tank transfer, water treatment plants, fire prevention systems, irrigation, pressurization systems, water supply | Jobs washing systems, tank transfer, water treatment plants, fire prevention systems, irrigation, pressurization systems, water supply | Jobs fire prevention systems, water treatment plants, tank transfer, washing systems, irrigation, pressurization systems, water supply |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C |
| Height (cm) | Height (cm) 151.3 | Height (cm) 136.6 | Height (cm) 151.3 | Height (cm) 195.4 |
| External diameter (cm) | External diameter (cm) 15 | External diameter (cm) 15 | External diameter (cm) 15 | External diameter (cm) 15 |
| Weight (Kg) | Weight (Kg) 69.7 | Weight (Kg) 64.3 | Weight (Kg) 80.2 | Weight (Kg) 95 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
