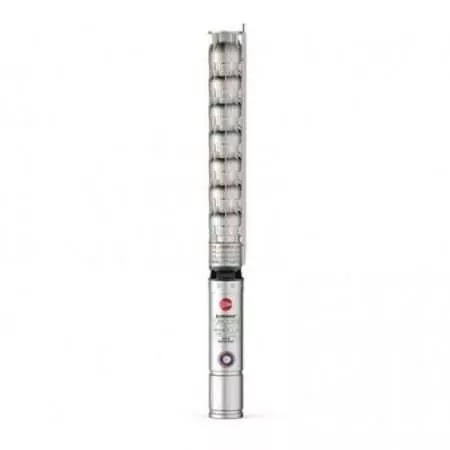

6HR 54/9 - PSR - 20 HP three-phase submersible electric pump
Flow rate up to 1200 l/min (72 m³/h). Head up to 116 metres. 15 kW (20 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The 6HR 54/9 - PSR submersible electric pump from the 6HR series by Pedrollo boasts a solid and robust construction thanks to the use of stainless steel.
Recommended for agricultural, civil and industrial applications for water distribution in conjunction with pressure tanks, for irrigation, for pressure boosting and for fire-fighting systems.
Characterized by high mechanical resistance to wear due to sand and corrosion.
It mounts a rewindable oil bath motor.
The 6HR 54/9 - PSR is the right choice when a high-quality product is required.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 15
- Power (HP)
- 20
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Minimum flow rate (l./min.)
- 300
- Max. flow rate (l./min.)
- 1200
- Min. head (m.)
- 47
- Max. head (m.)
- 116
- Jobs
- washing systems, tank transfer, water treatment plants, fire prevention systems, irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 206.1
- External diameter (cm)
- 15
- Weight (Kg)
- 99.4
- Warranty (years)
- 2
Models and performances 6HR 54
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 6HR series
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Stainless steel EN 1.4301 (AISI 304) |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 5.2 - Wear ring | Special elastomer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
Products already seen
-
- -45%
€932.02 tax incl. €1,694.58
From the same brand and category
Compare with Similar Products
 6HR 54/9 - PSR - 20 HP three-phase submersible electric pumpThis product Flow rate up to 1200 l/min (72 m³/h). Head up to 116 metres. 15 kW (20 HP) motor. |  6HR 54/8 - PSR - 17.5 HP three-phase submersible electric pumpFlow rate up to 1200 l/min (72 m³/h). Head up to 103 meters. 13 kW (17.5 HP) motor. |  6HR 54/11 - PSR - 25 HP three-phase submersible electric pumpFlow rate up to 1200 l/min (72 m³/h). Head up to 142 metres. 18.5 kW (25 HP) motor. |  6HR 54/13 - PSR - 30 HP three-phase submersible electric pumpFlow rate up to 1200 l/min (72 m³/h). Head up to 168 metres. 22 kW (30 HP) motor. | |
|---|---|---|---|---|
| Price | Price €6,370.84 -45% €3,503.96 | Price €5,818.18 -45% €3,200.00 | Price €7,276.08 -45% €4,001.84 | Price €8,608.32 -45% €4,734.58 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 15 | Power (Kw) 13 | Power (Kw) 18.5 | Power (Kw) 22 |
| Power (HP) | Power (HP) 20 | Power (HP) 17.5 | Power (HP) 25 | Power (HP) 30 |
| Pump body | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 300 | Minimum flow rate (l./min.) 300 | Minimum flow rate (l./min.) 300 | Minimum flow rate (l./min.) 300 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 1200 | Max. flow rate (l./min.) 1200 | Max. flow rate (l./min.) 1200 | Max. flow rate (l./min.) 1200 |
| Min. head (m.) | Min. head (m.) 47 | Min. head (m.) 42 | Min. head (m.) 58 | Min. head (m.) 68 |
| Max. head (m.) | Max. head (m.) 116 | Max. head (m.) 103 | Max. head (m.) 142 | Max. head (m.) 168 |
| Jobs | Jobs washing systems, tank transfer, water treatment plants, fire prevention systems, irrigation, pressurization systems, water supply | Jobs fire prevention systems, water treatment plants, tank transfer, washing systems, irrigation, pressurization systems, water supply | Jobs washing systems, tank transfer, water treatment plants, fire prevention systems, irrigation, pressurization systems, water supply | Jobs washing systems, tank transfer, water treatment plants, fire prevention systems, irrigation, pressurization systems, water supply |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C |
| Height (cm) | Height (cm) 206.1 | Height (cm) 195.4 | Height (cm) 233.8 | Height (cm) 262.2 |
| External diameter (cm) | External diameter (cm) 15 | External diameter (cm) 15 | External diameter (cm) 15 | External diameter (cm) 15 |
| Weight (Kg) | Weight (Kg) 99.4 | Weight (Kg) 95 | Weight (Kg) 116.2 | Weight (Kg) 129.1 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
