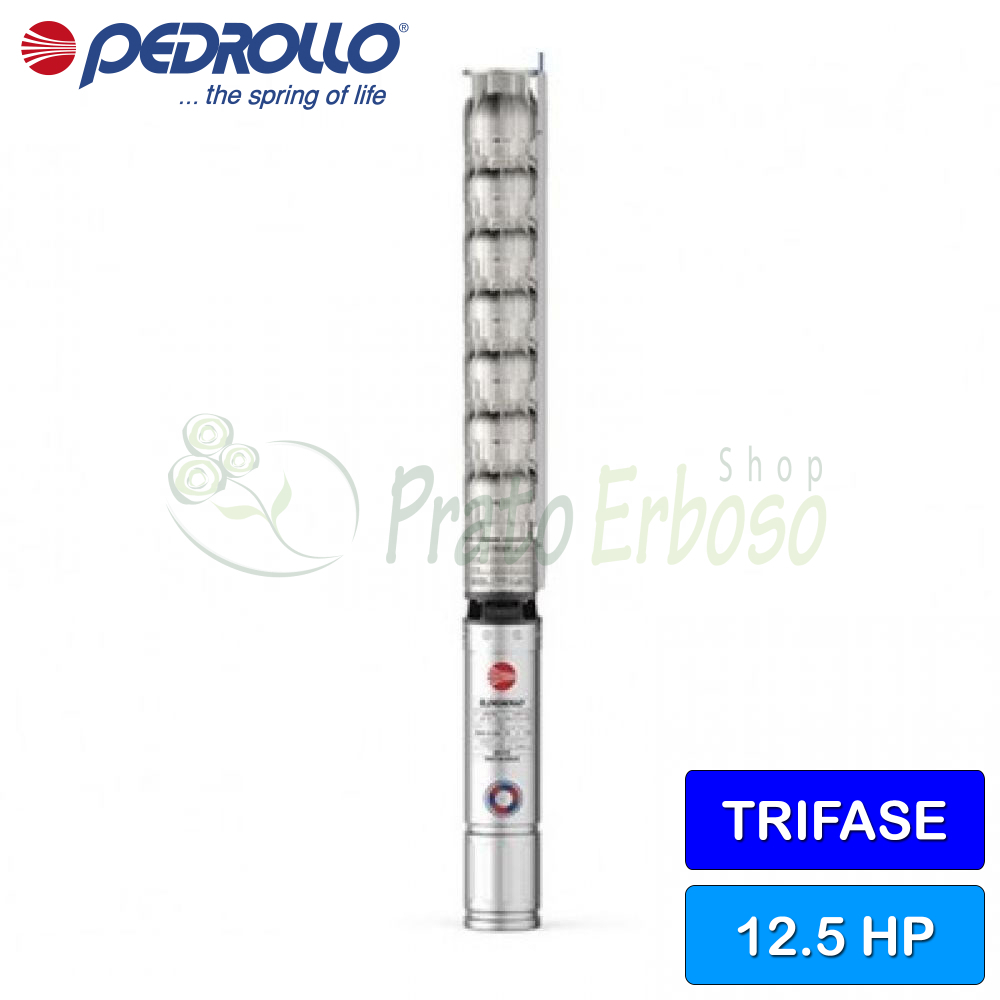

6HR 64/4 - PSR - 12.5 HP three-phase submersible electric pump
Flow rate up to 1500 l/min (90 m³/h). Head up to 52 meters. 9.2 kW (12.5 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The 6HR 64/4 - PSR submersible electric pump from the 6HR series by Pedrollo can pump water or brackish water with a sand content not exceeding 100 grams per cubic meter.
Its high mechanical resistance, both to wear and tear caused by sand and to corrosion, makes it ideal for coastal areas.
The 6HR 64/4 - PSR is recommended for water distribution in conjunction with pressure tanks, for irrigation, for pressure boosting and for fire-fighting systems.
Recommended when a high quality product is required.
It stands out for its reliability, performance and premium build quality.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 9.2
- Power (HP)
- 12.5
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Minimum flow rate (l./min.)
- 400
- Max. flow rate (l./min.)
- 1500
- Min. head (m.)
- 20
- Max. head (m.)
- 52
- Jobs
- washing systems, tank transfer, water treatment plants, fire prevention systems, irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 140.6
- External diameter (cm)
- 15
- Weight (Kg)
- 63.9
- Warranty (years)
- 2
6HR 64 models and performance
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 6HR series
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Stainless steel EN 1.4301 (AISI 304) |
Tree holding
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 5.2 - Wear ring | Special elastomer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
