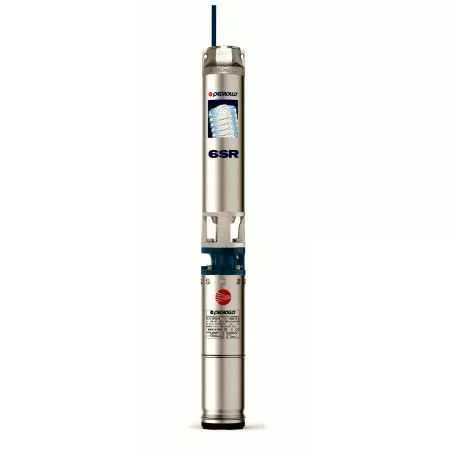

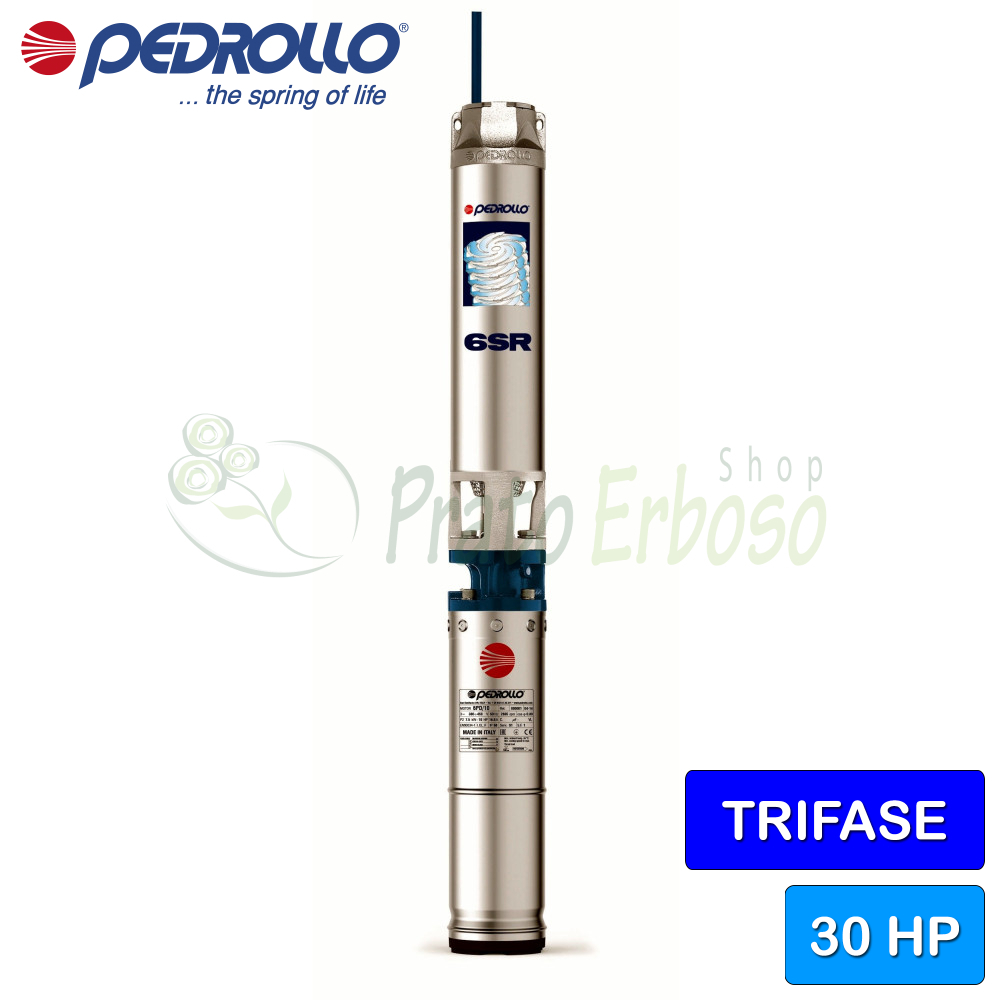

6SR18/26 - PD - 30 HP three-phase submersible electric pump
Flow rate up to 450 l/min (27 m³/h). Head up to 352 m. 22 kW (30 HP) motor.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The 6SR18/26 - PD submersible electric pump from the 6SR series by Pedrollo is equipped with impellers and diffusers capable of resisting abrasion caused by sand.
It can pump clean water with sand content not exceeding 100 grams per cubic meter.
Among the best in the 6-inch submersible category.
The 6SR18/26 - PD can be installed in wells with a diameter of no less than 6 inches.
Pedrollo has created a solid and robust product thanks to the use of a mix of cast iron and stainless steel.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 22
- Power (HP)
- 30
- Delivery mouth
- 3"
- Pump body
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 26
- Pump shaft
- AISI 304 stainless steel
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 450
- Min. head (m.)
- 139
- Max. head (m.)
- 352
- Jobs
- water supply, pressurization systems, irrigation, fire prevention systems
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 249.8
- External diameter (cm)
- 149.5
- Weight (Kg)
- 125.7
- Warranty (years)
- 2
6SR 18 models and performance
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 6SR18/26
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4301 (AISI 304) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
