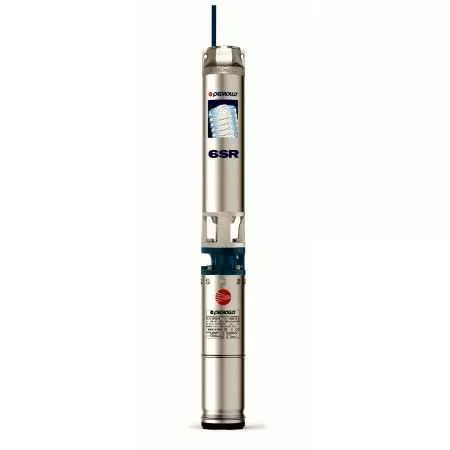

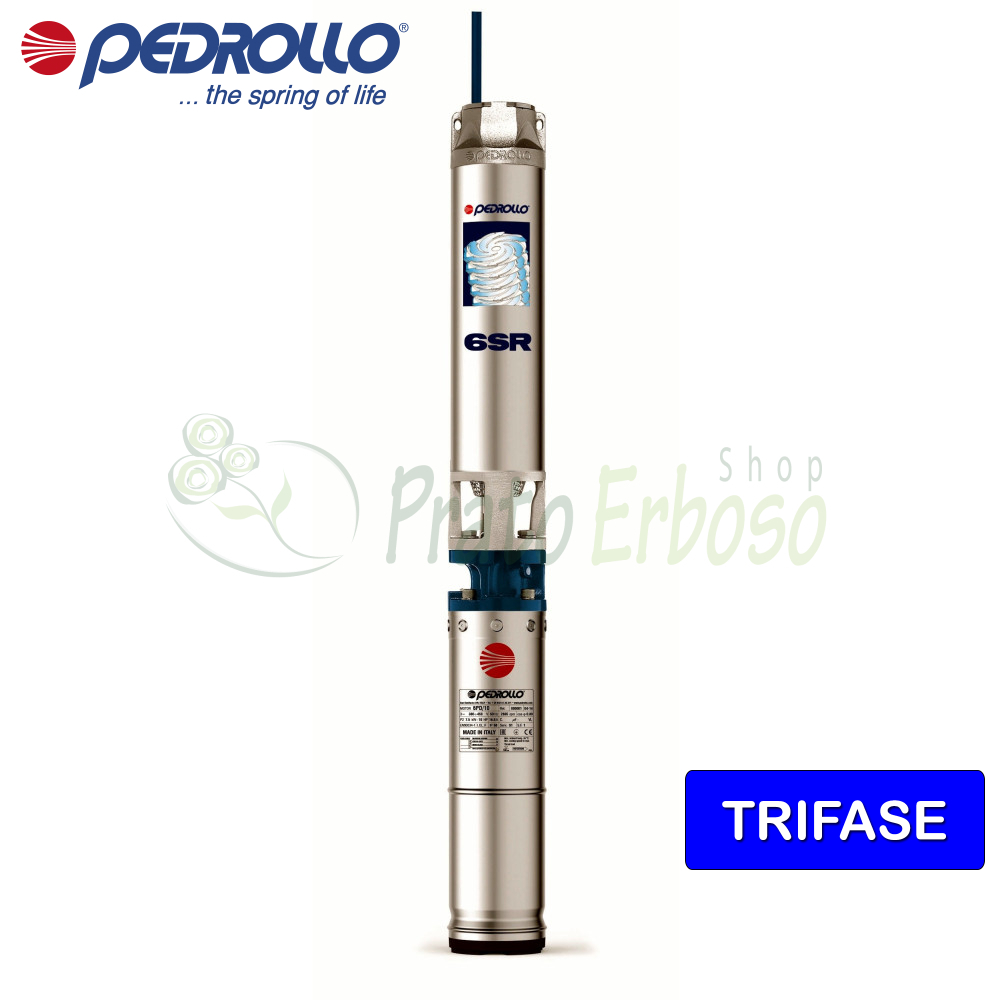

6SR27/12 - PD - 17.5 HP three-phase submersible electric pump

Name: 6SR27/12 - PD - 17.5 HP three-phase submersible electric pump
Brand: Pedrollo
SKU: 6SR27/12 - PD
Price: 1671.46 EUR
Availability: InStock

Flow rate up to 600 l/min (36 m³/h). Head up to 164 m. 13 Kw (17.5 HP) motor.

Variants:

Order it before 12:00 of today and receive it between Monday 19 May and Tuesday 20 May with Mail Boxes - 2 giorni

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Monday 19 May - Tuesday 20 May
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Monday 19 May - Tuesday 20 May
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Monday 19 May - Tuesday 20 May
One Express - 2 giorni Italia	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Thursday 22 May - Friday 23 May

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Monday 19 May - Tuesday 20 May

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Monday 19 May - Tuesday 20 May

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Monday 19 May - Tuesday 20 May

Carrier: One Express - 2 giorni Italia

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 22 May - Friday 23 May

✖

Availabilities for Click & collect :

Select your Pick-up store

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The PEDROLLO 6SR27/12 submersible electric pump is recommended for pumping clean water with a sand content not exceeding 100 grams per cubic metre.

The PEDROLLO 6SR27/12 has a flow rate that varies from 100 to 600 litres per minute with a head from 53 to 164 metres.

Due to its high performance and reliability, it is suitable for use in the civil, industrial and agricultural fields, for the distribution of water in conjunction with pressure tanks, for irrigation, for washing systems, for pressure raising or for fire-fighting systems.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 13
Power (HP): 17.5
Delivery mouth: 3 "
Pump body: Cast iron
Impeller: Noryl
Number of impellers: 12
Pump shaft: AISI 304 stainless steel
Min. flow rate (l./min.): 100
Max. flow rate (l./min.): 600
Min. head (m.): 53
Max. head (m.): 164
Jobs: water supply, pressurization systems, irrigation, fire prevention systems
Max. liquid temperature (°C): 35
Height (cm): 187.1
External diameter (cm): 149.5
Weight (Kg): 83.6
Warranty (years): 2

Attachments

6SR data sheet

Performance, working curves and limits of use of the 6-inch submersible electric pumps of the 6SR series by Pedrollo.

Download (3.88MB)

Models and performances 6SR 27

GUY

three-phase

6SR 27/4

6SR 5/27

6SR 7/27

6SR 8/27

6SR 27/10

6SR 27/12

6SR 27/14

6SR 27/17

6SR 27/20

6SR 27/27

POWER
KW	HP
4	5.5
5.5	7.5
7.5	10
9.2	12.5
11	15
13	17.5
15	20
18.5	25
22	30
30	40

IMPELLERS
number
4
5
7
8
10
12
14
17
20
27

PERFORMANCE
Q litres/min	H meters
100 ÷ 600	54 ÷ 18
100 ÷ 600	68 ÷ 22
100 ÷ 600	95 ÷ 31
100 ÷ 600	109 ÷ 35
100 ÷ 600	136 ÷ 44
100 ÷ 600	164 ÷ 53
100 ÷ 600	191 ÷ 62
100 ÷ 600	231 ÷ 75
100 ÷ 600	272 ÷ 88
100 ÷ 600	367 ÷ 119

MOUTH
DN
3"

Q	m³/hour	0	6	12	18	24	30	36
Q	l/min	0	100	200	300	400	500	600
H	meters	54	53	49	45	40	30	18
		68	66	62	57	50	37	22
		95	Ninety two	87	80	70	52	31
		109	106		91	80	59	35
		136	132	124	114	100	74	44
		164	159	149	137	120	89	53
		191	185	174	160	140	104	62
		231	224	211	194	170	126	75
		272	264	248	228	200	148	88
		367	356	335	308	270	205	119

Construction data of the 6SR series

Bearings

Pump bearing - fixed part	Special elastomer
Pump bearing - rotating part	Sintered AISI 316 steel with ceramic coating

Tree holding

Materials

1.3 - Delivery body	Cast iron GJL 200 EN 1561
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4301 (AISI 304)
4.2 - Towing joint	Stainless steel EN 1.4021 (AISI 420)
5.0 - Stadium box	Stainless steel EN 1.4301 (AISI 304)
5.1 - Diffuser	Reinforced technopolymer
7.0 - Lantern	Cast iron GJL 200 EN 1561
7.1 - Check Valve	Stainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
7.3 - Cable cover	Stainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/Filter	Stainless steel EN 1.4301 (AISI 304)

Compare with Similar Products

	6SR27/12 - PD - 17.5 HP three-phase submersible electric pump This product Flow rate up to 600 l/min (36 m³/h). Head up to 164 m. 13 Kw (17.5 HP) motor.	6SR27/10 - PD - 15 HP three-phase submersible electric pump Quick View Flow rate up to 600 l/min (36 m³/h). Head up to 136 m. 11 Kw (15 HP) motor.	6SR27/14 - PD - 20 HP three-phase submersible electric pump Quick View Flow rate up to 600 l/min (36 m³/h). Head up to 191 m. 15 Kw (20 HP) motor.	6SR27/17 - PD - 25 HP three-phase submersible electric pump Quick View Flow rate up to 600 l/min (36 m³/h). Head up to 231 m. 18.5 Kw (25 HP) motor.
Motor connection	Motor connection THREE-PHASE	Motor connection THREE-PHASE	Motor connection THREE-PHASE	Motor connection THREE-PHASE
Power (Kw)	Power (Kw) 13	Power (Kw) 11	Power (Kw) 15	Power (Kw) 18.5
Power (HP)	Power (HP) 17.5	Power (HP) 15	Power (HP) 20	Power (HP) 25
Delivery mouth	Delivery mouth 3 "	Delivery mouth 3 "	Delivery mouth 3 "	Delivery mouth 3 "
Pump body	Pump body Cast iron	Pump body Cast iron	Pump body Cast iron	Pump body Cast iron
Impeller	Impeller Noryl	Impeller Noryl	Impeller Noryl	Impeller Noryl
Number of impellers	Number of impellers 12	Number of impellers 10	Number of impellers 14	Number of impellers 17
Pump shaft	Pump shaft AISI 304 stainless steel	Pump shaft AISI 304 stainless steel	Pump shaft AISI 304 stainless steel	Pump shaft AISI 304 stainless steel
Min. flow rate (l./min.)	Min. flow rate (l./min.) 100	Min. flow rate (l./min.) 100	Min. flow rate (l./min.) 100	Min. flow rate (l./min.) 100
Max. flow rate (l./min.)	Max. flow rate (l./min.) 600	Max. flow rate (l./min.) 600	Max. flow rate (l./min.) 600	Max. flow rate (l./min.) 600
Min. head (m.)	Min. head (m.) 53	Min. head (m.) 44	Min. head (m.) 62	Min. head (m.) 75
Max. head (m.)	Max. head (m.) 164	Max. head (m.) 136	Max. head (m.) 191	Max. head (m.) 231
Jobs	Jobs water supply, pressurization systems, irrigation, fire prevention systems	Jobs fire prevention systems, irrigation, pressurization systems, water supply	Jobs fire prevention systems, irrigation, pressurization systems, water supply	Jobs water supply, pressurization systems, irrigation, fire prevention systems
Max. liquid temperature (°C)	Max. liquid temperature (°C) 35	Max. liquid temperature (°C) 35	Max. liquid temperature (°C) 35	Max. liquid temperature (°C) 35
Height (cm)	Height (cm) 187.1	Height (cm) 166.6	Height (cm) 197.7	Height (cm) 219.9
External diameter (cm)	External diameter (cm) 149.5	External diameter (cm) 149.5	External diameter (cm) --	External diameter (cm) 149.5
Weight (Kg)	Weight (Kg) 83.6	Weight (Kg) --	Weight (Kg) 85.9	Weight (Kg) 97.5
Warranty (years)	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2
