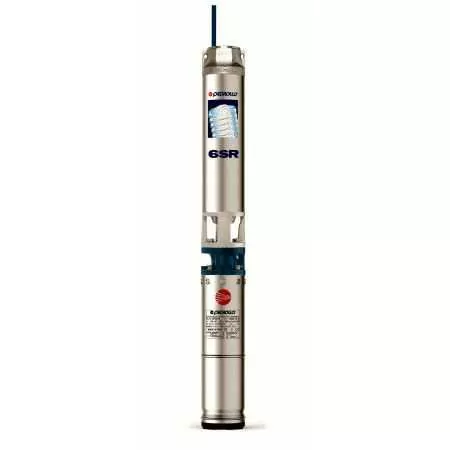

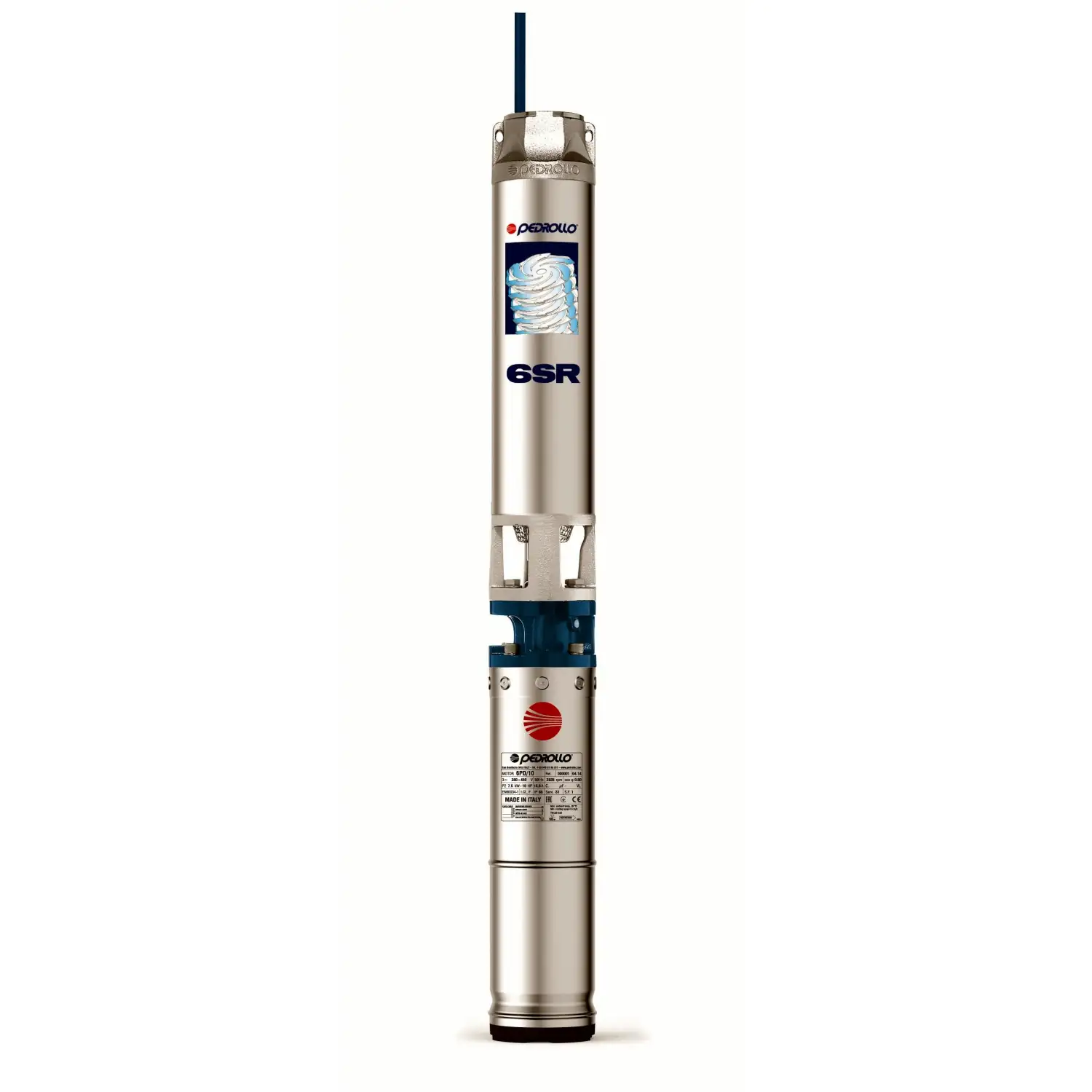

6SR27/20 - PD - 30 HP three-phase submersible electric pump
Flow rate up to 600 l/min (36 m³/h). Head up to 272 m. 22 kW (30 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Wednesday 25 February - Thursday 26 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Wednesday 25 February - Thursday 26 February |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Wednesday 25 February - Thursday 26 February |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 27 February - Monday 2 March |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Tuesday 24 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Tuesday 24 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 25 February - Thursday 26 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 25 February - Thursday 26 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 25 February - Thursday 26 February
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 27 February - Monday 2 March
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 24 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Tuesday 24 February
The 6SR27/20 - PD submersible electric pump from the 6SR series by Pedrollo can pump clean water with a maximum sand content of 100 grams per cubic meter.
The impellers and diffusers it is equipped with are able to resist abrasion caused by sand.
It can be installed both vertically and horizontally up to 200 meters below water level.
The 6SR27/20 - PD can be installed in wells with a diameter of no less than 6 inches.
Pedrollo 's use of cast iron and stainless steel gives the electric pump solidity and resistance.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 22
- Power (HP)
- 30
- Delivery mouth
- 3"
- Pump body
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 20
- Pump shaft
- AISI 304 stainless steel
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 600
- Min. head (m.)
- 88
- Max. head (m.)
- 272
- Jobs
- water supply, pressurization systems, irrigation, fire prevention systems
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 242.7
- External diameter (cm)
- 149.5
- Weight (Kg)
- 123
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4301 (AISI 304) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 6SR27/20 - PD - 30 HP three-phase submersible electric pumpThis product Flow rate up to 600 l/min (36 m³/h). Head up to 272 m. 22 kW (30 HP) motor. |  6SR27/14 - PD - 20 HP three-phase submersible electric pumpFlow rate up to 600 l/min (36 m³/h). Head up to 191 m. 15 kW (20 HP) motor. |  6SR27/17 - PD - 25 HP three-phase submersible electric pumpFlow rate up to 600 l/min (36 m³/h). Head up to 231 m. 18.5 kW (25 HP) motor. |  6SR27/27 - PD - 40 HP three-phase submersible electric pumpFlow rate up to 600 l/min (36 m³/h). Head up to 367 m. 30 kW (40 HP) motor. | |
|---|---|---|---|---|
| Price | Price €4,385.90 -45% €2,412.25 | Price €3,204.94 -45% €1,762.72 | Price €3,875.94 -45% €2,131.77 | Price €5,014.20 -45% €2,757.81 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 22 | Power (Kw) 15 | Power (Kw) 18.5 | Power (Kw) 30 |
| Power (HP) | Power (HP) 30 | Power (HP) 20 | Power (HP) 25 | Power (HP) 40 |
| Delivery mouth | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth 3" |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 20 | Number of impellers 14 | Number of impellers 17 | Number of impellers 27 |
| Pump shaft | Pump shaft AISI 304 stainless steel | Pump shaft AISI 304 stainless steel | Pump shaft AISI 304 stainless steel | Pump shaft AISI 304 stainless steel |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 600 | Max. flow rate (l./min.) 600 | Max. flow rate (l./min.) 600 | Max. flow rate (l./min.) 600 |
| Min. head (m.) | Min. head (m.) 88 | Min. head (m.) 62 | Min. head (m.) 75 | Min. head (m.) 119 |
| Max. head (m.) | Max. head (m.) 272 | Max. head (m.) 191 | Max. head (m.) 231 | Max. head (m.) 367 |
| Jobs | Jobs water supply, pressurization systems, irrigation, fire prevention systems | Jobs fire prevention systems, irrigation, pressurization systems, water supply | Jobs water supply, pressurization systems, irrigation, fire prevention systems | Jobs water supply, pressurization systems, irrigation, fire prevention systems |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C |
| Height (cm) | Height (cm) 242.7 | Height (cm) 197.7 | Height (cm) 219.9 | Height (cm) 294.3 |
| External diameter (cm) | External diameter (cm) 149.5 | External diameter (cm) -- | External diameter (cm) 149.5 | External diameter (cm) 149.5 |
| Weight (Kg) | Weight (Kg) 123 | Weight (Kg) 85.9 | Weight (Kg) 97.5 | Weight (Kg) 135.8 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
