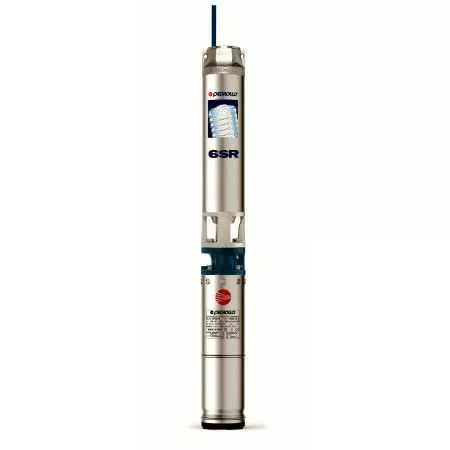

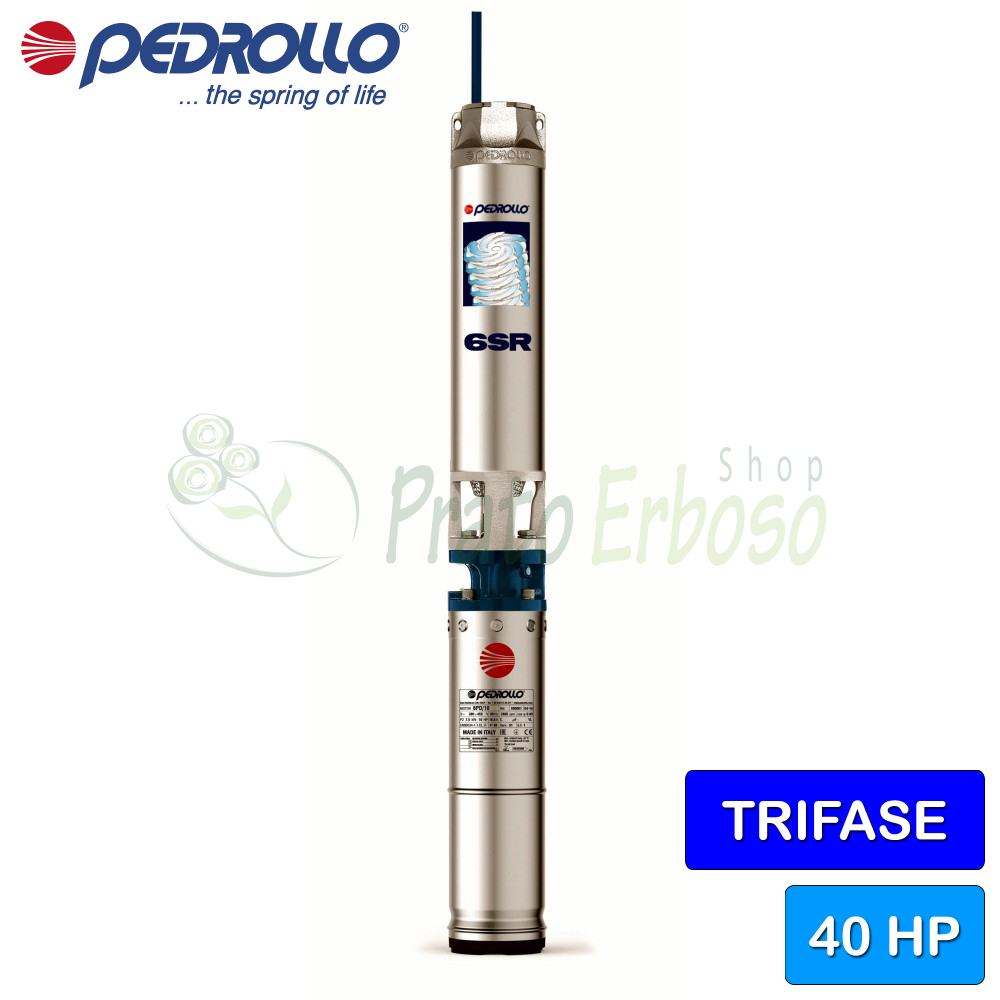

6SR27/27 - PD - 40 HP three-phase submersible electric pump
Flow rate up to 600 l/min (36 m³/h). Head up to 367 m. 30 Kw (40 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The PEDROLLO 6SR27/27 submersible electric pump is recommended for pumping clean water with a sand content not exceeding 100 grams per cubic metre.
The PEDROLLO 6SR27/27 has a flow rate that varies from 100 to 600 litres per minute with a head from 119 to 367 metres.
Due to its high performance and reliability, it is suitable for use in the civil, industrial and agricultural fields, for the distribution of water in conjunction with pressure tanks, for irrigation, for washing systems, for pressure raising or for fire-fighting systems.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 30
- Power (HP)
- 40
- Delivery port
- 3 "
- Body Pump
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 27
- Pump shaft
- AISI 304 stainless steel
- Flow rate min. (l./min.)
- 100
- Max flow (l./min.)
- 600
- Min head (m.)
- 119
- Max head (m.)
- 367
- Employments
- water supply, pressurization systems, irrigation, fire prevention systems
- Liquid temperature max. (° C)
- 35
- Height (cm)
- 294.3
- Outside diameter (cm)
- 149.5
- Weight kg)
- 135.8
- Guarantee
- 2
Models and performances 6SR 27
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 6SR series
Bearings
| Pump bearing - fixed part | Special elastomer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4021 (AISI 420) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 6SR27/27 - PD - 40 HP three-phase submersible electric pumpThis product Flow rate up to 600 l/min (36 m³/h). Head up to 367 m. 30 Kw (40 HP) motor. |  6SR27/14 - PD - 20 HP three-phase submersible electric pumpFlow rate up to 600 l/min (36 m³/h). Head up to 191 m. 15 Kw (20 HP) motor. |  6SR27/17 - PD - 25 HP three-phase submersible electric pumpFlow rate up to 600 l/min (36 m³/h). Head up to 231 m. 18.5 Kw (25 HP) motor. |  6SR27/20 - PD - 30 HP three-phase submersible electric pumpFlow rate up to 600 l/min (36 m³/h). Head up to 272 m. 22 Kw (30 HP) motor. | |
|---|---|---|---|---|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 30 | Power (Kw) 15 | Power (Kw) 18.5 | Power (Kw) 22 |
| Power (HP) | Power (HP) 40 | Power (HP) 20 | Power (HP) 25 | Power (HP) 30 |
| Delivery port | Delivery port 3 " | Delivery port 3 " | Delivery port 3 " | Delivery port 3 " |
| Body Pump | Body Pump Cast iron | Body Pump Cast iron | Body Pump Cast iron | Body Pump Cast iron |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 27 | Number of impellers 14 | Number of impellers 17 | Number of impellers 20 |
| Pump shaft | Pump shaft AISI 304 stainless steel | Pump shaft AISI 304 stainless steel | Pump shaft AISI 304 stainless steel | Pump shaft AISI 304 stainless steel |
| Flow rate min. (l./min.) | Flow rate min. (l./min.) 100 | Flow rate min. (l./min.) 100 | Flow rate min. (l./min.) 100 | Flow rate min. (l./min.) 100 |
| Max flow (l./min.) | Max flow (l./min.) 600 | Max flow (l./min.) 600 | Max flow (l./min.) 600 | Max flow (l./min.) 600 |
| Min head (m.) | Min head (m.) 119 | Min head (m.) 62 | Min head (m.) 75 | Min head (m.) 88 |
| Max head (m.) | Max head (m.) 367 | Max head (m.) 191 | Max head (m.) 231 | Max head (m.) 272 |
| Employments | Employments water supply, pressurization systems, irrigation, fire prevention systems | Employments fire prevention systems, irrigation, pressurization systems, water supply | Employments water supply, pressurization systems, irrigation, fire prevention systems | Employments water supply, pressurization systems, irrigation, fire prevention systems |
| Liquid temperature max. (° C) | Liquid temperature max. (° C) 35 | Liquid temperature max. (° C) 35 | Liquid temperature max. (° C) 35 | Liquid temperature max. (° C) 35 |
| Height (cm) | Height (cm) 294.3 | Height (cm) 197.7 | Height (cm) 219.9 | Height (cm) 242.7 |
| Outside diameter (cm) | Outside diameter (cm) 149.5 | Outside diameter (cm) -- | Outside diameter (cm) 149.5 | Outside diameter (cm) 149.5 |
| Weight kg) | Weight kg) 135.8 | Weight kg) 85.9 | Weight kg) 97.5 | Weight kg) 123 |
| Guarantee | Guarantee 2 | Guarantee 2 | Guarantee 2 | Guarantee 2 |
