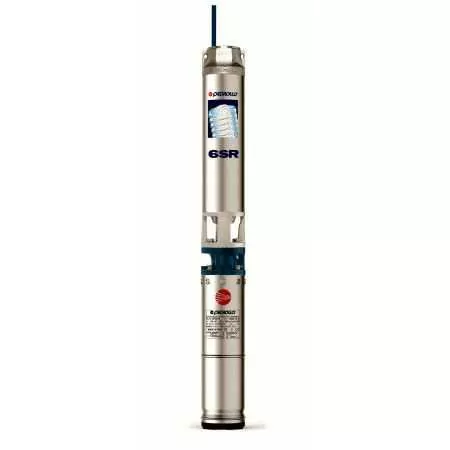

6SR36/11 - PD - 15 HP three-phase submersible electric pump
Flow rate up to 800 l/min (48 m³/h). Head up to 137 m. 11 kW (15 HP) motors.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 26 February - Friday 27 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 26 February - Friday 27 February |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Thursday 26 February - Friday 27 February |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 27 February - Monday 2 March |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 26 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Thursday 26 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 26 February - Friday 27 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 26 February - Friday 27 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 26 February - Friday 27 February
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 27 February - Monday 2 March
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 26 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Thursday 26 February
The 6SR36/11 - PD submersible electric pump from the 6SR series by Pedrollo can be installed both horizontally and vertically up to 200 metres below the water level.
Among the best in the 6-inch submersible pump category for reliability and performance.
Pedrollo 's use of cast iron and stainless steel gives the electric pump solidity and resistance.
It can pump clean water with a sand content not exceeding 100 grams per minute.
Equipped with a rewindable oil-bath motor.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 11
- Power (HP)
- 15
- Delivery mouth
- 3"
- Pump body
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 11
- Pump shaft
- AISI 304 stainless steel
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 46
- Max. head (m.)
- 137
- Jobs
- water supply, pressurization systems, irrigation, fire prevention systems
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 237.8
- External diameter (cm)
- 149.5
- Weight (Kg)
- 90
- Warranty (years)
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4021 (AISI 420) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 6SR36/11 - PD - 15 HP three-phase submersible electric pumpThis product Flow rate up to 800 l/min (48 m³/h). Head up to 137 m. 11 kW (15 HP) motors. |  6SR36/9 - PD - 12.5 HP three-phase submersible electric pumpFlow rate up to 800 l/min (48 m³/h). Head up to 112 m. 9.2 Kw (12.5 HP) motor. |  6SR36/13 - PD - 17.5 HP three-phase submersible electric pumpFlow rate up to 800 l/min (48 m³/h). Head up to 162 m. 13 kW (17.5 HP) motors. |  6SR36/15 - PD - 20 HP three-phase submersible electric pumpFlow rate up to 800 l/min (48 m³/h). Head up to 187 m. 15 kW (20 HP) motors. | |
|---|---|---|---|---|
| Price | Price €3,191.52 -45% €1,755.34 | Price €2,996.32 -45% €1,647.98 | Price €3,606.32 -45% €1,983.48 | Price €3,769.80 -45% €2,073.39 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 11 | Power (Kw) 9.2 | Power (Kw) 13 | Power (Kw) 15 |
| Power (HP) | Power (HP) 15 | Power (HP) 12.5 | Power (HP) 17.5 | Power (HP) 20 |
| Delivery mouth | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth 3" |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller Noryl | Impeller Brass |
| Number of impellers | Number of impellers 11 | Number of impellers 9 | Number of impellers 13 | Number of impellers 15 |
| Crankshaft | Crankshaft -- | Crankshaft AISI 304 stainless steel | Crankshaft -- | Crankshaft -- |
| Pump shaft | Pump shaft AISI 304 stainless steel | Pump shaft -- | Pump shaft AISI 304 stainless steel | Pump shaft AISI 304 stainless steel |
| Check valve | Check valve -- | Check valve No | Check valve -- | Check valve -- |
| Degree of protection | Degree of protection -- | Degree of protection IP 68 | Degree of protection -- | Degree of protection -- |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 800 | Max. flow rate (l./min.) 800 | Max. flow rate (l./min.) 800 | Max. flow rate (l./min.) 800 |
| Min. head (m.) | Min. head (m.) 46 | Min. head (m.) 37.5 | Min. head (m.) 54.5 | Min. head (m.) 63 |
| Max. head (m.) | Max. head (m.) 137 | Max. head (m.) 112 | Max. head (m.) 162 | Max. head (m.) 187 |
| Cable length (m.) | Cable length (m.) -- | Cable length (m.) 4 | Cable length (m.) -- | Cable length (m.) -- |
| Jobs | Jobs water supply, pressurization systems, irrigation, fire prevention systems | Jobs fire prevention systems, irrigation, pressurization systems, water supply | Jobs water supply, pressurization systems, irrigation, fire prevention systems | Jobs water supply, pressurization systems, irrigation, fire prevention systems |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C |
| Height (cm) | Height (cm) 237.8 | Height (cm) 195.3 | Height (cm) 265.9 | Height (cm) 288.5 |
| External diameter (cm) | External diameter (cm) 149.5 | External diameter (cm) 14.8 | External diameter (cm) 149.5 | External diameter (cm) 149.5 |
| Weight (Kg) | Weight (Kg) 90 | Weight (Kg) 73.9 | Weight (Kg) 102 | Weight (Kg) 107 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
