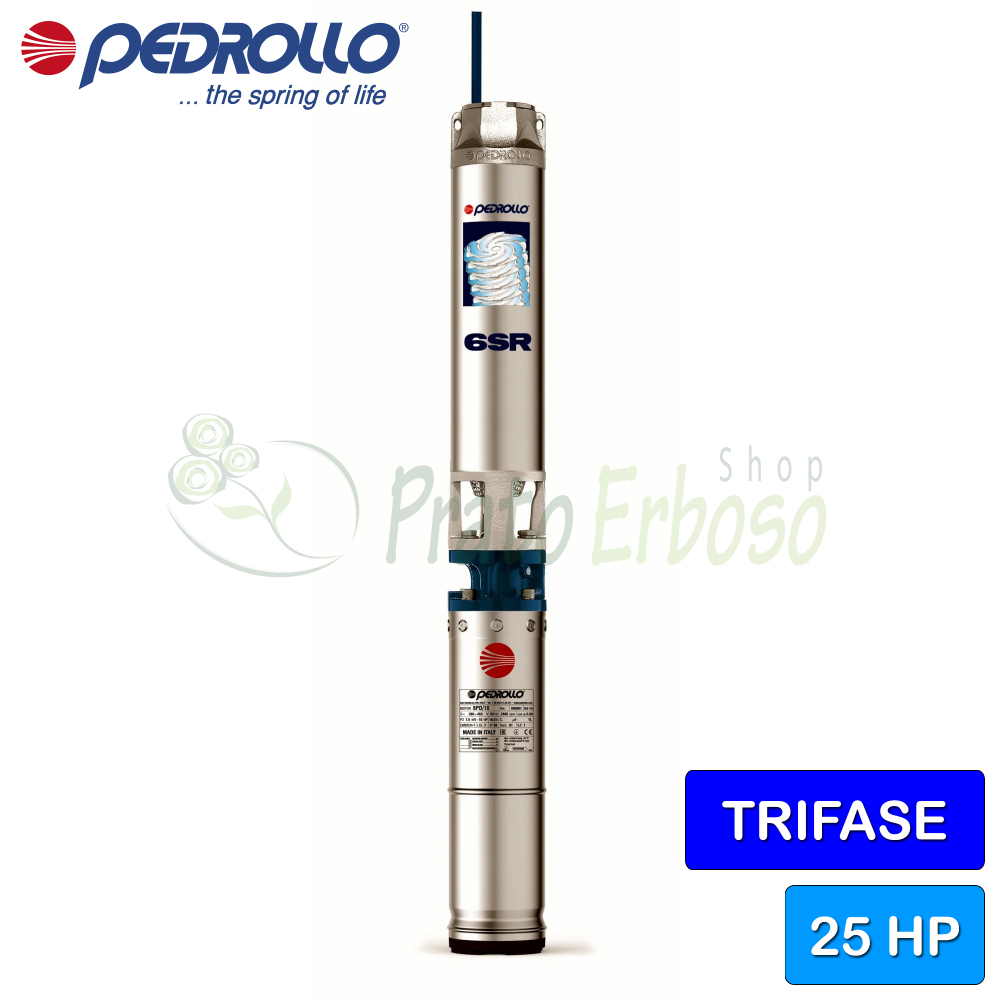

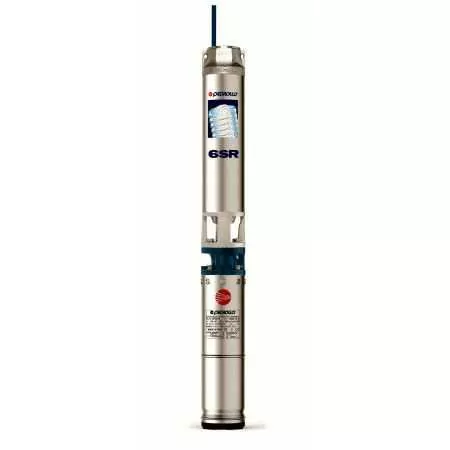

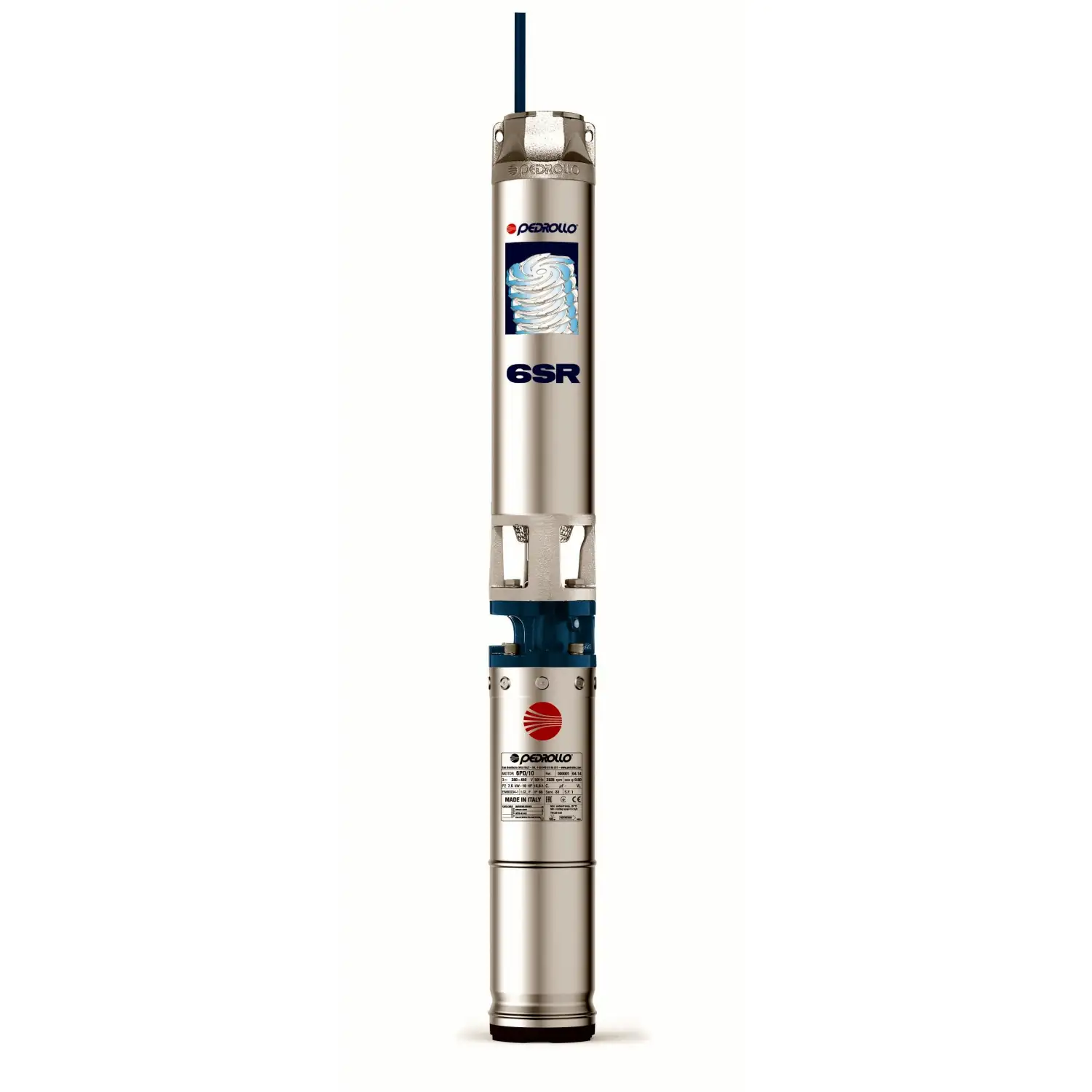

6SR44/16 - PD - 25 HP three-phase submersible electric pump
Flow rate up to 1000 l/min (60 m³/h). Head up to 198 m. 18.5 Kw (25 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The PEDROLLO 6SR44/16 submersible electric pump is recommended for pumping clean water with a sand content not exceeding 100 grams per cubic metre.
The PEDROLLO 6SR44/16 has a flow rate that varies from 200 to 1000 litres per minute with a head from 31 to 198 metres.
Due to its high performance and reliability, it is suitable for use in the civil, industrial and agricultural fields, for the distribution of water in conjunction with pressure tanks, for irrigation, for washing systems, for pressure raising or for fire-fighting systems.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 18.5
- Power (HP)
- 25
- Delivery mouth
- 3 "
- Pump body
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 16
- Pump shaft
- AISI 304 stainless steel
- Min. flow rate (l./min.)
- 200
- Max. flow rate (l./min.)
- 1000
- Min. head (m.)
- 31
- Max. head (m.)
- 198
- Jobs
- water supply, pressurization systems, irrigation, fire prevention systems
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 313.1
- External diameter (cm)
- 149.5
- Weight (Kg)
- 141
- Warranty (years)
- 2
Models and performance 6SR 44
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 6SR36 series
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4021 (AISI 420) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
