6SR44/10 - PD - 15 HP three-phase submersible electric pump
Flow rate up to 1000 l/min (60 m³/h). Head up to 124 m. 11 Kw (15 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Wednesday 12 November - Thursday 13 November |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Wednesday 12 November - Thursday 13 November |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 14 November - Monday 17 November |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 12 November |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Wednesday 12 November |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 12 November - Thursday 13 November
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 12 November - Thursday 13 November
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 14 November - Monday 17 November
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 12 November
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Wednesday 12 November

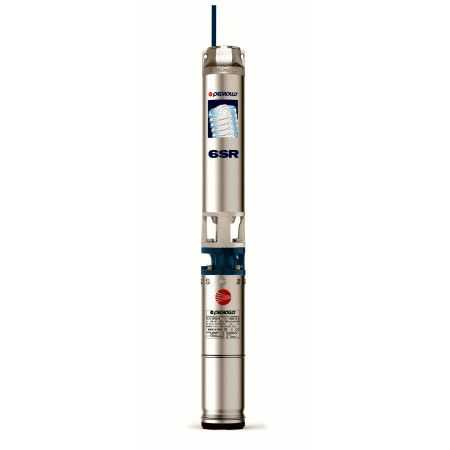

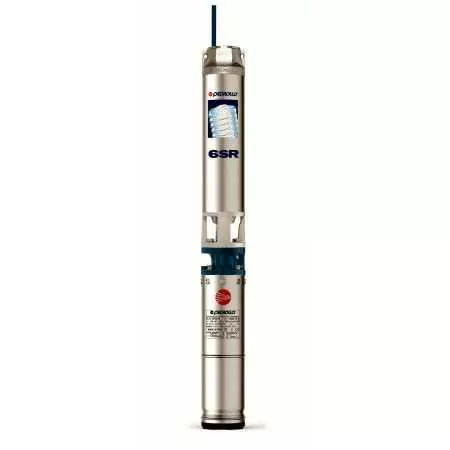

The 6SR44/10 - PD electric pump by Pedrollo is designed and built with the aim of providing good performance and at the same time a solid construction.
Equipped with impellers and diffusers made of special materials that can resist abrasion caused by sand. It supports pumping water for pumping with sand content not exceeding 100 grams per cubic meter.
The 6SR44/10 - PD is recommended for use in the domestic, civil and agricultural sectors, in particular for the distribution of water in conjunction with pressure tanks, for irrigation, for pressure boosting and for fire-fighting systems.
The installation can be carried out up to 200 meters below the water level, thanks to the PD motor equipment and in wells with a diameter greater than 6 inches in diameter.
The flow rate varies from 200 to 1000 litres per minute with a head from 19.5 to 124 metres.
It must be powered by a three-phase voltage, has a horsepower of 15 HP and the temperature of the liquid to be pumped goes up to +35 degrees centigrade.
The 6SR44/10 - PD is made of a mix of cast iron, AISI 304 stainless steel and noryl. Pedrollo has used this mix of materials to create a robust product that resists work and wear.
The 4-meter long power cable is supplied.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 11
- Power (HP)
- 15
- Delivery mouth
- 3"
- Pump body
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 10
- Crankshaft
- AISI 304 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 200
- Max. flow rate (l./min.)
- 1000
- Min. head (m.)
- 19.5
- Max. head (m.)
- 124
- Cable length (m.)
- 4
- Jobs
- fire prevention systems, irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 211.6
- External diameter (cm)
- 14.8
- Weight (Kg)
- 82.1
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4021 (AISI 420) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
