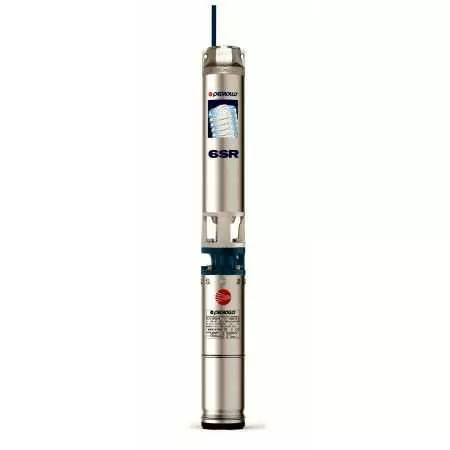

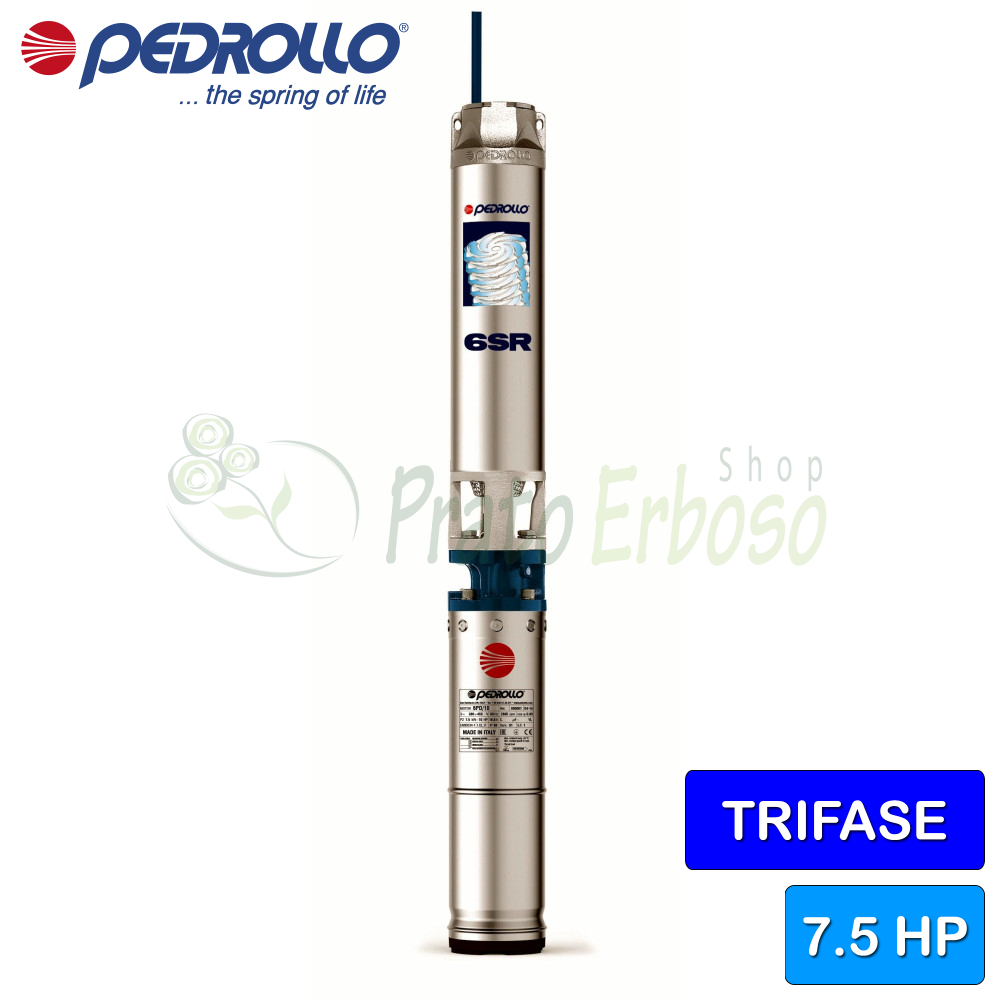

6SR36/6 - PSR - 7.5 HP three-phase submersible electric pump
Flow rate up to 800 l/min (48 m³/h). Head up to 75 m. 5.5 Kw (7.5 HP) motors.
Telephone support for information before purchasing.
After-sales assistance for product installation.
Reinforced packaging to reduce transport damage.
We supply all spare parts on this product.
Description
The 6SR36/6 - PSR submersible electric pump from the 6SR series by Pedrollo is among the best in the 6-inch submersible pump category.
Recommended for civil, agricultural and municipal installations, for water distribution in conjunction with pressure tanks, for irrigation, for pressure boosting and for fire-fighting systems.
It can be installed both vertically and horizontally up to 150 metres deep.
The 6SR36/6 - PSR is equipped with impellers and diffusers made of special materials capable of resisting abrasion caused by sand.
It can pump clean water with sand content not exceeding 100 grams per cubic meter.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 5.5
- Power (HP)
- 7.5
- Delivery mouth
- 3"
- Impeller
- Noryl
- Number of impellers
- 6
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 25
- Max. head (m.)
- 75
- Jobs
- fire prevention systems, irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +35°C
- Warranty (years)
- 2
Models and performance 6SR 36
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the 6SR36 series
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4021 (AISI 420) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
