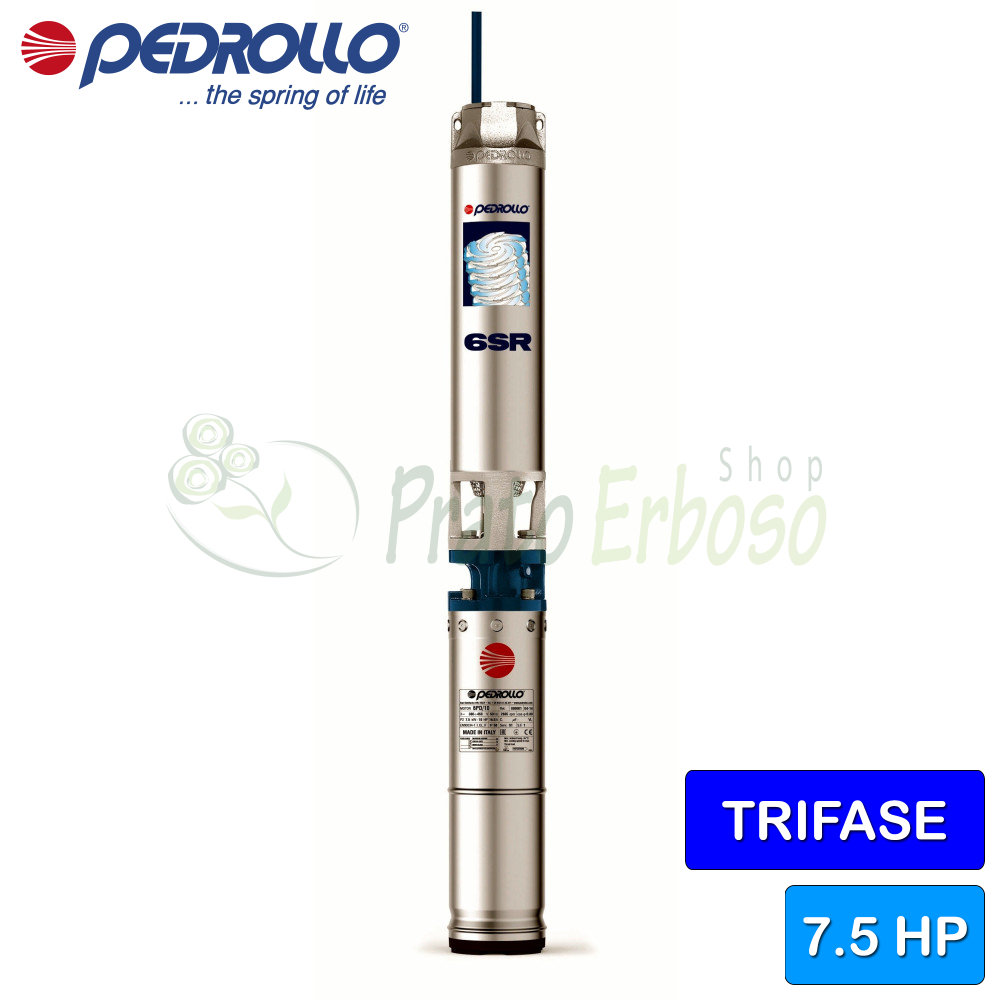

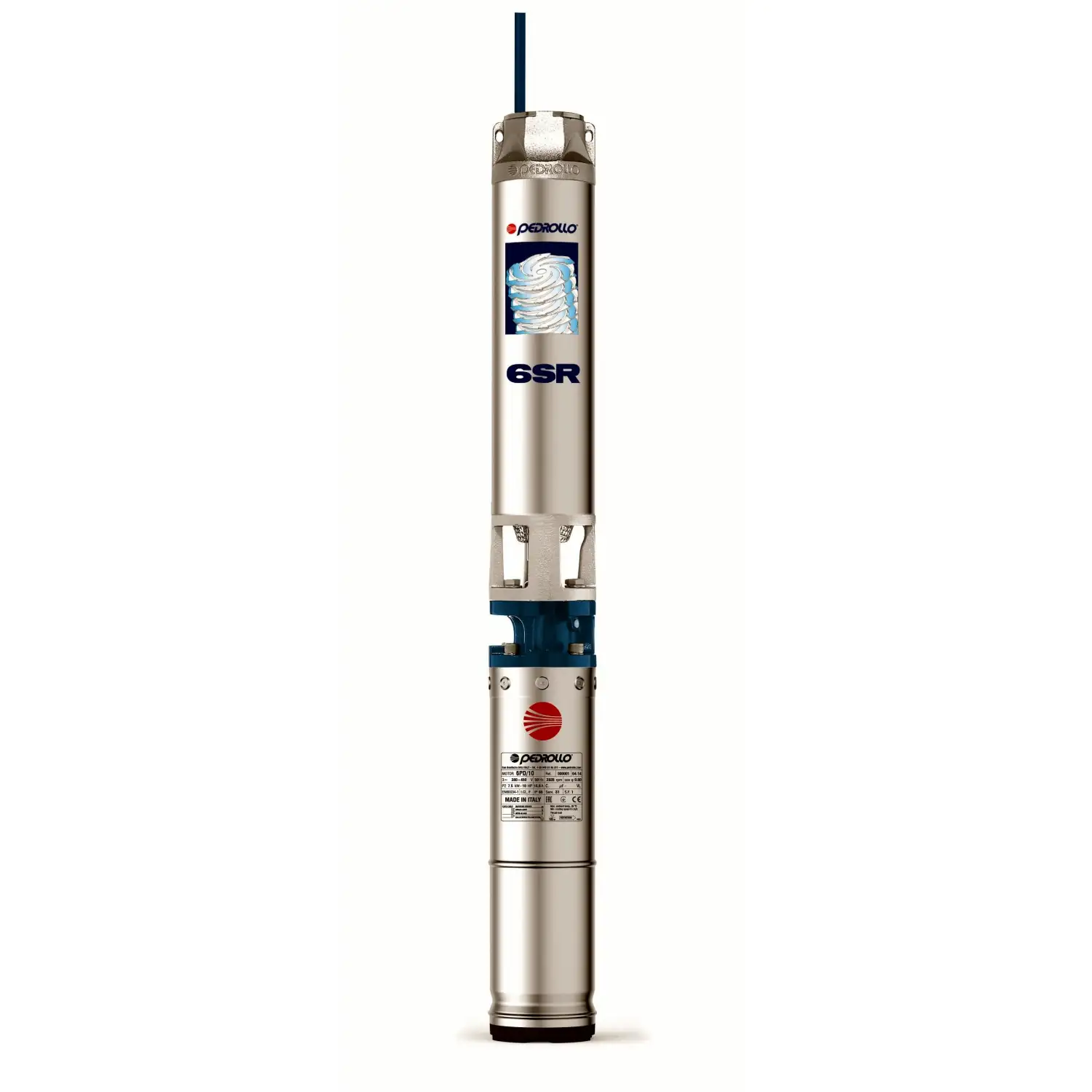

6SR44/5 - PSR - 7.5 HP three-phase submersible electric pump

Name: 6SR44/5 - PSR - 7.5 HP three-phase submersible electric pump
Brand: Pedrollo
SKU: 6SR44/5 - PSR
Price: 1709.71 EUR
Availability: InStock

Flow rate up to 1000 l/min (60 m³/h). Head up to 62 m. 5.5 kW (7.5 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

After-sales assistance for product installation.

Reinforced packaging to reduce transport damage.

We supply all spare parts on this product.

Description

The 6SR44/5 - PSR submersible electric pump from the 6SR series by Pedrollo can be installed both horizontally and vertically up to 150 metres below water level.

Among the best in the 6-inch submersible pump category for reliability and performance.

Pedrollo 's use of cast iron and stainless steel gives the electric pump solidity and resistance.

It can pump clean water with a sand content not exceeding 100 grams per minute.

Equipped with a rewindable oil-bath motor.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 5.5
Power (HP): 7.5
Delivery mouth: 3"
Pump body: Cast iron
Impeller: Noryl
Number of impellers: 5
Pump shaft: AISI 304 stainless steel
Minimum flow rate (l./min.): 200
Max. flow rate (l./min.): 1000
Min. head (m.): 10
Max. head (m.): 62
Jobs: fire prevention systems, irrigation, pressurization systems, water supply
Max. liquid temperature (°C): +35°C
Warranty (years): 2

Attachments

6SR data sheet

Performance, working curves and limits of use of the 6-inch submersible electric pumps of the 6SR series by Pedrollo.

Download (3.88MB)

Models and performance 6SR 44

GUY

three-phase

6SR 44/3

6SR 44/4

6SR 44/5

6SR 44/6

6SR 44/8

6SR 44/9

6SR 44/11

6SR 44/13

6SR 44/16

6SR 44/21

POWER
KW	HP
4	5.5
5.5	7.5
7.5	10
9.2	12.5
11	15
13	17.5
15	20
18.5	25
22	30
30	40

IMPELLERS
number
3
4
5
6
8
9
11
13
16
21

PERFORMANCE
Q litres/min	H meters
200 ÷ 1000	35 ÷ 13
200 ÷ 1000	47 ÷ 18
200 ÷ 1000	58 ÷ 22
200 ÷ 1000	70 ÷ 26
200 ÷ 1000	93 ÷ 35
200 ÷ 1000	105 ÷ 39
200 ÷ 1000	128 ÷ 48
200 ÷ 1000	151 ÷ 57
200 ÷ 1000	186 ÷ 70
200 ÷ 1000	244 ÷ 92

MOUTH
DN
3"

Q	m³/hour	0	12	18	24	30	36	42	48	54	60
Q	l/min	0	200	300	400	500	600	700	800	900	1000
H	meters	35	33	31	30	28	26	23	20	17	13
		47	44	42	40	37	34	31	27	23	18
		58	54	52	49	46	43	38	33	28	22
		70	65	62	59	56	51	46	40	34	26
		93	87	83	79	74	68	61	53	45	35
		105	98	93	89	83	77	69	60	51	39
		128	120	114	109	102	94	84	73	62	48
		151	141	135	128	120	111	99	86	73	57
		186	174	166	158	148	136	122	106	90	70
		244	228	218	207	194	179	160	139	118	Ninety two

Construction data of the 6SR36 series

Bearings

Pump bearing - fixed part	Anti-friction polymer
Pump bearing - rotating part	Sintered AISI 316 steel with ceramic coating

Tree holding

Materials

1.3 - Delivery body	Cast iron GJL 200 EN 1561
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4301 (AISI 304)
4.2 - Towing joint	Stainless steel EN 1.4021 (AISI 420)
5.0 - Stadium box	Stainless steel EN 1.4301 (AISI 304)
5.1 - Diffuser	Reinforced technopolymer
7.0 - Lantern	Cast iron GJL 200 EN 1561
7.1 - Check Valve	Stainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
7.3 - Cable cover	Stainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/Filter	Stainless steel EN 1.4301 (AISI 304)
