6SR36/22 - PSR - 30 HP three-phase submersible electric pump
Flow rate up to 800 l/min (60 m³/h). Head up to 274 m. 22 Kw (30 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 13 November - Friday 14 November |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 13 November - Friday 14 November |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 14 November - Monday 17 November |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 12 November |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Wednesday 12 November |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 13 November - Friday 14 November
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 13 November - Friday 14 November
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 14 November - Monday 17 November
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 12 November
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Wednesday 12 November

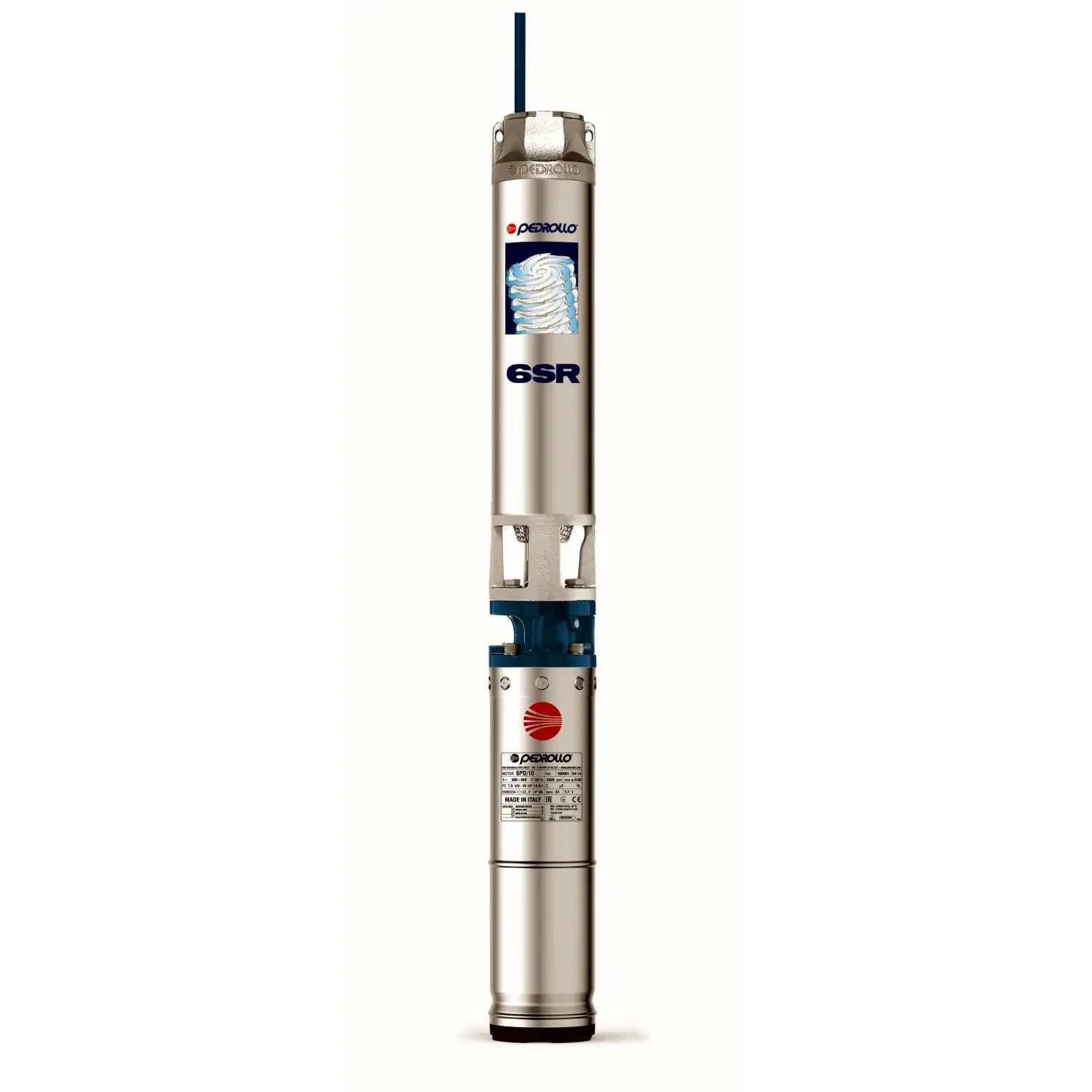

The 6SR36/22 - PSR electric pump by Pedrollo is designed and built with the aim of providing good performance and at the same time a solid construction.
Equipped with impellers and diffusers made of special materials that can resist abrasion caused by sand. It supports pumping water for pumping with sand content not exceeding 100 grams per cubic meter.
The 6SR36/22 - PSR is recommended for use in the domestic, civil and agricultural sectors, in particular for the distribution of water in conjunction with pressure tanks, for irrigation, for pressure boosting and for fire-fighting systems.
The installation can be carried out up to 150 meters below the water level, thanks to the PSR engine and in wells with a diameter greater than 6 inches.
The flow rate varies from 100 to 800 litres per minute with a head from 92 to 274 metres.
It must be powered by a three-phase voltage, has a horsepower of 22 HP and the temperature of the liquid to be pumped goes up to +35 degrees centigrade.
The 6SR36/22 - PSR is made of a mix of cast iron, AISI 304 stainless steel and noryl. Pedrollo has used this mix of materials to create a robust product that resists work and wear.
The 4-meter long power cable is supplied.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 22
- Power (HP)
- 30
- Delivery mouth
- 3"
- Pump body
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 22
- Crankshaft
- AISI 304 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 92
- Max. head (m.)
- 274
- Cable length (m.)
- 4
- Jobs
- fire prevention systems, irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 350.7
- External diameter (cm)
- 14.8
- Weight (Kg)
- 143.9
- Warranty (years)
- 2
Compare with Similar Products
 6SR36/22 - PSR - 30 HP three-phase submersible electric pumpThis product Flow rate up to 800 l/min (60 m³/h). Head up to 274 m. 22 Kw (30 HP) motor. |  6SR36/13 - PSR - 20 HP three-phase submersible electric pumpFlow rate up to 800 l/min (48 m³/h). Head up to 162 m. 15 Kw (20 HP) motors. |  6SR36/15 - PSR - 20 HP three-phase submersible electric pumpFlow rate up to 800 l/min (48 m³/h). Head up to 167 m. 15 Kw (20 HP) motors. |  6SR36/18 - PSR - 25 HP three-phase submersible electric pumpFlow rate up to 800 l/min (60 m³/h). Head up to 224 m. 18.5 Kw (25 HP) motor. | |
|---|---|---|---|---|
| Price | Price €5,956.04 -45% €3,275.82 | Price €4,108.96 -45% €2,259.93 | Price €4,523.76 -45% €2,488.07 | Price €4,964.18 -45% €2,730.30 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 22 | Power (Kw) 15 | Power (Kw) 15 | Power (Kw) 18.5 |
| Power (HP) | Power (HP) 30 | Power (HP) 20 | Power (HP) 20 | Power (HP) 25 |
| Delivery mouth | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth 3" |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller Brass | Impeller Noryl |
| Number of impellers | Number of impellers 22 | Number of impellers 13 | Number of impellers 15 | Number of impellers 18 |
| Crankshaft | Crankshaft AISI 304 stainless steel | Crankshaft -- | Crankshaft -- | Crankshaft AISI 304 stainless steel |
| Pump shaft | Pump shaft -- | Pump shaft AISI 304 stainless steel | Pump shaft AISI 304 stainless steel | Pump shaft -- |
| Check valve | Check valve No | Check valve -- | Check valve -- | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection -- | Degree of protection -- | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 800 | Max. flow rate (l./min.) 800 | Max. flow rate (l./min.) 800 | Max. flow rate (l./min.) 800 |
| Min. head (m.) | Min. head (m.) 92 | Min. head (m.) 54.5 | Min. head (m.) 63 | Min. head (m.) 75 |
| Max. head (m.) | Max. head (m.) 274 | Max. head (m.) 162 | Max. head (m.) 187 | Max. head (m.) 224 |
| Cable length (m.) | Cable length (m.) 4 | Cable length (m.) -- | Cable length (m.) -- | Cable length (m.) 4 |
| Jobs | Jobs fire prevention systems, irrigation, pressurization systems, water supply | Jobs fire prevention systems, irrigation, pressurization systems, water supply | Jobs fire prevention systems, irrigation, pressurization systems, water supply | Jobs fire prevention systems, irrigation, pressurization systems, water supply |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C |
| Height (cm) | Height (cm) 350.7 | Height (cm) -- | Height (cm) -- | Height (cm) 302.8 |
| External diameter (cm) | External diameter (cm) 14.8 | External diameter (cm) -- | External diameter (cm) -- | External diameter (cm) 14.8 |
| Weight (Kg) | Weight (Kg) 143.9 | Weight (Kg) -- | Weight (Kg) -- | Weight (Kg) 126.7 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
