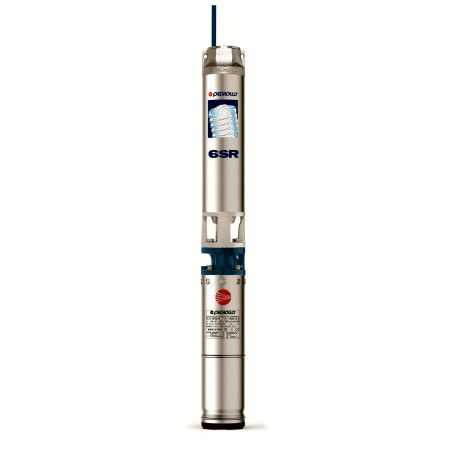

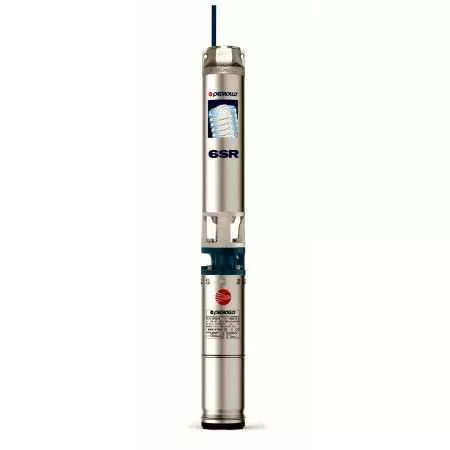

6SR36/7 - PSR - 10 HP three-phase submersible electric pump
Flow rate up to 800 l/min (60 m³/h). Head up to 87 m. 7.5 Kw (10 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 13 November - Friday 14 November |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 13 November - Friday 14 November |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 14 November - Monday 17 November |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 12 November |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Wednesday 12 November |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 13 November - Friday 14 November
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 13 November - Friday 14 November
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 14 November - Monday 17 November
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 12 November
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Wednesday 12 November
The 6SR36/7 - PSR electric pump by Pedrollo is suitable for use in the civil and agricultural sectors, in particular for diversified applications such as industrial, municipal and agricultural water needs, for the distribution of water in conjunction with pressure tanks, for irrigation, for pressure boosting and for fire-fighting systems.
The special feature of this pump is the construction of the impellers and diffusers made in such a way as to resist abrasion caused by sand. The pump allows the pumping of water with sand content up to 100 grams per cubic meter.
The 6SR36/7 - PSR can be housed in wells with diameters greater than 6 inches.
It is equipped with a rewindable oil-bath PSR motor which allows it to be installed up to 150 metres underground.
The flow rate varies from 200 to 800 litres per minute with a head from 29.5 to 87 metres.
The 6SR36/7 - PSR must be powered by a three-phase voltage, has a horsepower of 10 HP and the temperature of the liquid to be pumped goes up to +35 degrees centigrade.
The pump is made of a mix of cast iron, AISI 304 stainless steel and noryl. Pedrollo has used this mix of materials to create a robust product that resists work and wear.
The 4-meter long power cable is supplied.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 7.5
- Power (HP)
- 10
- Delivery mouth
- 3"
- Pump body
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 7
- Crankshaft
- AISI 304 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 200
- Max. flow rate (l./min.)
- 800
- Min. head (m.)
- 29.5
- Max. head (m.)
- 87
- Cable length (m.)
- 4
- Jobs
- fire prevention systems, irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 172.6
- External diameter (cm)
- 14.8
- Weight (Kg)
- 83.2
- Warranty (years)
- 2
Compare with Similar Products
 6SR36/7 - PSR - 10 HP three-phase submersible electric pumpThis product Flow rate up to 800 l/min (60 m³/h). Head up to 87 m. 7.5 Kw (10 HP) motor. |  6SR36/6 - PSR - 7.5 HP three-phase submersible electric pumpFlow rate up to 800 l/min (48 m³/h). Head up to 75 m. 5.5 Kw (7.5 HP) motors. |  6SR36/9 - PSR - 12.5 HP three-phase submersible electric pumpFlow rate up to 800 l/min (60 m³/h). Head up to 112 m. 9.2 Kw (12.5 HP) motor. |  6SR36/11 - PSR - 15 HP three-phase submersible electric pumpFlow rate up to 800 l/min (48 m³/h). Head up to 137 m. 11 Kw (15 HP) motors. | |
|---|---|---|---|---|
| Price | Price €3,307.42 -45% €1,819.08 | Price €3,161.02 -45% €1,738.56 | Price €3,541.66 -45% €1,947.91 | Price €3,900.34 -45% €2,145.19 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 7.5 | Power (Kw) 5.5 | Power (Kw) 9.2 | Power (Kw) 11 |
| Power (HP) | Power (HP) 10 | Power (HP) 7.5 | Power (HP) 12.5 | Power (HP) 15 |
| Delivery mouth | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth 3" |
| Pump body | Pump body Cast iron | Pump body -- | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 7 | Number of impellers 6 | Number of impellers 9 | Number of impellers 11 |
| Crankshaft | Crankshaft AISI 304 stainless steel | Crankshaft -- | Crankshaft AISI 304 stainless steel | Crankshaft -- |
| Pump shaft | Pump shaft -- | Pump shaft -- | Pump shaft -- | Pump shaft AISI 304 stainless steel |
| Check valve | Check valve No | Check valve -- | Check valve No | Check valve -- |
| Degree of protection | Degree of protection IP 68 | Degree of protection -- | Degree of protection IP 68 | Degree of protection -- |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 200 | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 200 | Minimum flow rate (l./min.) 100 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 800 | Max. flow rate (l./min.) 800 | Max. flow rate (l./min.) 800 | Max. flow rate (l./min.) 800 |
| Min. head (m.) | Min. head (m.) 29.5 | Min. head (m.) 25 | Min. head (m.) 37.5 | Min. head (m.) 46 |
| Max. head (m.) | Max. head (m.) 87 | Max. head (m.) 75 | Max. head (m.) 112 | Max. head (m.) 137 |
| Cable length (m.) | Cable length (m.) 4 | Cable length (m.) -- | Cable length (m.) 4 | Cable length (m.) -- |
| Jobs | Jobs fire prevention systems, irrigation, pressurization systems, water supply | Jobs fire prevention systems, irrigation, pressurization systems, water supply | Jobs fire prevention systems, irrigation, pressurization systems, water supply | Jobs fire prevention systems, irrigation, pressurization systems, water supply |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C |
| Height (cm) | Height (cm) 172.6 | Height (cm) -- | Height (cm) 195.3 | Height (cm) -- |
| External diameter (cm) | External diameter (cm) 14.8 | External diameter (cm) -- | External diameter (cm) 14.8 | External diameter (cm) -- |
| Weight (Kg) | Weight (Kg) 83.2 | Weight (Kg) -- | Weight (Kg) 90.3 | Weight (Kg) -- |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
