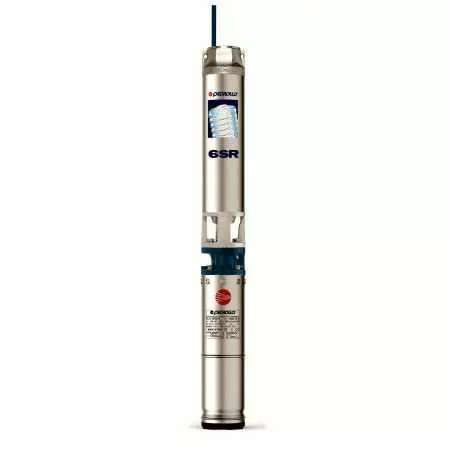

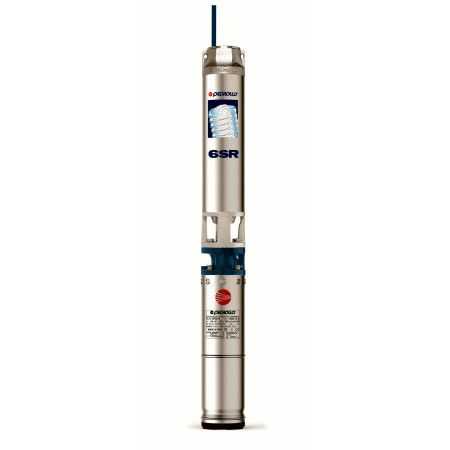

6SR44/14 - PSR - 20 HP three-phase submersible electric pump
Flow rate up to 1000 l/min (60 m³/h). Head up to 174 m. 15 Kw (20 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 13 November - Friday 14 November |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 13 November - Friday 14 November |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Friday 14 November - Monday 17 November |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 12 November |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Wednesday 12 November |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 13 November - Friday 14 November
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 13 November - Friday 14 November
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 14 November - Monday 17 November
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 12 November
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Wednesday 12 November
The 6SR44/14 - PSR electric pump by Pedrollo is suitable for use in the civil and agricultural sectors.
The special feature of this pump is the construction of the impellers and diffusers made in such a way as to resist abrasion caused by sand. The pump allows the pumping of water with sand content up to 100 grams per cubic meter.
The 6SR44/14 - PSR is suitable for diversified applications such as industrial, municipal and agricultural water needs, for water distribution in conjunction with pressure tanks, for irrigation, for pressure boosting and for fire-fighting systems.
The pump can be installed in wells with diameters greater than 6 inches and up to 150 meters deep.
It is equipped with a rewindable oil-bath PD motor.
The 6SR44/14 - PSR has a flow rate ranging from 200 to 1000 litres per minute with a head from 27.5 to 174 metres.
It must be powered by a three-phase voltage, has a horsepower of 20 HP and the temperature of the liquid to be pumped goes up to +35 degrees centigrade.
The 6SR44/14 - PSR has a body made of cast iron, impellers in noryl and the pump shaft in AISI 304 stainless steel. The use of these materials makes the pump resistant, robust and allows it to last over time.
The 4-meter long power cable is supplied.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 15
- Power (HP)
- 20
- Delivery mouth
- 3"
- Pump body
- Cast iron
- Impeller
- Noryl
- Number of impellers
- 14
- Crankshaft
- AISI 304 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 200
- Max. flow rate (l./min.)
- 1000
- Min. head (m.)
- 27.5
- Max. head (m.)
- 174
- Cable length (m.)
- 4
- Jobs
- fire prevention systems, irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- +35°C
- Height (cm)
- 258.5
- External diameter (cm)
- 14.8
- Weight (Kg)
- 115.5
- Warranty (years)
- 2
Bearings
| Pump bearing - fixed part | Anti-friction polymer |
| Pump bearing - rotating part | Sintered AISI 316 steel with ceramic coating |
Tree holding
Materials
| 1.3 - Delivery body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4301 (AISI 304) |
| 4.2 - Towing joint | Stainless steel EN 1.4021 (AISI 420) |
| 5.0 - Stadium box | Stainless steel EN 1.4301 (AISI 304) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 7.0 - Lantern | Cast iron GJL 200 EN 1561 |
| 7.1 - Check Valve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
Compare with Similar Products
 6SR44/14 - PSR - 20 HP three-phase submersible electric pumpThis product Flow rate up to 1000 l/min (60 m³/h). Head up to 174 m. 15 Kw (20 HP) motor. |  6SR44/12 - PSR - 17.5 HP three-phase submersible electric pumpFlow rate up to 1000 l/min (60 m³/h). Head up to 149 m. 13 Kw (17.5 HP) motor. |  6SR44/16 - PSR - 25 HP three-phase submersible electric pumpFlow rate up to 1000 l/min (60 m³/h). Head up to 186 m. 18.5 Kw (25 HP) motor. |  6SR44/20 - PSR - 30 HP three-phase submersible electric pumpFlow rate up to 1000 l/min (60 m³/h). Head up to 248 m. 22 Kw (30 HP) motor. | |
|---|---|---|---|---|
| Price | Price €4,435.92 -45% €2,439.76 | Price €4,058.94 -45% €2,232.42 | Price €4,875.12 -45% €2,681.32 | Price €5,843.80 -45% €3,214.09 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 15 | Power (Kw) 13 | Power (Kw) -- | Power (Kw) 22 |
| Power (HP) | Power (HP) 20 | Power (HP) 17.5 | Power (HP) 25 | Power (HP) 30 |
| Delivery mouth | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth 3" |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 14 | Number of impellers 12 | Number of impellers 16 | Number of impellers 20 |
| Crankshaft | Crankshaft AISI 304 stainless steel | Crankshaft AISI 304 stainless steel | Crankshaft -- | Crankshaft AISI 304 stainless steel |
| Pump shaft | Pump shaft -- | Pump shaft -- | Pump shaft AISI 304 stainless steel | Pump shaft -- |
| Check valve | Check valve No | Check valve No | Check valve -- | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection -- | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 200 | Minimum flow rate (l./min.) 200 | Minimum flow rate (l./min.) 200 | Minimum flow rate (l./min.) 200 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 1000 | Max. flow rate (l./min.) 1000 | Max. flow rate (l./min.) 1000 | Max. flow rate (l./min.) 1000 |
| Min. head (m.) | Min. head (m.) 27.5 | Min. head (m.) 23.5 | Min. head (m.) 31 | Min. head (m.) 39 |
| Max. head (m.) | Max. head (m.) 174 | Max. head (m.) 149 | Max. head (m.) 198 | Max. head (m.) 248 |
| Cable length (m.) | Cable length (m.) 4 | Cable length (m.) 4 | Cable length (m.) -- | Cable length (m.) 4 |
| Jobs | Jobs fire prevention systems, irrigation, pressurization systems, water supply | Jobs fire prevention systems, irrigation, pressurization systems, water supply | Jobs fire prevention systems, irrigation, pressurization systems, water supply | Jobs fire prevention systems, irrigation, pressurization systems, water supply |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C | Max. liquid temperature (°C) +35°C |
| Height (cm) | Height (cm) 258.5 | Height (cm) 232.8 | Height (cm) -- | Height (cm) 331.0 |
| External diameter (cm) | External diameter (cm) 14.8 | External diameter (cm) 14.8 | External diameter (cm) -- | External diameter (cm) 14.8 |
| Weight (Kg) | Weight (Kg) 115.5 | Weight (Kg) 105.0 | Weight (Kg) -- | Weight (Kg) 139.9 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
