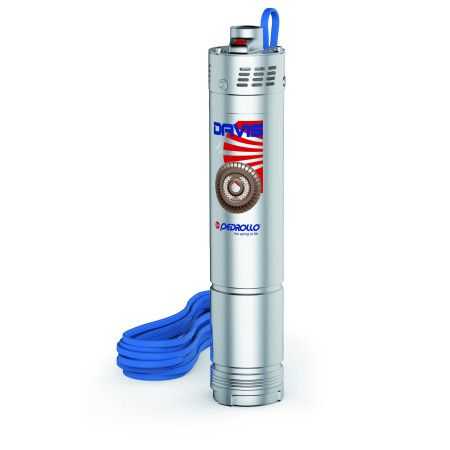

DAVIS (20m) - Single-phase submersible electric pump with 1 HP peripheral impeller
Flow rate up to 50 l/min (3 m³/h). Head up to 68 m. 0.75 Kw (1 HP) motor. 20 meters of cable.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Wednesday 12 November - Thursday 13 November |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Wednesday 12 November - Thursday 13 November |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Wednesday 12 November - Thursday 13 November |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 12 November |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Wednesday 12 November |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 12 November - Thursday 13 November
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 12 November - Thursday 13 November
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 12 November - Thursday 13 November
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 12 November
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Wednesday 12 November
Monobloc submersible electric pump in stainless steel ready to install.
It comes complete with a built-in capacitor and thermal motor protector and a 20-metre power cable.
It is recommended for pumping clean water without abrasive particles and liquids that are not chemically aggressive for the materials from which the pump is made.
Due to its compactness and low cost, it is recommended for domestic use and in particular for the distribution of water in combination with small pressure tanks, for irrigation, etc.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 5.7
- Capacitor
- 31.5 µF 450 VL
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- Brass
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 50
- Min. head (m.)
- 5
- Max. head (m.)
- 68
- Cable length (m.)
- 20
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- 40
- Height (cm)
- 47
- External diameter (cm)
- 10.1
- Weight (Kg)
- 12.6
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203 ZZ - C3E |
| Opposite side engine bearing | 6203 ZZ - C3E |
Tree holding
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | AR-14 |
| LM diameter | 14 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | ST1-14 SIC |
| LP diameter | 14 |
| LP fixed ring | Ceramic |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.3 - Delivery body | Stainless steel EN 1.4301 (AISI 304) |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.1 - Crankshaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.2 - Engine sleeve | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
