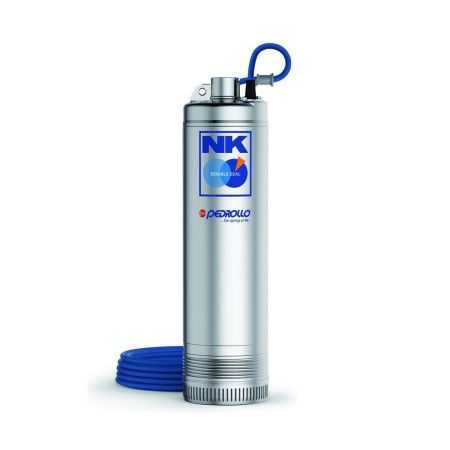

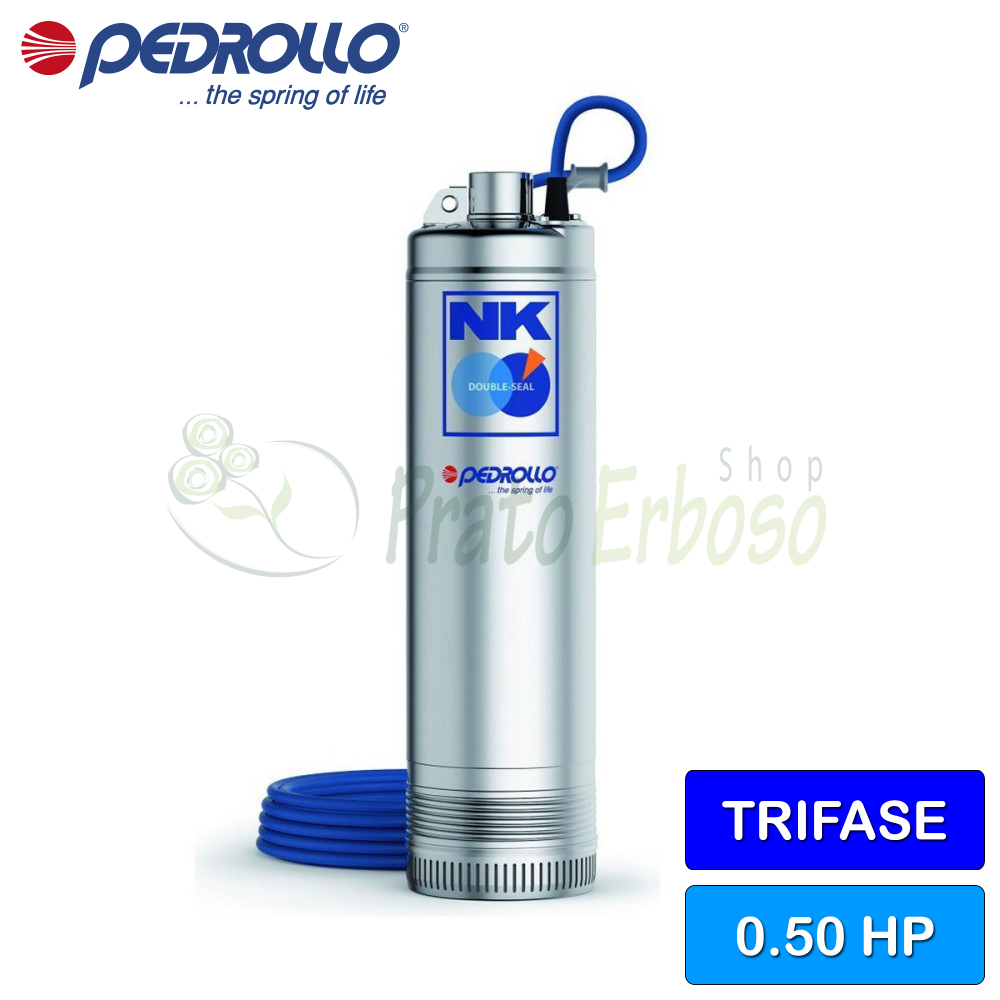

NK 2/2 (10m) - Three-phase submersible electric pump 230 V 0.50 HP

Name: NK 2/2 (10m) - Three-phase submersible electric pump 230 V 0.50 HP
Brand: Pedrollo
SKU: NK 2/2 230/240 V 10m
Price: 389.18 EUR
Availability: OutOfStock

Flow rate up to 80 l/min (4.8 m³/h). Head up to 33 m. 0.37 Kw (0.5 HP) motor. 10 meters of cable.

€389.18 Tax included

€319.00 Tax excluded

€671.00 -42%

Out-of-Stock

Quantity

Variants:

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The PEDROLLO NK 2/2 submersible pump is recommended for pumping clean water with a sand content not exceeding 50 g/m³.

Due to their high performance and reliability, they are recommended for pumping clean water in the domestic, civil and agricultural sectors, for distributing water in conjunction with pressure tanks, for irrigating vegetable gardens and gardens, for increasing pressure, etc.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 0.37
Power (HP): 0.50
Absorption at 230V (A): 2.8
Delivery mouth: 1" 1/4
Pump body: AISI 304 stainless steel
Impeller: Noryl
Number of impellers: 2
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 68
Minimum flow rate (l./min.): 10
Max. flow rate (l./min.): 80
Min. head (m.): 16.4
Max. head (m.): 33
Cable length (m.): 10
Jobs: water supply, pressurization systems, irrigation
Max. liquid temperature (°C): +40°C
Height (cm): 45.9
External diameter (cm): 13.5
Weight (Kg): 13
Warranty (years): 2

Attachments

Technical data sheet NK

Construction and operating characteristics. Working curves, limits of use and dimensions of Pedrollo NK series pumps.

Download (1.73MB)

NK models and performances

GUY

three-phase

NK 2/2

NK 2/3

NK 2/4

NK 2/5

NK 2/6

NK 4/3

NK 4/4

NK 4/5

NK 4/6

NK 8/3

NK 8/4

POWER
KW	HP
0.37	0.50
0.55	0.75
0.75	1
1.1	1.5
1.5	2
0.55	0.75
0.75	1
1.1	1.5
1.5	2
1.1	1.5
1.5	2

IMPELLERS
number
2
3
4
5
6
3
4
5
6
3
4

PERFORMANCE
Q litres/min	H meters
10 ÷ 80	33 ÷ 17
10 ÷ 80	48 ÷ 23
10 ÷ 80	63÷31
10 ÷ 80	81 ÷ 40
10 ÷ 80	95 ÷ 48
20 ÷ 120	40 ÷ 12
20 ÷ 120	53 ÷ 16
20 ÷ 120	67 ÷ 20
20 ÷ 120	80 ÷ 24
40 ÷ 160	40 ÷ 16
40 ÷ 160	52 ÷ 21

MOUTH
DN
1 1/4"

Q	m³/hour	0	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8	6.0	6.6	7.2	8.4	9.6
Q	l/min	0	10	20	30	40	50	60	70	80	100	110	120	140	160
H	meters	33	32	31	29.5	28	26	23.5	20.5	17
		48	46	44.5	42.8	40.5	37.5	33.5	29	23
		63	61	59	57	54	50	45	39	31
		81	79	75.5	73	68.5	63.5	57.5	49.5	40
		95	93	90	87	82	76	68.5	59.5	48
		40	-	39	38	37	35	33	30.5	28	20.5	16.5	12
		53	-	52	50.5	49	46.5	44	40.5	37	27.5	22	16
		67	-	65	63.5	61.5	58	55	50.5	46.5	34	27.5	20
		80	-	78	76	74	70	66	61	56	41	33	24
		40	-	-	-	39	38	37.5	36.5	35	32	30	28	22.5	16
		52	-	-	-	51	50	49	48	46	42	39	36	29	21

Construction data of the NK 2 series

Bearings

Pump side motor bearing	6303 2RS - C3
Opposite side engine bearing	6203 ZZ - C3E

Tree holding

Type of seal	Double mechanical seal in oil chamber
Engine side model	STA-17
LM diameter	17
LM fixed ring	Ceramic
LM rotating ring	Graphite
LM elastomer	NBR
Shrinkage DN1=450 DN2=350	ST1-16
LP diameter	16
LP fixed ring	Silicon carbide
LP rotating ring	Graphite
LP elastomer	NBR

Materials

2.1 - Seal holder cover	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
5.1 - Diffuser	Reinforced technopolymer
5.3 - Diaphragm/Diffuser Cover	Stainless steel EN 1.4301 (AISI 304)
6.2 - Engine sleeve	Stainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/Filter	Stainless steel EN 1.4301 (AISI 304)
