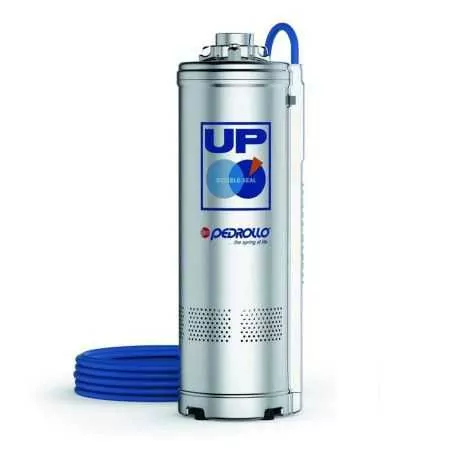

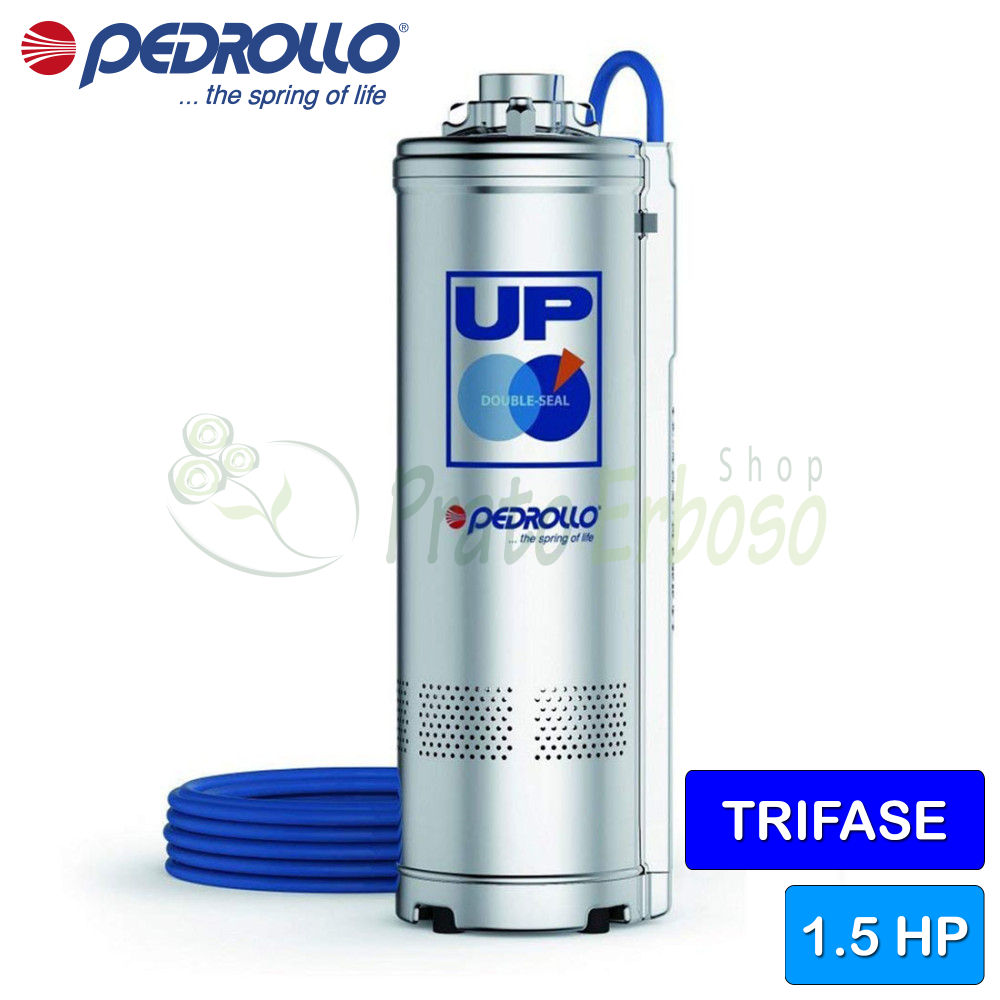

UP 4/5 (10m) - 1.5 HP 400 V three-phase submersible electric pump
Flow rate up to 120 l/min (7.2 m³/h). Head up to 67 m. 1.1 kW (1.5 HP) motor. 10 m cable.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Tuesday 24 February - Wednesday 25 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Tuesday 24 February - Wednesday 25 February |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Tuesday 24 February - Wednesday 25 February |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Tuesday 24 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Tuesday 24 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 24 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Tuesday 24 February
The UP 4/5 submersible electric pump from Pedrollo 's UP series can be installed up to 20 metres below water level.
It can be placed both vertically and horizontally.
It has a power of 1.5 HP. The flow rate varies from 20 to 120 liters and the head from 20 to 67 liters.
It can pump clean water and non-aggressive liquids for components with a maximum sand content of 150 grams per cubic meter.
The UP 4/5 is solid and resistant thanks to Pedrollo 's use of AISI 304 and 431 stainless steel in its construction.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Current consumption at 400V (A)
- 2.8
- Delivery mouth
- 1" 1/4
- Pump body
- AISI 304 stainless steel
- Impeller
- Noryl
- Number of impellers
- 5
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 20
- Max. head (m.)
- 67
- Cable length (m.)
- 10
- Jobs

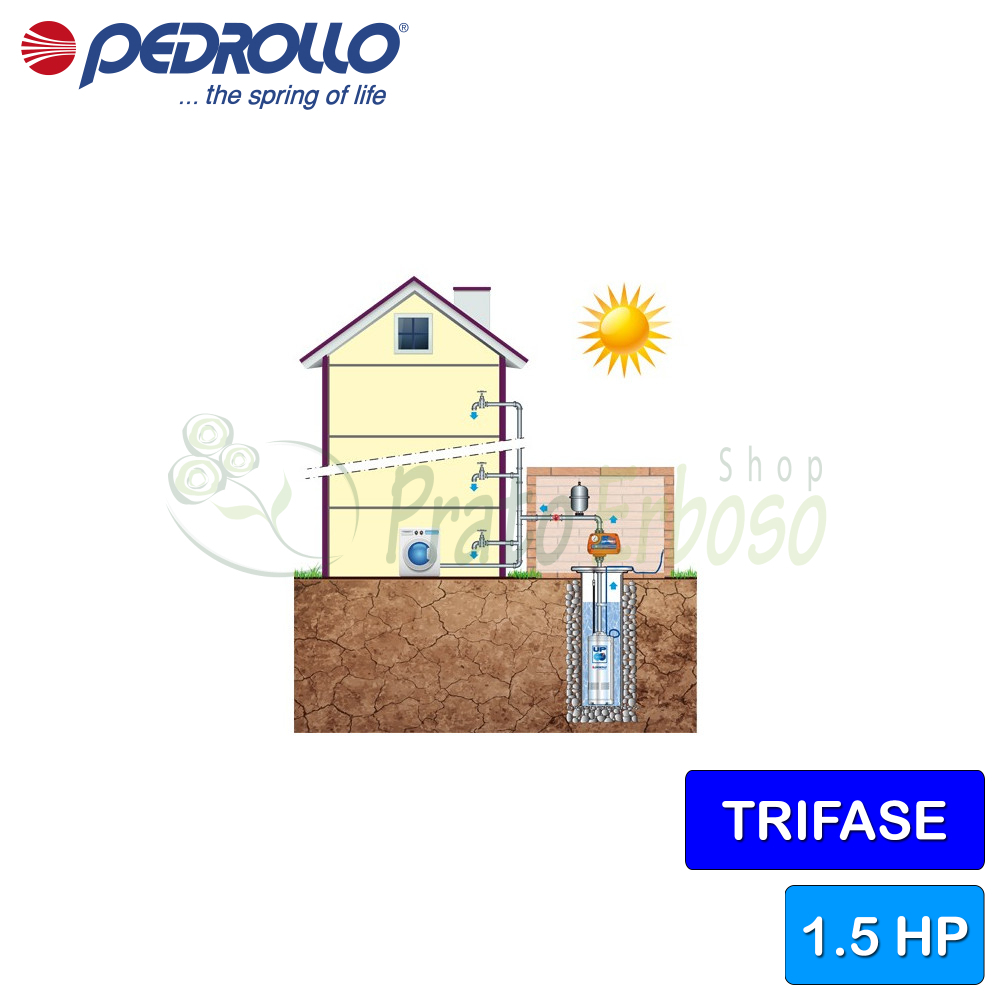

- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 50.9
- External diameter (cm)
- 15
- Weight (Kg)
- 15.3
- Warranty (years)
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
- -42%
€43.87 tax incl. €75.64
Reviews (1) - Review moderation
I ordered the wrong product to start with but your customer support reacted quickly to my request for a change. The product was very good value and the delivery was fast.
Compare with Similar Products
 UP 4/5 (10m) - 1.5 HP 400 V three-phase submersible electric pumpThis product Flow rate up to 120 l/min (7.2 m³/h). Head up to 67 m. 1.1 kW (1.5 HP) motor. 10 m cable. |  UP 4/3 (10m) - 0.75 HP 400 V three-phase submersible electric pumpFlow rate up to 120 l/min (7.2 m³/h). Head up to 40 m. 0.55 kW (0.75 HP) motor. 10 m cable. |  UP 4/4 (10m) - 1 HP 400 V three-phase submersible electric pumpFlow rate up to 120 l/min (7.2 m³/h). Head up to 53 m. 0.75 kW (1 HP) motor. 10 m cable. |  UP 4/6 (10m) - 2 HP 400 V three-phase submersible electric pumpFlow rate up to 120 l/min (7.2 m³/h). Head up to 80 m. 1.5 kW (2 HP) motor. 10 m cable. | |
|---|---|---|---|---|
| Price | Price €694.18 -42% €402.62 | Price €625.86 -42% €363.00 | Price €656.36 -42% €380.69 | Price €718.58 -42% €416.78 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.1 | Power (Kw) 0.55 | Power (Kw) 0.75 | Power (Kw) 1.5 |
| Power (HP) | Power (HP) 1.5 | Power (HP) 0.75 | Power (HP) 1 | Power (HP) 2 |
| Current consumption at 400V (A) | Current consumption at 400V (A) 2.8 | Current consumption at 400V (A) 1.8 | Current consumption at 400V (A) 2.2 | Current consumption at 400V (A) 3.2 |
| Delivery mouth | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 |
| Pump body | Pump body AISI 304 stainless steel | Pump body -- | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel |
| Impeller | Impeller Noryl | Impeller -- | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 5 | Number of impellers -- | Number of impellers 4 | Number of impellers 6 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft -- | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve -- | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection -- | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 120 |
| Min. head (m.) | Min. head (m.) 20 | Min. head (m.) 12 | Min. head (m.) 16 | Min. head (m.) 24 |
| Max. head (m.) | Max. head (m.) 67 | Max. head (m.) 40 | Max. head (m.) 53 | Max. head (m.) 80 |
| Cable length (m.) | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 |
| Jobs | Jobs water supply, pressurization systems, irrigation | Jobs irrigation, pressurization systems, water supply | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 50.9 | Height (cm) 42.5 | Height (cm) 48.2 | Height (cm) 55.6 |
| External diameter (cm) | External diameter (cm) 15 | External diameter (cm) 15 | External diameter (cm) 15 | External diameter (cm) 15 |
| Weight (Kg) | Weight (Kg) 15.3 | Weight (Kg) 14 | Weight (Kg) 13.5 | Weight (Kg) 16.9 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) -- | Warranty (years) 2 | Warranty (years) 2 |
