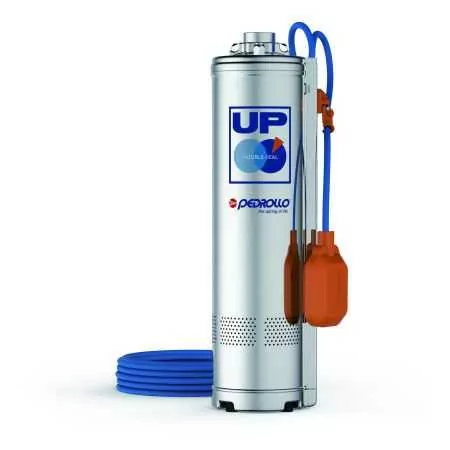

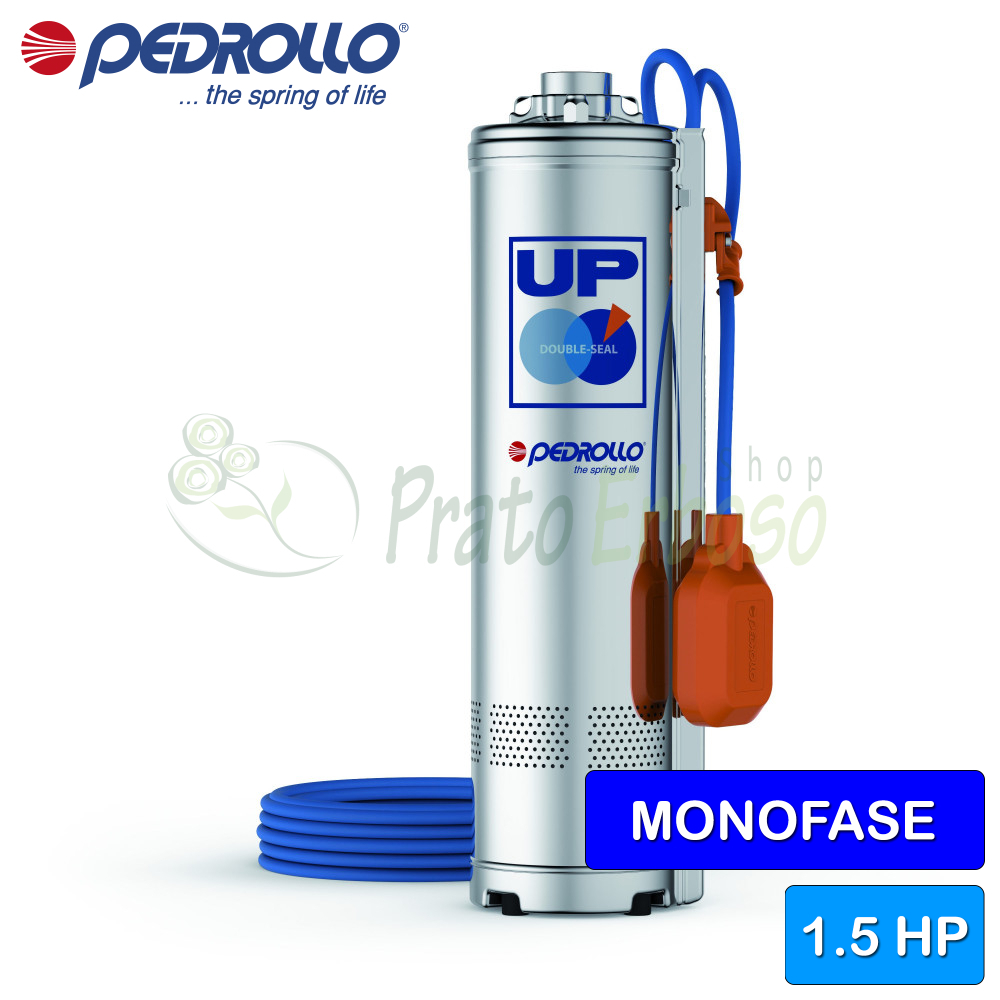

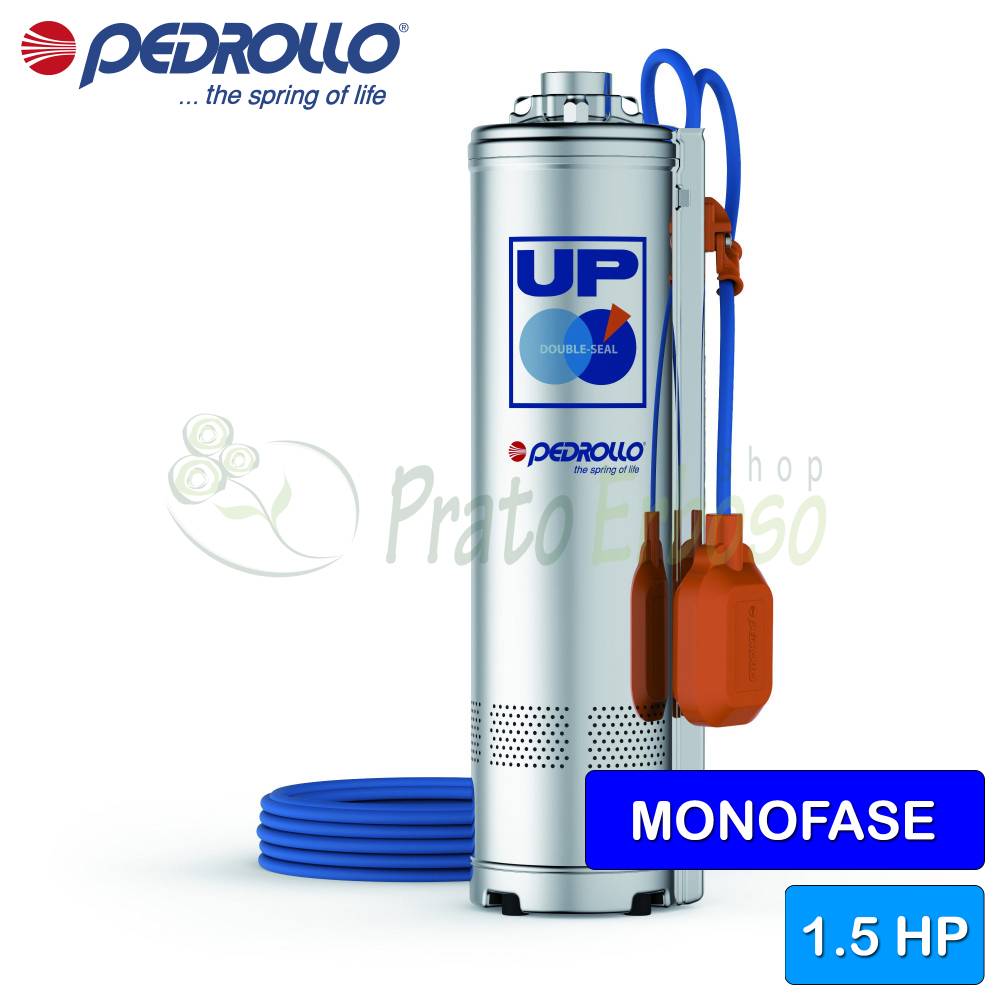

UPm 2/5-GE (10m) - 1.5 HP single-phase submersible electric pump with float switch

Flow rate up to 80 l/min (4.8 m³/h). Head up to 80 m. 1.1 kW (1.5 HP) motor. 10 m cable.

€393.43 Tax included

€322.48 Tax excluded

€678.32-42%

Variants:
UPm 2/2-GE (10m) - Elettropompa sommersa monofase con galleggiante da 0.50 HP
UPm 2/3-GE (10m) - Elettropompa sommersa monofase con galleggiante da 0.75 HP
UPm 2/4-GE (10m) - Elettropompa sommersa monofase con galleggiante da 1 HP
UPm 2/5-GE (10m) - Elettropompa sommersa monofase con galleggiante da 1.5 HP
UPm 2/6-GE (10m) - Elettropompa sommersa monofase con galleggiante da 2 HP
(4,5/5) out of 2 total ratings
Read the reviews
Close
Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

UPm 2/5-GE (10m) - 1.5 HP single-phase submersible electric pump with float switch
  • Use dot instead of comma

Loading

Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description

The UPm 2/5-GE submersible electric pump from Pedrollo 's UP series has a flow rate ranging from 10 to 80 litres per minute and a head ranging from 40 to 80 metres.

The engine has a power of 1.5 HP.

It can pump clean water and chemically non-aggressive liquids for components with a sand content of up to 150 grams per cubic meter.

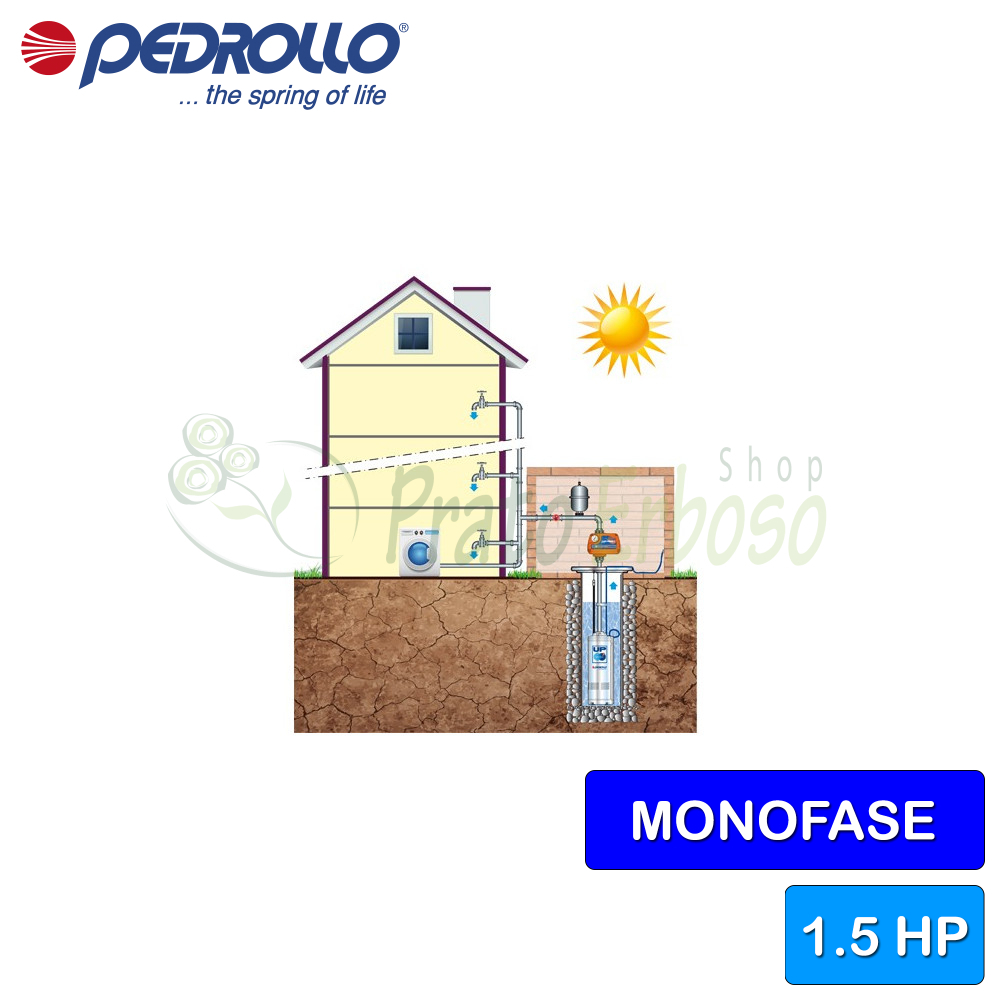

The UPm 2/5-GE is particularly recommended for water distribution in conjunction with pressure tanks, for irrigation of vegetable gardens and gardens and for pressure boosting.

It can be up to 20 meters below water level with the appropriate length cable.

Pedrollo used AISI 304 and 431 stainless steel which give it strength and solidity and allow it to last over time.

Data sheet
Pedrollo
UPm 2/5-GE 10m
7 Items
48SP2125A1U
Motor connection
SINGLE-PHASE
Power (Kw)
1.1
Power (HP)
1.5
Absorption at 230V (A)
7.6
Capacitor
25 µF 450 VL
Delivery mouth
1" 1/4
Pump body
AISI 304 stainless steel
Impeller
Noryl
Number of impellers
5
Crankshaft
AISI 431 stainless steel
Check valve
No
Degree of protection
IP 68
Minimum flow rate (l./min.)
10
Max. flow rate (l./min.)
80
Min. head (m.)
40
Max. head (m.)
80
Cable length (m.)
10
Max. liquid temperature (°C)
+40°C
Height (cm)
50.9
External diameter (cm)
15
Weight (Kg)
16.4
Warranty (years)
2
Attachments

UP technical sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo UP series pumps.

file_download Download (2.03MB)

Buy it with

  • UPm 2/5-GE (10m) - 1.5 HP single-phase submersible electric pump with float switch
  • +
  • PRESFLO MULTI - Electronic pressure regulator
  • +
  • 8 VT - vertical Tank 8 litres
  • +
  • VR 1.25 - 1 1/4 "non-return valve
  • +
  • GSR 1.25 - 1 1/4" MF union fitting
  • €652.26-10 %
    Total price: €587.03
GE UPm models and performance
TYPE
three phase
UPm 2/2-GE
UPm 2/3-GE
UPm 2/4-GE
UPm 2/5-GE
UPm 2/6-GE
UPm 4/3-GE
UPm 4/4-GE
UPm 4/5-GE
UPm 4/6-GE
UPm 8/3-GE
UPm 8/4-GE
POWER
KWHP
0.370.50
0.550.75
0.751
1.11.5
1.52
0.550.75
0.751
1.11.5
1.52
1.11.5
1.52
Construction data UP2
Cutaway of UP pumps
Bearings
Pump side motor bearing6303 2RS - C3
Opposite side engine bearing6203 ZZ - C3E
Tree holding
Type of sealDouble mechanical seal in oil chamber
Engine side modelSTA-17
LM diameter17
LM fixed ringCeramic
LM rotating ringGraphite
LM elastomerNBR
Shrinkage DN1=450 DN2=350ST1-16
LP diameter16
LP fixed ringSilicon carbide
LP rotating ringGraphite
LP elastomerNBR
Materials
2.1 - Seal holder coverStainless steel EN 1.4301 (AISI 304)
3.0 - ImpellerReinforced technopolymer
4.0 - Pump shaftStainless steel EN 1.4057 (AISI 431)
5.1 - DiffuserReinforced technopolymer
5.3 - Diaphragm/Diffuser CoverStainless steel EN 1.4301 (AISI 304)
6.2 - Engine sleeveStainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirtStainless steel EN 1.4301 (AISI 304)
7.3 - Cable coverStainless steel EN 1.4301 (AISI 304)
