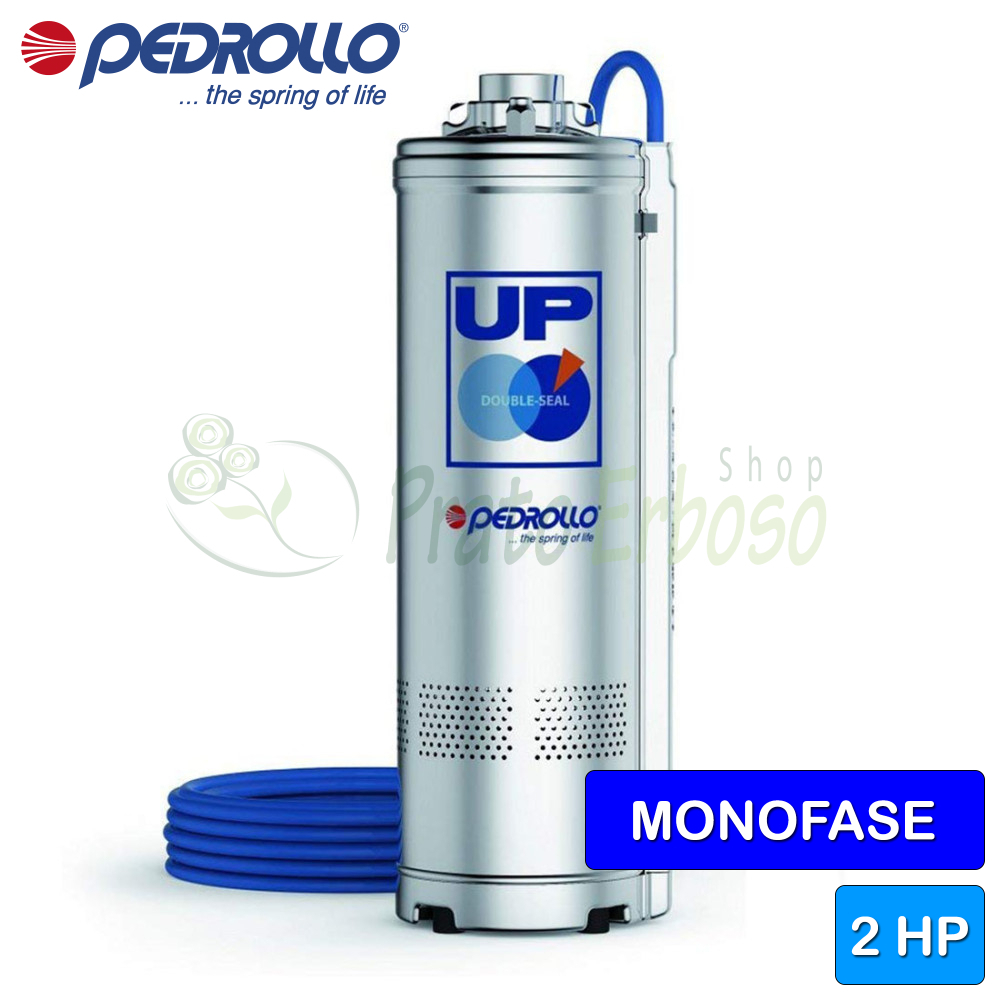

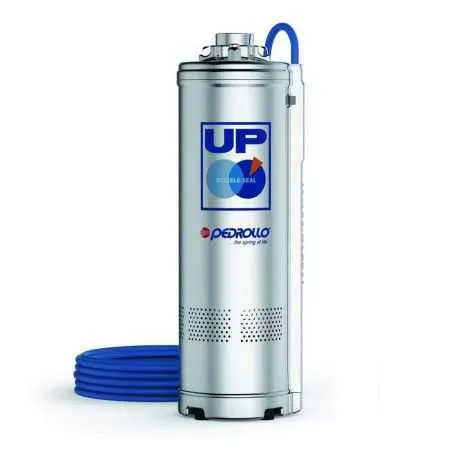

UPm 2/6 (10m) - 2 HP single-phase submersible electric pump

Name: UPm 2/6 (10m) - 2 HP single-phase submersible electric pump
Brand: Pedrollo
SKU: UPm 2/6 10m
Price: 409.7 EUR
Availability: InStock

Flow rate up to 80 l/min (4.8 m³/h). Head up to 97 m. 1.5 kW (2 HP) motor. 10 m cable.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The UPm 2/6 submersible electric pump from Pedrollo 's UP series stands out for its reliability.

The implemented technical solutions prevent the electric pump from blocking even after long periods of inactivity.

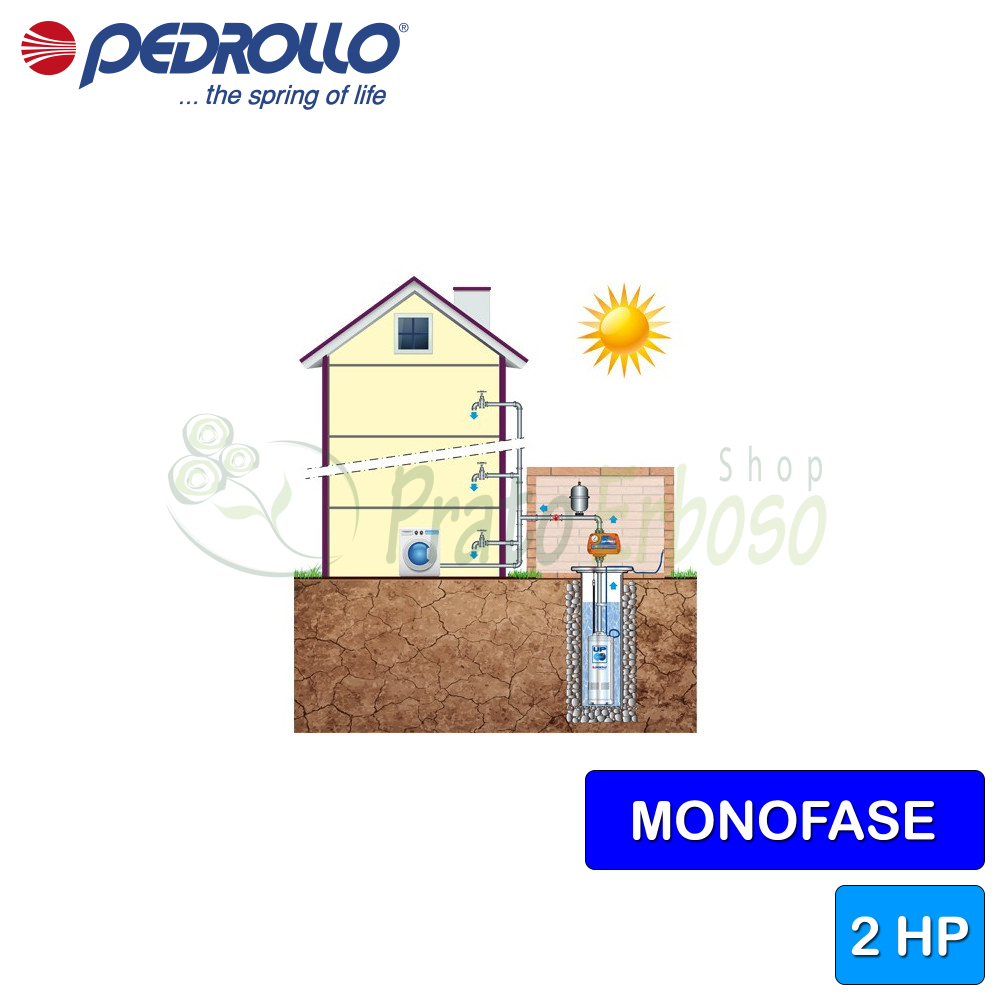

Perfect for domestic installations but also for civil and agricultural ones.

The UPm 2/6 can pump clean water with a maximum content of 150 grams per cubic meter of sand.

It has a power of 2 HP. The flow rate varies from 10 to 80 liters per minute and the head from 48 to 97 meters.

Installation can be done both horizontally and vertically.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 1.5
Power (HP): 2
Absorption at 230V (A): 8.8
Capacitor: 35 µF 450 VL
Delivery mouth: 1" 1/4
Pump body: AISI 304 stainless steel
Impeller: Noryl
Number of impellers: 6
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 68
Minimum flow rate (l./min.): 10
Max. flow rate (l./min.): 80
Min. head (m.): 48
Max. head (m.): 97
Cable length (m.): 10
Jobs: water supply, pressurization systems, irrigation
Max. liquid temperature (°C): +40°C
Height (cm): 55.6
External diameter (cm): 15
Weight (Kg): 18
Warranty (years): 2

Attachments

UP technical sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo UP series pumps.

Download (2.03MB)

UPm models and performance

TYPE

three phase

UPm 2/2

UPm 2/3

UPm 2/4

UPm 2/5

UPm 2/6

UPm 4/3

UPm 4/4

UPm 4/5

UPm 4/6

UPm 8/3

UPm 8/4

POWER
KW	HP
0.37	0.50
0.55	0.75
0.75	1
1.1	1.5
1.5	2
0.55	0.75
0.75	1
1.1	1.5
1.5	2
1.1	1.5
1.5	2

IMPELLERS
number
2
3
4
5
6
3
4
5
6
3
4

PERFORMANCES
Q liters/min	H meters
10 ÷ 80	33 ÷ 17
10 ÷ 80	48 ÷ 23
10 ÷ 80	63÷31
10 ÷ 80	81 ÷ 40
10 ÷ 80	95 ÷ 48
20 ÷ 120	40 ÷ 12
20 ÷ 120	53 ÷ 16
20 ÷ 120	67 ÷ 20
20 ÷ 120	80 ÷ 24
40 ÷ 180	40 ÷ 9
40 ÷ 180	52 ÷ 12

MOUTH
DN
1 1/4"

Q	m³/hour	0	0.6	1.2	2.4	3.6	4.8	6.0	7.2	8.4	9.6	10.8
Q	l/min	0	10	20	40	60	80	100	120	140	160	180
H	meters	33	32	31	28	23.5	17
		48	46	44.5	40.5	33.5	23
		63	61	59	57	54	45	31
		81	79	75.5	68.5	48
		95	93	90	82	68.5	48
		40	-	39	37	33	28	20.5	12
		53	-	52	49	44	37	27.5	16
		67	-	65	61.5	55	46.5	34	20
		80	-	78	74	66	56	41	24
		40	-	-	39	37.5	35.2	32	27.8	22.2	16	9
		52	-	-	51	49.2	46.5	42	36.5	29.5	21.2	12

Construction data UP2

Bearings

Pump side motor bearing	6303 2RS - C3
Opposite side engine bearing	6203 ZZ - C3E

Tree holding

Type of seal	Double mechanical seal in oil chamber
Engine side model	STA-17
LM diameter	17
LM fixed ring	Ceramic
LM rotating ring	Graphite
LM elastomer	NBR
Shrinkage DN1=450 DN2=350	ST1-16
LP diameter	16
LP fixed ring	Silicon carbide
LP rotating ring	Graphite
LP elastomer	NBR

Materials

2.1 - Seal holder cover	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
5.1 - Diffuser	Reinforced technopolymer
5.3 - Diaphragm/Diffuser Cover	Stainless steel EN 1.4301 (AISI 304)
6.2 - Engine sleeve	Stainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
7.3 - Cable cover	Stainless steel EN 1.4301 (AISI 304)
