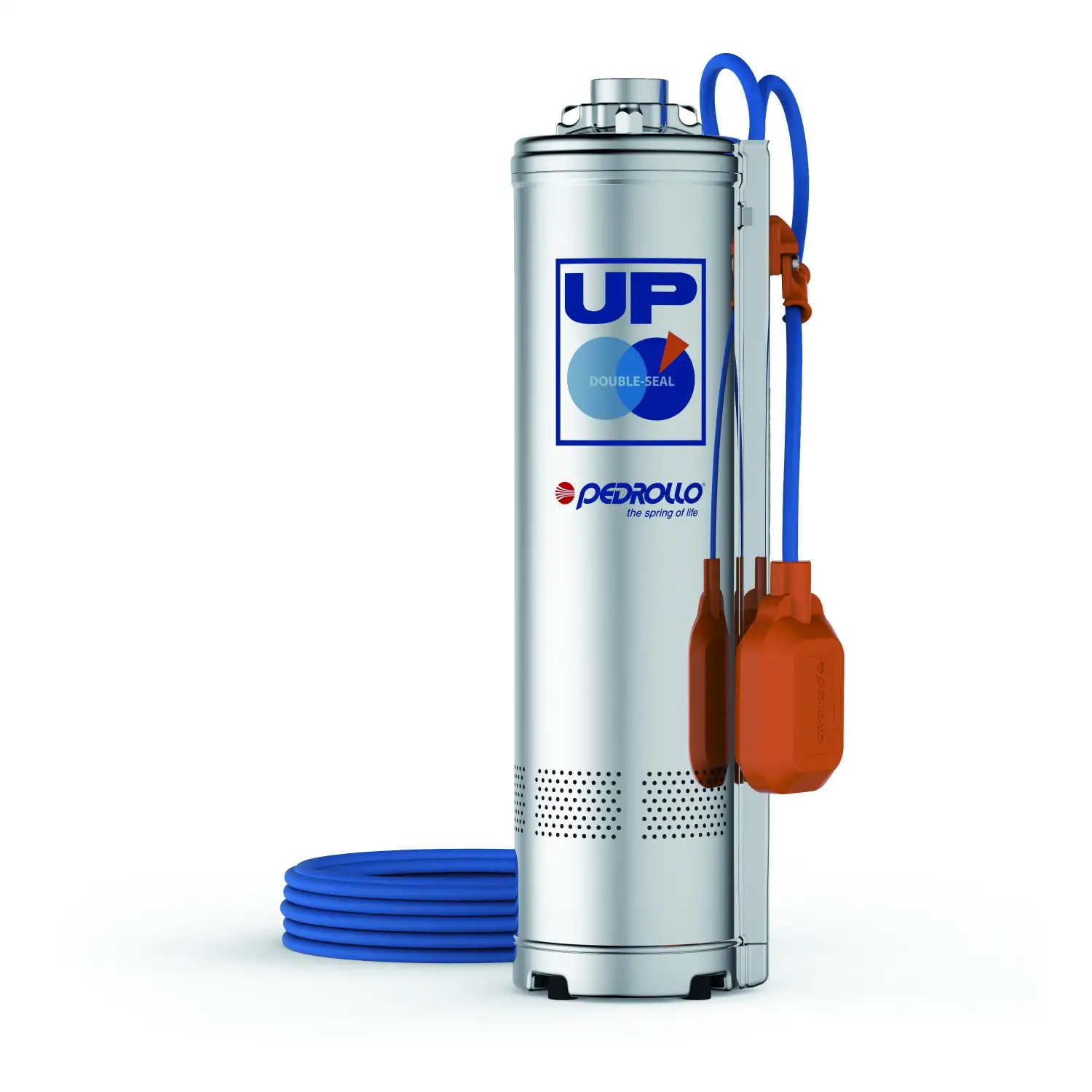

UPm 4/3-GE (10m) - 0.75 HP single-phase submersible electric pump with float switch
Flow rate up to 120 l/min (7.2 m³/h). Head up to 40 m. 0.55 kW (0.75 HP) motor. 10 m cable.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The UPm 4/3-GE submersible electric pump from Pedrollo 's UP series boasts innovative technical solutions that prevent the electric pump from blocking even after long periods of inactivity.

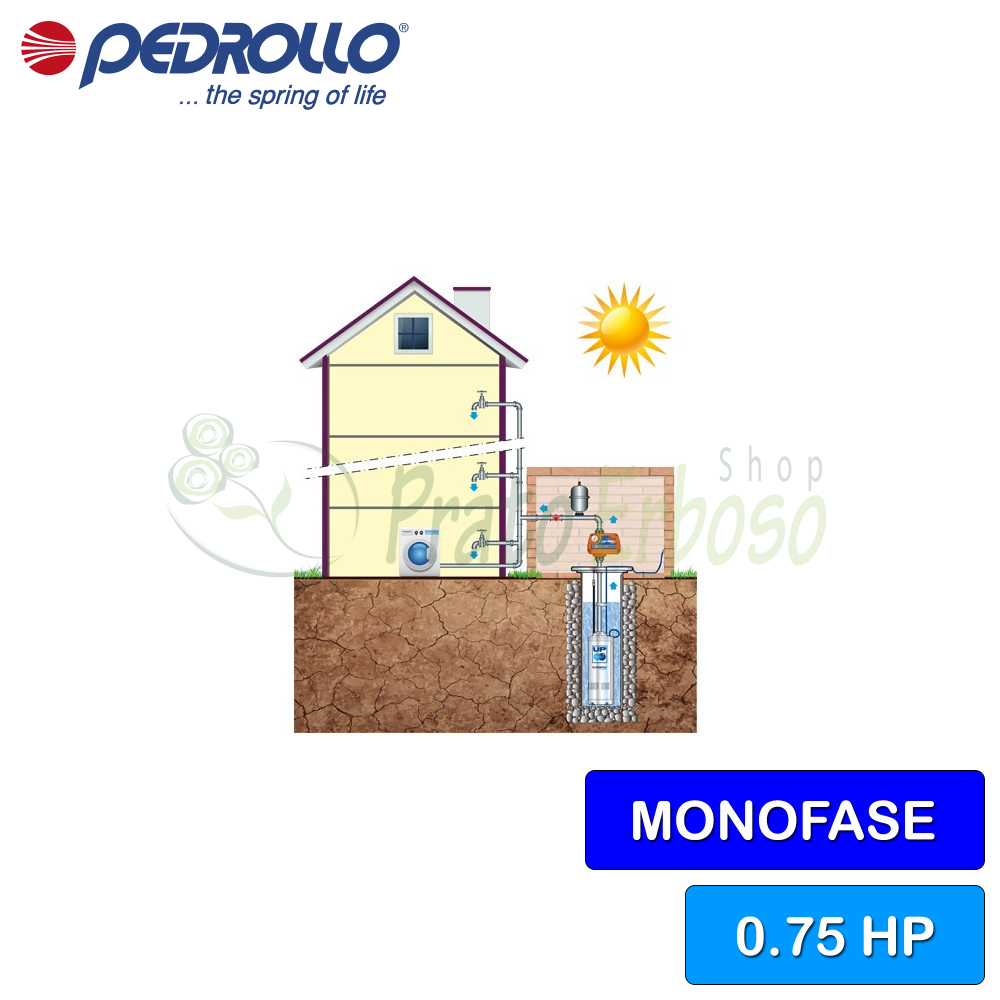

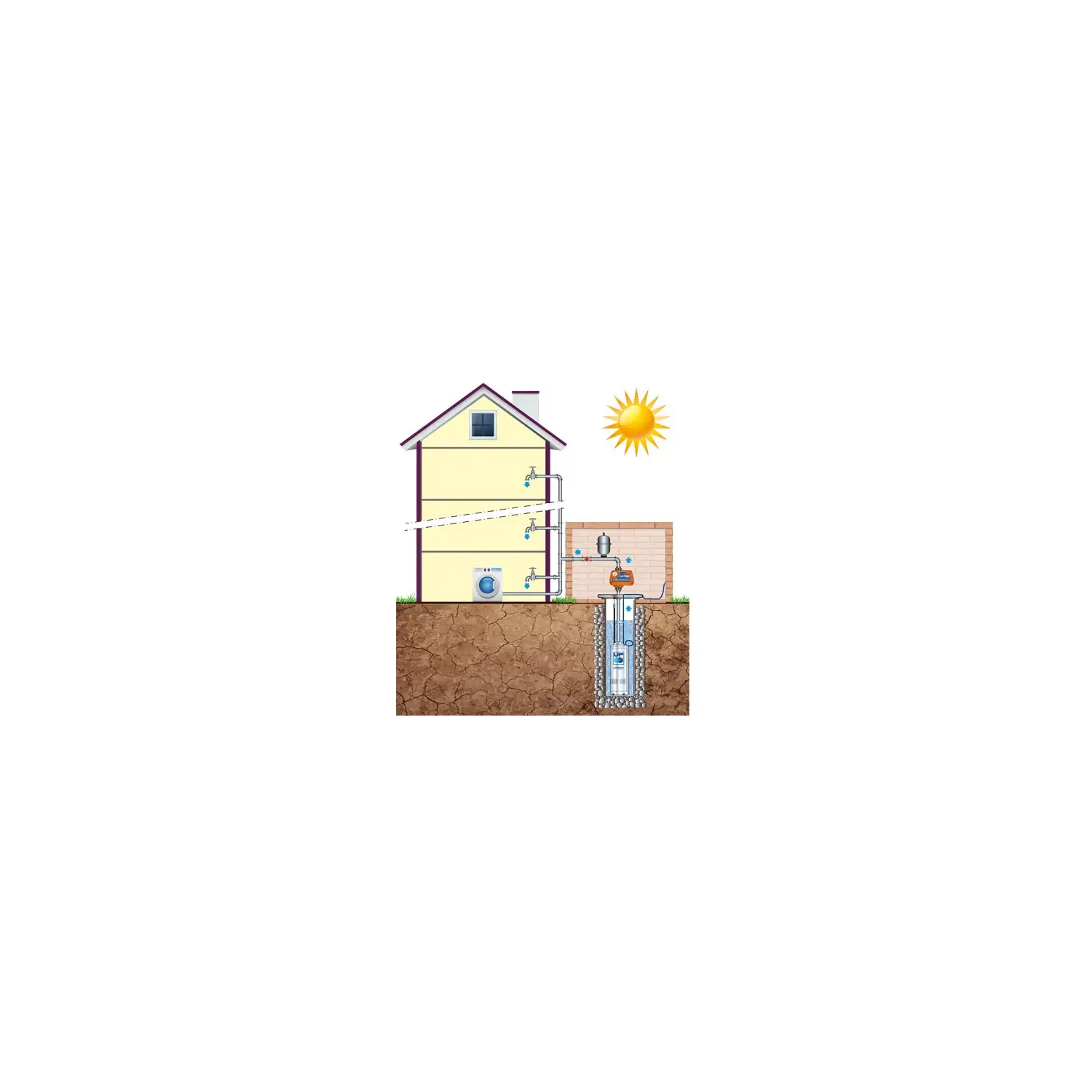

Recommended for activities such as water distribution in conjunction with pressure tanks, for irrigation of vegetable gardens and gardens and for increasing pressure.
The UPm 4/3-GE has a power of 0.75 horsepower. The flow rate varies from 20 to 120 liters per minute and the head from 12 to 40 meters.
It can be installed both horizontally and vertically up to 20 metres below water level.
It can tolerate a quantity of sand up to 150 grams per cubic meter of sand.
The use of AISI 431 and 304 stainless steel gives the electric pump solidity and robustness.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 5.0
- Capacitor
- 16 µF 450 VL
- Delivery mouth
- 1" 1/4
- Pump body
- AISI 304 stainless steel
- Impeller
- Noryl
- Number of impellers
- 3
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 12
- Max. head (m.)
- 40
- Cable length (m.)
- 10
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 42.5
- External diameter (cm)
- 15
- Weight (Kg)
- 12.9
- Warranty (years)
- 2
GE UPm models and performance
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data UP2
Bearings
| Pump side motor bearing | 6303 2RS - C3 |
| Opposite side engine bearing | 6203 ZZ - C3E |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| Engine side model | STA-17 |
| LM diameter | 17 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | ST1-16 |
| LP diameter | 16 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 2.1 - Seal holder cover | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.3 - Diaphragm/Diffuser Cover | Stainless steel EN 1.4301 (AISI 304) |
| 6.2 - Engine sleeve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
