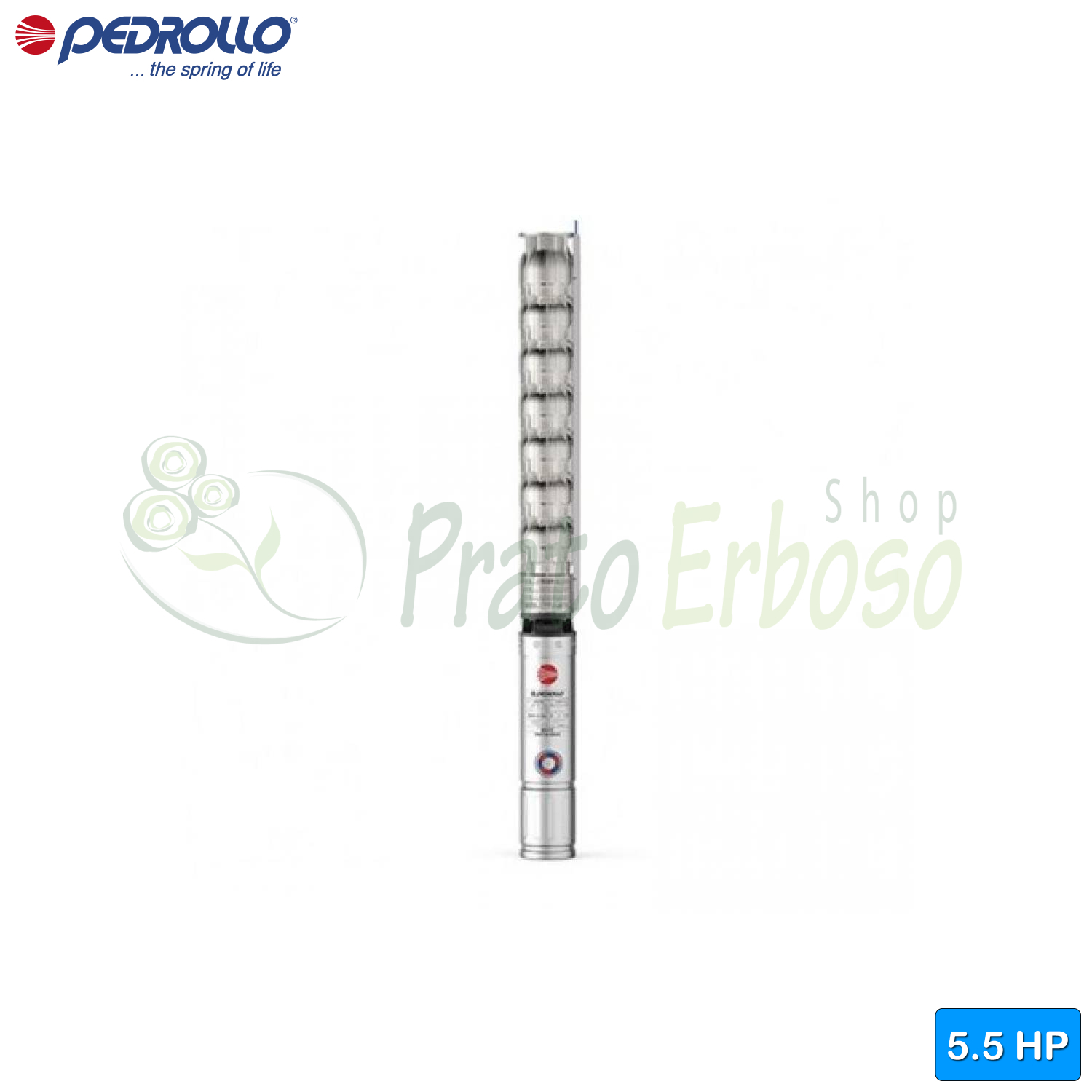

6HR 34/3 - HYD - 800 litre submersible pump

Pedrollo
6HR 34/3 - HYD
496H3403WI5

HYDRAULIC PART. WITHOUT MOTOR.

Flow rate up to 800 l/min (48 m³/h). Head up to 40 metres.

  • Telephone support for information before purchasing.
  • Reinforced packaging to reduce transport damage.
  • After-sales assistance for product installation.
  • Original replacement
Description

The Pedrollo 6HR 34/3 HYD pump consists of only the impeller part, without the motor.

The 6HR 34/3 HYD can be fitted to any 5.5 HP engine.

The 6HR 34/3 - HYD pump is recommended for pumping clean water with a sand content not exceeding 100 grams per cubic metre.

It has a flow rate that varies from 100 to 800 litres per minute with a head of 19 to 40 metres.

Due to its high performance and reliability, it is suitable for use in the civil, agricultural and industrial fields, for the distribution of water in conjunction with pressure tanks, for irrigation, for pressure raising, for fire-fighting systems.

The pump body is made of micro-cast AISI 304 stainless steel.

Original spare part for 6HR 34/3.

Data sheet
Pedrollo
6HR 34/3 - HYD
496H3403WI5
Power (HP)
5.5
Pump body
AISI 304 stainless steel
Impeller
AISI 304 stainless steel
Number of impellers
3
Pump shaft
AISI 304 stainless steel
Minimum flow rate (l./min.)
100
Max. flow rate (l./min.)
800
Min. head (m.)
19
Max. head (m.)
40
Delivery mouth
3"
Height (cm)
58.1
External diameter (cm)
15
Warranty (years)
2
Attachments

6HR data sheet

Construction and operating characteristics. Work curves, limits of use and dimensions of the Pedrollo 6HR series pumps.

file_download Download (1.37MB)

Data sheet

Engine and mechanical performance

Power (HP)
5.5

Pump components and construction

Pump body
AISI 304 stainless steel
Impeller
AISI 304 stainless steel
Number of impellers
3
Pump shaft
AISI 304 stainless steel

Hydraulic performance and filtration

Minimum flow rate (l./min.)
100
Max. flow rate (l./min.)
800
Min. head (m.)
19
Max. head (m.)
40

Installation and connections

Delivery mouth
3"

Dimensions and weight

Height (cm)
58.1
External diameter (cm)
15

Packaging, maintenance, and warranty

Warranty (years)
2

Buy it with

  • 6HR 34/3 - HYD - 800 litre submersible pump
  • +
  • 6PD/5.5 - 6" 5.5 HP three-phase rewindable motor
  • +
  • EASYPRESS-BLU - Electronic pressure regulator
  • €1,676.59-10 %
    Total price: €1,508.93
